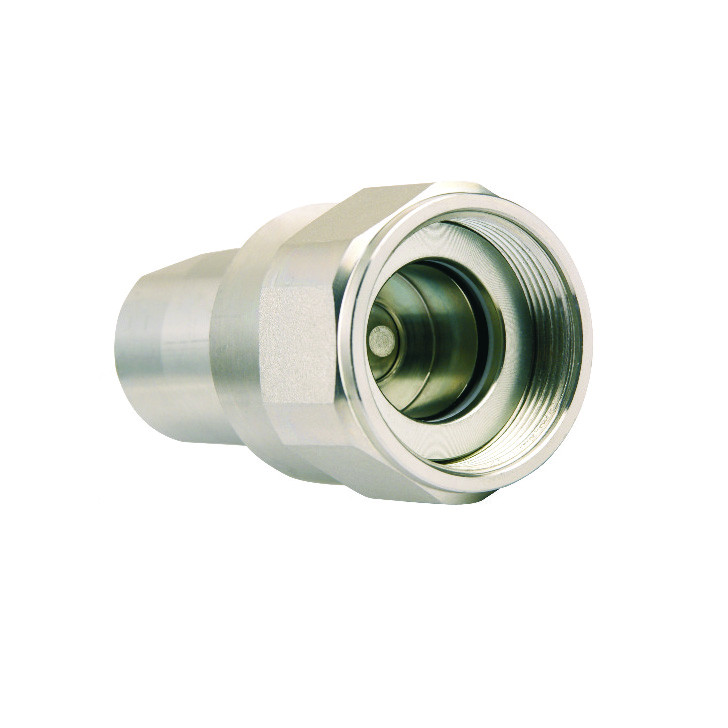

EH 89 Series - W6000 Screw To Connect Quick Couplings For High Pressure (Steel)
group name10,000 PSI High Pressure Quick Couplers
-
Min Order1 piece
brand nameEH
-
update timeSat, 06 Dec 2025 22:23:18 GMT
Paramtents
Interchange DNP PVG1 SERIES
Interchange GROMELLE W6000 SERIES
Interchange INTEVA TGW SERIES
Interchange VOSWINKEL HB SERIES
Interchange EATON W6000 SERIES
Interchange STAUFF HB SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with DNP PVG1 SERIES, GROMELLE W6000 SERIES, INTEVA TGW SERIES, VOSWINKEL HB SERIES, EATON W6000 SERIES, and STAUFF HB SERIES. Steel Product. High-pressure screw-on couplings engineered for extreme working conditions with frequent pressure spikes. The heavy-duty internal construction ensures optimal safety and reliability. Market Interchange.
Detailed
89 Series
High Pressure Screw-To-Connect Coupling (Steel)
Poppet Valve
This EH series is interchangeable with DNP PVG1 SERIES, GROMELLE W6000 SERIES, INTEVA TGW SERIES, VOSWINKEL HB SERIES, EATON W6000 SERIES, and STAUFF HB SERIES. High-pressure screw-on couplings engineered for extreme working conditions with frequent pressure spikes. The heavy-duty internal construction ensures optimal safety and reliability. Market Interchange.
Female
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | CH1(mm) | Hs(mm) | Ls(mm) | L(mm) | T |
| HFSFC8914-1/4" | 1/4'' | 32 | 19 | 59 | 72 | 1/4"BSPP/NPT |
HFSFC8938-3/8" | 3/8'' | 36 | 22 | 66.5 | 81.5 | 3/8"BSPP/NPT |
| HFSFC8912-1/2" | 1/2'' | 41 | 27 | 76.5 | 98 | 1/2"BSPP/NPT |
HFSFC8934-3/4" | 3/4'' | 50 | 35 | 89.5 | 112 | 3/4"BSPP/NPT |
HFSFC8910-1" | 1'' | 65 | 41 | 105.5 | 132.5 | 1"BSPP/NPT |
Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | A(mm) | Hp(mm) | Lp(mm) | L(mm) | T |
| HFSFP8914-1/4" | 1/4'' | 15 | 19 | 36 | 72 | 1/4"BSPP/NPT |
| HFSFP8938-3/8" | 3/8'' | 19 | 22 | 40.5 | 81.5 | 3/8"BSPP/NPT |
HFSFP8912-1/2" | 1/2'' | 22 | 27 | 49.5 | 98 | 1/2"BSPP/NPT |
HFSFP8934-3/4" | 3/4'' | 29 | 35 | 56 | 112 | 3/4"BSPP/NPT |
HFSFP8910-1" | 1'' | 36 | 41 | 66 | 132.5 | 1"BSPP/NPT |
