EH 97 Series - A-HP ISO 16028 Flat Face High Pressure Quick Coupler (Steel)
group nameFlat Face ISO 16028 Quick Couplers
-
Min Order1 piece
brand nameEH
-
update timeFri, 05 Dec 2025 18:44:50 GMT
Paramtents
Interchange PARKER FH SERIES
Interchange STUCCHI A-HP SERIES
Interchange CEJN 265 SERIES
Interchange FASTER FFHP SERIES
Interchange DNP PLT7 SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with PARKER FH SERIES, STUCCHI A-HP SERIES, CEJN 265 SERIES, FASTER FFHP SERIES, and DNP PLT7 SERIES. Steel Product. Engineered for extreme hydraulic systems, these 72 MPa-rated couplings deliver uncompromising performance in critical high-pressure applications. To ensure operational safety, this series is intentionally incompatible with standard ISO 16028 or low/medium-pressure flat-face couplings, preventing risky cross-connections. Instead, it pairs exclusively with dedicated high-pressure counterparts available on the market. An innovative rotating sleeve on the female half automatically engages post-connection, providing a fail-safe lock against accidental disengagement under pressure.
Detailed
97 Series
Flat/Flush Face Coupling (Steel)-10,000 PSI Pressure
This EH series is interchangeable with PARKER FH SERIES, STUCCHI A-HP SERIES, CEJN 265 SERIES, FASTER FFHP SERIES, and DNP PLT7 SERIES. Engineered for extreme hydraulic systems, these 72 MPa-rated couplings deliver uncompromising performance in critical high-pressure applications. To ensure operational safety, this series is intentionally incompatible with standard ISO 16028 or low/medium-pressure flat-face couplings, preventing risky cross-connections. Instead, it pairs exclusively with dedicated high-pressure counterparts available on the market. An innovative rotating sleeve on the female half automatically engages post-connection, providing a fail-safe lock against accidental disengagement under pressure.

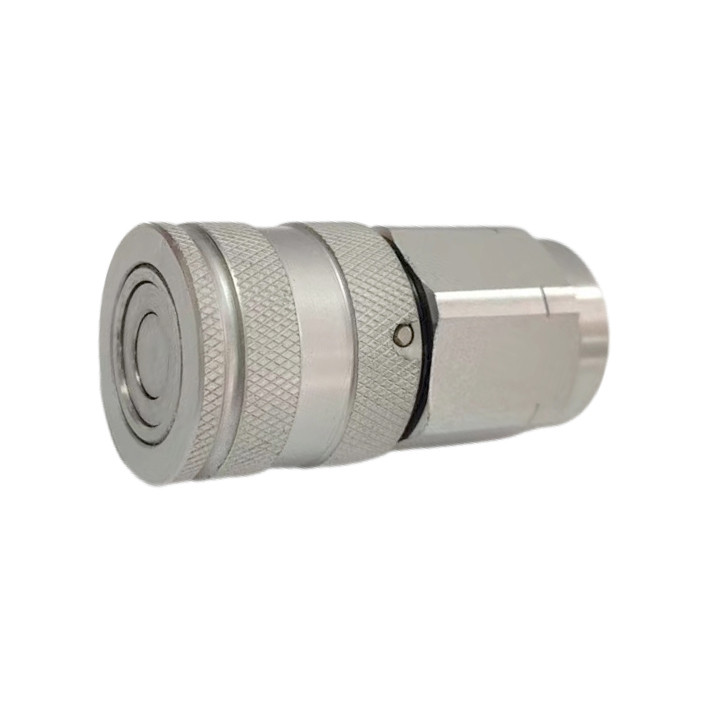

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC9714-1/4" NPT | 1/4'' | 48 | 28 | S22 | 1/4" NPT |
HFSFC9714-1/4" BSPP | 1/4'' | 48 | 28 | S22 | 1/4" BSPP |
HFSFC9714-9/16" UNF | 1/4'' | 48 | 28 | S22 | 9/16" UNF-18 |
HFSFC9714-3/8" NPT | 1/4'' | 48 | 28 | S22 | 3/8" NPT |
HFSFC9714-3/8" BSPP | 1/4'' | 48 | 28 | S22 | 3/8" BSPP |
HFSFC9738-3/8" BSPP | 3/8'' | 64.5 | 32 | S27 | 3/8" BSPP |
HFSFC9738-3/8" NPT | 3/8'' | 64.5 | 32 | S27 | 3/8" NPT |
HFSFC9738-3/4" UNF | 3/8'' | 69.5 | 32 | S27 | 3/4" UNF-16 |
Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP9714-1/4" NPT | 1/4'' | 50 | S22 | 1/4" NPT |
HFSFP9714-1/4" BSPP | 1/4'' | 50 | S22 | 1/4" BSPP |
HFSFP9714-9/16" UNF | 1/4'' | 50 | S22 | 9/16" UNF-18 |
HFSFP9714-3/8" NPT | 1/4'' | 52 | S22 | 3/8" NPT |
HFSFP9714-3/8" BSPP | 1/4'' | 52 | S22 | 3/8" BSPP |
HFSFP9738-3/8" BSPP | 3/8'' | 60 | S27 | 3/8" BSPP |
HFSFP9738-3/8" NPT | 3/8'' | 60 | S27 | 3/8" NPT |
HFSFP9738-3/4" UNF | 3/8'' | 63 | S27 | 3/4" UNF-16 |
