EH 278 Series - 3CFPV Push-Pull Female Couplers for Agriculture Connectable with Male Half Under Residual Pressure (Steel)
group nameISO 7241-A Quick Couplers
-
Min Order1 piece
brand nameEH
-
update timeFri, 05 Dec 2025 23:21:59 GMT
Paramtents
Interchange FASTER 3CFPV SERIES
Interchange PARKER RSD SERIES
Interchange DNP PPK3 SERIES
Interchange STAUFF UX SERIES
Interchange VOSWINKEL UX SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with FASTER 3CFPV SERIES, PARKER RSD SERIES, DNP PPK3 SERIES, STAUFF UX SERIES, and VOSWINKEL UX SERIES. Steel Product. Designed for direct installation into valve ports or rigid piping systems, this coupling series meets stringent ISO 7241-1 Series A standards while incorporating critical safety features. The innovative breakaway function provides essential protection against equipment damage by automatically disconnecting the male coupling component when subjected to accidental tractor pull forces, effectively preventing hose rupture. This safety mechanism ensures operational reliability in demanding agricultural and industrial applications where unexpected tension may occur. Max Flow rate is 200 L/min.
Detailed
278 Series
Hydraulic Quick Coupling (Steel)
ISO-7241-A, Poppet Valve, Pressure Eliminator On Male Side Only
This EH series is interchangeable with FASTER 3CFPV SERIES, PARKER RSD SERIES, DNP PPK3 SERIES, STAUFF UX SERIES, and VOSWINKEL UX SERIES. Steel Product. Designed for direct installation into valve ports or rigid piping systems, this coupling series meets stringent ISO 7241-1 Series A standards while incorporating critical safety features. The innovative breakaway function provides essential protection against equipment damage by automatically disconnecting the male coupling component when subjected to accidental tractor pull forces, effectively preventing hose rupture. This safety mechanism ensures operational reliability in demanding agricultural and industrial applications where unexpected tension may occur. Max Flow rate is 200 L/min.
Female
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Standard Type | D(mm) | Hs(mm) | Ls(mm) | T |
HFSFC27812-1/2G | 1/2'' | DIN 3852-2 | 38 | 27 | 107.2 | 1/2" BSPP |
HFSFC27812 -1/2NPT | 1/2'' | DIN 3852-2 | 38 | 27 | 107.2 | 1/2" NPT |
HFSFC27812 -3/4UNF | 1/2'' | SAE J 1926-1 | 38 | 32 | 107.2 | 3/4"-16UNF-2B |
HFSFC27812 -7/8UNF | 1/2'' | SAE J 1926-1 | 38 | 32 | 107.2 | 7/8"-14UNF-2B |
HFSMC27812 -M18X1.5 | 1/2'' | ISO 8434-1-L | 38 | 32 | 113.2 | M18X1.5-12L |
HFSMC27812 -M22X1.5 | 1/2'' | ISO 8434-1-L | 38 | 32 | 113.2 | M22X1.5-15L |
HFSMC27812 -M20X1.5 | 1/2'' | ISO 8434-1-S | 38 | 32 | 113.2 | M20X1.5-12S |
HFSMC27812 -M24X1.5 | 1/2'' | ISO 8434-1-S | 38 | 32 | 113.2 | M24X1.5-16S |
HFSMC27812 -3/4UNF | 1/2'' | ISO 11926-3 | 38 | 32 | 131.5 | 3/4"-16UNF-2A |
HFSMC27812 -7/8UNF | 1/2'' | ISO 11926-3 | 38 | 32 | 133.5 | 7/8"-14UNF-2A |
HFSMC27812 -3/4UNF | 1/2'' | ISO 8434-2 | 38 | 32 | 131.5 | 3/4"-16UNF-2A |
HFSMC27812 -7/8UNF | 1/2'' | ISO 8434-2 | 38 | 32 | 133.5 | 7/8"-14UNF-2A |
HFSMC27812 -M22X1.5 | 1/2'' | DIN 7463 | 38 | 32 | 133.5 | M22X1.5 |

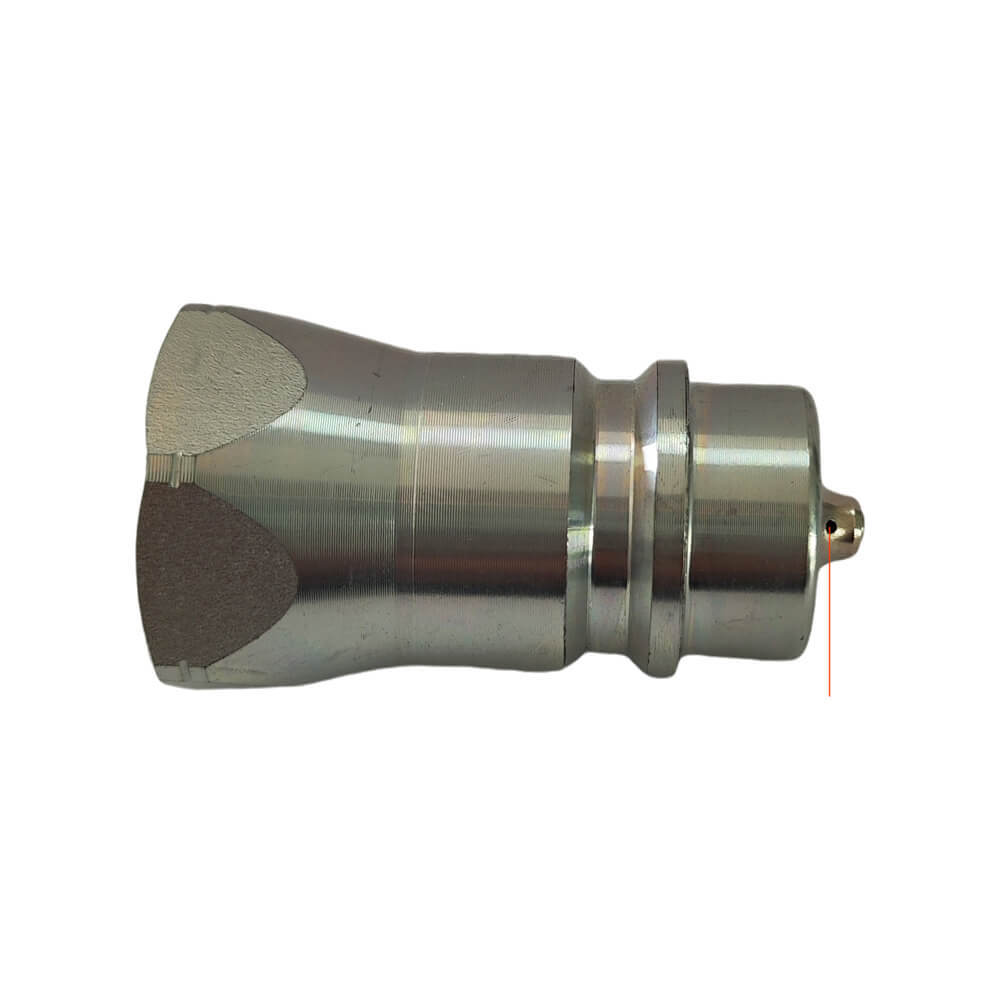

Male
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP26612-1/2" | 1/2'' | 44 | S27 | 1/2''BSPP (NPT) |
| HFSFP26612-3/4UNF | 1/2'' | 44 | S27 | 3/4"-16UNF-2B |
HFSFP26612-7/8UNF | 1/2'' | 44 | S27 | 7/8"-14UNF-2B |
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP27512-1/2" | 1/2'' | 44 | S27 | 1/2''BSPP (NPT) |
| HFSFP27512-3/4UNF | 1/2'' | 44 | S27 | 3/4"-16UNF-2B |
HFSFP27512-7/8UNF | 1/2'' | 44 | S27 | 7/8"-14UNF-2B |
