EH 295 Series - 3FFH ISO 16028 Flat Face Quick Couplings - Connection Under Pressure (Steel)
group nameFlat Face ISO 16028 Quick Couplers
-
Min Order1 piece
brand nameEH
-
update timeFri, 05 Dec 2025 15:22:44 GMT
Paramtents
Interchange STUCCHI A-HD SERIES
Interchange PARKER FEM SERIES
Interchange FASTER 3FFH SERIES
Interchange VOSWINKEL FH SERIES
Interchange VOSWINKEL FF SERIES
Interchange VOSWINKEL FU SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with STUCCHI A-HD SERIES, PARKER FEM SERIES, FASTER 3FFH SERIES, VOSWINKEL FH SERIES, VOSWINKEL FF SERIES, and VOSWINKEL FU SERIES. Steel Product. These ISO 16028-compliant flat face couplings are engineered for demanding hydraulic applications, featuring a robust 35 MPa (5076 psi) working pressure rating and durable zinc-nickel plating for superior corrosion resistance. The innovative design allows safe connection under residual pressure conditions with multiple configuration options.
Detailed

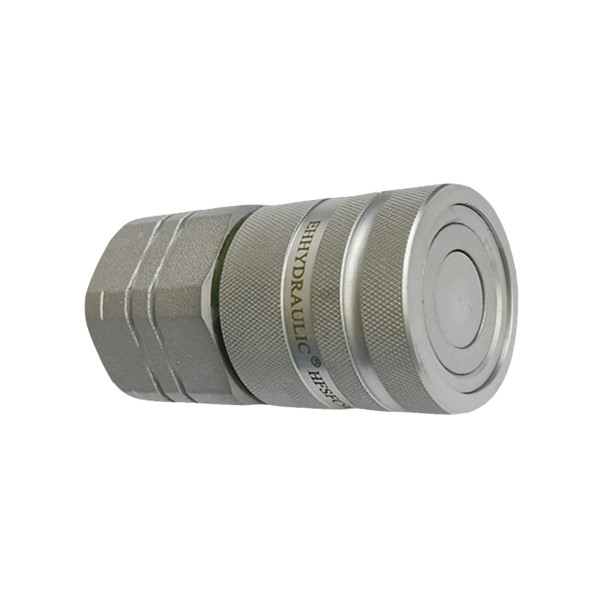

295 Series
Flat Face Coupling (Steel)
ISO-16028 Standard, Connect Under Pressure, Female Coupler
This EH series is interchangeable with STUCCHI A-HD SERIES, PARKER FEM SERIES, FASTER 3FFH SERIES, VOSWINKEL FH SERIES, VOSWINKEL FF SERIES, and VOSWINKEL FU SERIES. These ISO 16028-compliant flat face couplings are engineered for demanding hydraulic applications, featuring a robust 35 MPa (5076 psi) working pressure rating and durable zinc-nickel plating for superior corrosion resistance. The innovative design allows safe connection under residual pressure conditions with multiple configuration options.
Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC29538-3/8"NPT | 3/8'' | 69 | 32 | S30 | 3/8"NPT |
| HFSFC29538-1/2"NPT | 3/8'' | 70 | 32 | S30 | 1/2"NPT |
HFSFC29538-3/8"G | 3/8'' | 69 | 32 | S30 | 3/8"BSPP |
HFSFC29538-1/2"G | 3/8'' | 70 | 32 | S30 | 1/2"BSPP |
HFSFC29538-3/4"UNF | 3/8'' | 70 | 32 | S30 | 3/4"UNF-16 |
HFSFC29512-1/2"NPT | 1/2'' | 77.5 | 38 | S36 | 1/2"NPT |
HFSFC29512-3/4"NPT | 1/2'' | 84 | 38 | S36 | 3/4"NPT |
HFSFC29512-1/2"G | 1/2'' | 77.5 | 38 | S36 | 1/2"BSPP |
HFSFC29512-3/4"G | 1/2'' | 84 | 38 | S36 | 3/4"BSPP |
HFSFC29512-7/8"UNF | 1/2'' | 77.5 | 38 | S36 | 7/8"UNF-14 |
HFSFC29512 -1-1/16"UN | 1/2'' | 84 | 38 | S36 | 1-1/16"UN-12 |
HFSFC29558-3/4"NPT | 5/8'' | 87 | 42 | S41 | 3/4"NPT |
HFSFC29558 -1-1/16"UN | 5/8'' | 87 | 42 | S41 | 1-1/16"UN-12 |
HFSFC29534-3/4"NPT | 3/4'' | 95.8 | 48 | S46 | 3/4"NPT |
HFSFC29534-3/4"G | 3/4'' | 95.8 | 48 | S46 | 3/4"BSPP |
HFSFC29534-1"NPT | 3/4'' | 98.8 | 48 | S46 | 1"NPT |
HFSFC29534-1"G | 3/4'' | 98.8 | 48 | S46 | 1"BSPP |
HFSFC29534 -1-1/16"UN | 3/4'' | 98.8 | 48 | S46 | 1-1/16"UN-12 |
HFSFC29534 -1-5/16"UN | 3/4'' | 98.8 | 48 | S46 | 1-5/16"UN-12 |
HFSFC29510-1"NPT | 1'' | 104.5 | 55 | S55 | 1"NPT |
HFSFC29510-1"G | 1'' | 104.5 | 55 | S55 | 1"BSPP |
HFSFC29510 -1-1/4"NPT | 1'' | 105.5 | 55 | S55 | 1-1/4"NPT |
HFSFC29510-1-1/4"G | 1'' | 105.5 | 55 | S55 | 1-1/4"BSPP |
HFSFC29510 -1-5/16"UN | 1'' | 105.5 | 55 | S55 | 1-5/16"UN-12 |
HFSFC29510 -1-5/8"UN | 1'' | 105.5 | 55 | S55 | 1-5/8"UN-16 |
