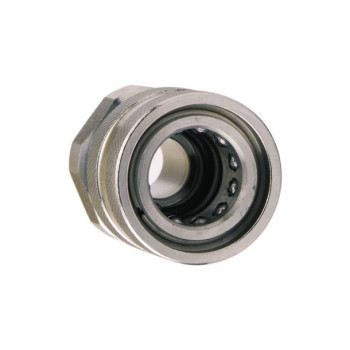

EH 55 Series - HOLMBURY PWS Quick Coupling (AISI 316 Stainless Steel, Brass)
group namePoppet (Interchange) Quick Couplers
-
Min Order1 piece
brand nameEH
-
update timeSat, 06 Dec 2025 18:51:52 GMT
Paramtents
Interchange HOLMBURY PWS SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with HOLMBURY PWS SERIES. Brass / AISI 316 Stainless Steel Product. This series is full flow without valve couplings for applications where maximum flow is required. Its smooth, open bore offers the lowest pressure drop of any quick coupling design. It is ideal for applications such as high-pressure water and steam washers, carpet cleaners, and mold coolant lines, and the transmission of non-hazardous fluids.
Detailed
55 Series

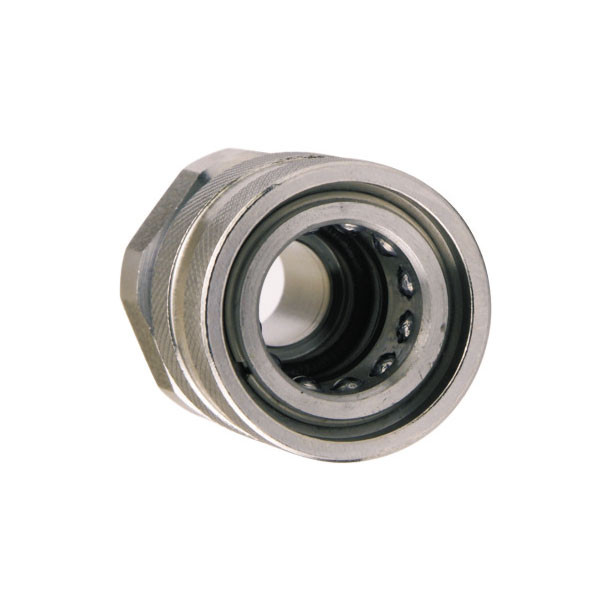

Hydraulic Full Flow Pressure Washer Unvalved Coupling (Brass, AISI 316 Stainless Steel)
This EH series is interchangeable with HOLMBURY PWS SERIES. This series is full flow without valve couplings for applications where maximum flow is required. Its smooth, open bore offers the lowest pressure drop of any quick coupling design. It is ideal for applications such as high-pressure water and steam washers, carpet cleaners, and mold coolant lines, and the transmission of non-hazardous fluids.
Female
| Brass (Material), Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | Hs(mm) | D(mm) | T |
| HFBFC5538-3/8'' | 3/8'' | 41 | S30 | 36 | 3/8"NPT(BSPP) |
| AISI 316 Stainless Steel (Material), Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | Hs(mm) | D(mm) | T |
| HFSSFC5538-3/8'' | 3/8'' | 41 | S30 | 36 | 3/8"NPT(BSPP) |
Male
| Brass (Material), Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFBFP5538-3/8'' | 3/8'' | 38.5 | S22 | 3/8"NPT(BSPP) |
| AISI 316 Stainless Steel (Material), Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSSFP5538-3/8'' | 3/8'' | 38.5 | S22 | 3/8"NPT(BSPP) |
