EHVDHFS Series | KHM Two-Way High Pressure Forged Ball Valve With Flange, SAE J518C, ISO-6162 (Steel)
group nameHigh Pressure Ball Valves
-
Min Order1 piece
brand nameEH
-
update timeFri, 05 Dec 2025 14:52:30 GMT
Paramtents
Interchange MHA MKHP-SAEFS SERIES
Interchange HYDAC KHM-F3/6 SERIES
Interchange GEMELS GBS3 SERIES
Interchange GEMELS GBS6 SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with MHA MKHP-SAEFS SERIES, HYDAC KHM-F3/6 SERIES, GEMELS GBS3 SERIES, and GEMELS GBS6 SERIES. Steel Product. 2-way high-pressure forged ball valve with flange (steel), SAE J518C (ISO-6162) Standard, used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Detailed
EHVDHFS Series
Two-Way High Pressure Forged Ball Valve With Flange (Steel), SAE J518C (ISO-6162) Standard
This EH series is interchangeable with MHA MKHP-SAEFS SERIES, HYDAC KHM-F3/6 SERIES, GEMELS GBS3 SERIES, and GEMELS GBS6 SERIES. Two-way high-pressure forged ball valve with flange (carbon steel) SAE J518C (ISO-6162), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Body Size
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (Inch) | DN | LW(mm) | L(mm) | L1(mm) | L5(mm) | L6(mm) | H(mm) |
EHVDHFS-DN32-210 | 1-1/4'' | 32 | 30 | 231 | 120 | 82 | 87.5 | 168 |
EHVDHFS-DN32-420 | 1-1/4'' | 32 | 30 | 263 | 120 | 82 | 87.5 | 168 |
EHVDHFS-DN40-210 | 1-1/2'' | 40 | 38 | 276 | 130 | 93 | 99 | 179.5 |
EHVDHFS-DN40-420 | 1-1/2'' | 40 | 38 | 326 | 130 | 93 | 99 | 179.5 |
EHVDHFS-DN50-210 | 2'' | 50 | 48 | 272 | 140 | 110 | 115 | 195.5 |
EHVDHFS-DN50-420 | 2'' | 50 | 48 | 356 | 140 | 110 | 115 | 195.5 |
| Other Threads/Fitting Ends Are Available Upon Request | |||||||
| Art. No. | L3(mm) | SW1(mm) | SW2(mm) | T(mm) | d1(mm) | d2(mm) | d3(mm) |
EHVDHFS-DN32-210 | 379 | 17 | 60 | 8 | 43 | 44 | 50.8 |
EHVDHFS-DN32-420 | 408 | 17 | 60 | 10.4 | 43 | 44.6 | 54 |
EHVDHFS-DN40-210 | 400 | 17 | 65 | 8 | 50 | 53.7 | 60.3 |
EHVDHFS-DN40-420 | 450 | 17 | 65 | 12.7 | 50 | 54.1 | 63.5 |
EHVDHFS-DN50-210 | 397 | 17 | 85 | 9.6 | 62 | 62.5 | 71.4 |
EHVDHFS-DN50-420 | 481 | 17 | 85 | 12.7 | 62 | 63.6 | 79.4 |

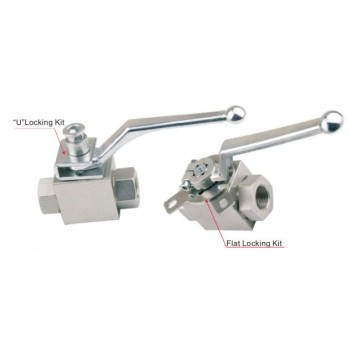

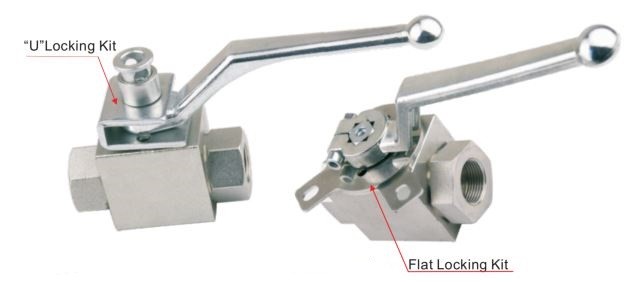

Accessories
