EH 63 Series - HNVN Standard Quick Couplings For Japanese Market (Steel)
group namePoppet (Interchange) Quick Couplers
-
Min Order1 piece
brand nameEH
-
update timeMon, 08 Dec 2025 04:08:04 GMT
Paramtents
Interchange FASTER HNVN SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with the FASTER HNVN SERIES. Steel Product. Standard couplings for industrial applications, interchangeable for the Japanese market.
Detailed
63 Series
Standard Hydraulic Quick Coupling For JAPANESE MARKET (Steel)
Poppet Valve
This EH series is interchangeable with the FASTER HNVN SERIES. Steel Product. Standard couplings for industrial applications, interchangeable for the Japanese market.

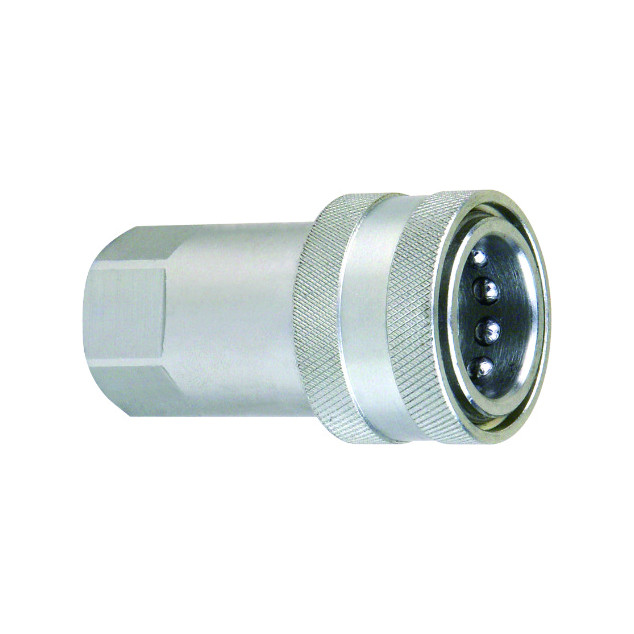

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC6314- G1/4 | 1/4'' | 51 | 28.2 | S19 | BSPP 1/4" FEMALE |
| HFSFC6314- Rc1/4 | 1/4'' | 51 | 28.2 | S19 | Rc 1/4 FEMALE (JPT) |
HFSFC6338- G3/8 | 3/8'' | 64 | 35 | S24 | BSPP 3/8" FEMALE |
HFSFC6338- Rc3/8 | 3/8'' | 64 | 35 | S24 | Rc 3/8 FEMALE (JPT) |
HFSFC6312- G3/4 | 1/2'' | 71 | 44 | S30 | BSPP 3/4" FEMALE |
HFSFC6312- Rc1/2 | 1/2'' | 71 | 44 | S30 | Rc 1/2 FEMALE (JPT) |
Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP6314-G1/4 | 1/4'' | 33 | S19 | BSPP 1/4" FEMALE |
| HFSFP6314-Rc1/4 | 1/4'' | 33 | S19 | Rc 1/4 FEMALE (JPT) |
HFSFP6338-G3/8 | 3/8'' | 39 | S22 | BSPP 3/8" FEMALE |
HFSFP6338-Rc3/8 | 3/8'' | 39 | S22 | Rc 3/8 FEMALE (JPT) |
HFSFP6312-G3/4 | 1/2'' | 44 | S27 | BSPP 3/4" FEMALE |
HFSFP6312-Rc1/2 | 1/2'' | 44 | S27 | Rc 1/2 FEMALE (JPT) |
