EH 166 Series - 2NV Agricultural ISO 5675 Quick Couplings, Poppet Valve (Steel)
group nameAgricultural ISO 5675 Quick Couplers
-
Min Order1 piece
brand nameEH
-
update timeSat, 06 Dec 2025 04:50:48 GMT
Paramtents
Interchange FASTER 2NV SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with the FASTER 2NV SERIES. Steel Product. This standard agricultural coupling features a poppet valve with a shielded valve-guide. This design is engineered to prevent accidental disconnections caused by sudden pressure surges or backflow. It is fully interchangeable with other couplings meeting the ISO 7241-1A standard.
Detailed
166 Series
Hydraulic Quick Coupling (Steel)
ISO-7241-A, Poppet Valve
This EH series is interchangeable with the FASTER 2NV SERIES. Steel Product. This standard agricultural coupling features a poppet valve with a shielded valve guide. This design is engineered to prevent accidental disconnections caused by sudden pressure surges or backflow. It is fully interchangeable with other couplings meeting the ISO 7241-1A standard.
Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP16612-G1/2 | 1/2'' | 47 | S27 | BSPP 1/2" FEMALE |
| HFSFP16612-1/2NPTF | 1/2'' | 47 | S27 | NPTF 1/2" FEMALE |
HFSFP16612-3/4-16UNF-ORB | 1/2'' | 47 | S27 | 3/4"-16 UNF FEMALE ORB |
HFSFP16612-7/8-14UNF-ORB | 1/2'' | 52.5 | S27 | 7/8"-14 UNF FEMALE ORB |
HFSFP16612-G1/2-ORB | 1/2'' | 47 | S27 | BSPP 1/2'' FEMALE ORB |

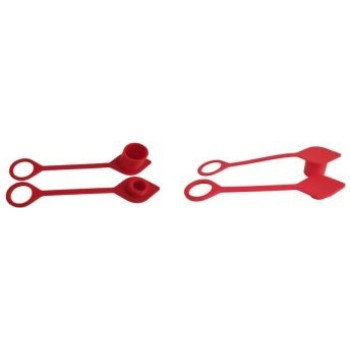

Accessories
Color Can Be Customized
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
08 | 12.5 | ISO-5675-1/2-P-P | ISO-5675-1/2-C-P | PVC |
