EH 81 Series - ISO 7241-B Quick Couplings (Brass)
group nameISO 7241-B Quick Couplers
-
Min Order1 piece
brand nameEH
-
update timeSun, 07 Dec 2025 00:25:56 GMT
Paramtents
Interchange PARKER 60 SERIES
Interchange DIXON H SERIES
Interchange EATON AEROQUIP FD45 SERIES
Interchange FASTER HNV SERIES
Interchange DNP PBVM SERIES
Interchange STUCCHI IRBO SERIES
Interchange HANSEN HK SERIES
Interchange SAFEWAY BS10 SERIES
Interchange VOSWINKEL IB-MS SERIES
Interchange GROMELLE 635-L SERIES
Packging & Delivery
Min Order1 piece
Briefing
This EH series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV SERIES, DNP PBVM SERIES, STUCCHI IRBO SERIES, HANSEN HK SERIES, SAFEWAY BS10 SERIES, VOSWINKEL IB-MS SERIES, and GROMELLE 635-L SERIES. Brass Product. Industrial-grade standard couplings compliant with ISO 7241-1 Series B. Full size range available from 1/8" to 2" with multiple thread options (BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.
Detailed
81 Series
Hydraulic Quick Coupling (Brass)
ISO-7241-B, Poppet Valve
This EH series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV SERIES, DNP PBVM SERIES, STUCCHI IRBO SERIES, HANSEN HK SERIES, SAFEWAY BS10 SERIES, VOSWINKEL IB-MS SERIES, and GROMELLE 635-L SERIES. Brass Product. Industrial-grade standard couplings compliant with ISO 7241-1 Series B. Full size range available from 1/8" to 2" with multiple thread options (BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.
Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFBFC8118-1/8" | 1/8'' | 48 | 24 | S14 | 1/8"NPT(BSPP) |
| HFBFC8114-1/4" | 1/4'' | 58 | 28 | S19 | 1/4"NPT(BSPP) |
HFBFC8138-3/8" | 3/8'' | 65 | 35 | S21 | 3/8"NPT(BSPP) |
HFBFC8112-1/2" | 1/2'' | 72 | 44.5 | S29 | 1/2"NPT(BSPP) |
HFBFC8134-3/4" | 3/4'' | 88 | 55 | S35 | 3/4"NPT(BSPP) |
HFBFC8110-1" | 1'' | 102 | 65 | S41 | 1"NPT(BSPP) |

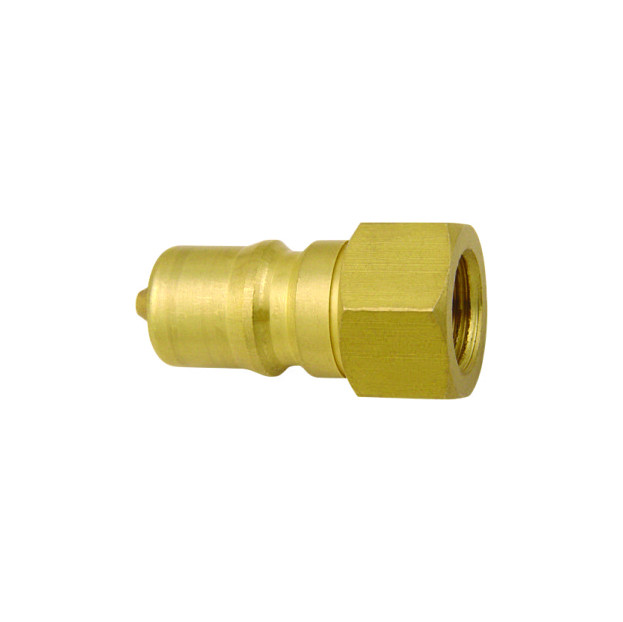

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFBFP8118-1/8" | 1/8'' | 30 | S14 | 1/8"NPT(BSPP) |
| HFBFP8114-1/4" | 1/4'' | 36.5 | S17 | 1/4"NPT(BSPP) |
HFBFP8138-3/8" | 3/8'' | 40 | S21 | 3/8"NPT(BSPP) |
HFBFP8112-1/2" | 1/2'' | 44 | S29 | 1/2"NPT(BSPP) |
HFBFP8134-3/4" | 3/4'' | 52.5 | S35 | 3/4"NPT(BSPP) |
HFBFP8110-1" | 1'' | 62 | S42 | 1"NPT(BSPP) |
Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-B-1/4-P-P | ISO-B-1/4-C-P | PVC |
| 06 | 10 | ISO-B-3/8-P-P | ISO-B-3/8-C-P | PVC |
08 | 12.5 | ISO-B-1/2-P-P | ISO-B-1/2-C-P | PVC |
12 | 20 | ISO-B-3/4-P-P | ISO-B-3/4-C-P | PVC |
| 16 | 25 | ISO-B-1-P-P | ISO-B-1-C-P | PVC |
