Z4SC-4 inch Solar-Powered Centrifugal Submersible Borehole Pump Stainless Steel Impeller Pump with MPPT Controller
Z4SC-4 inch Solar-Powered Centrifugal Submersible Borehole Pump Stainless Steel Impeller Pump with MPPT ControllerZ4SC-4 inch Solar-Powered Centrifugal Submersible Borehole Pump Stainless Steel Impeller Pump with MPPT ControllerZ4SC-4 inch Solar-Powered Centrifugal Submersible Borehole Pump Stainless Steel Impeller Pump with MPPT ControllerZ4SC-4 inch Solar-Powered Centrifugal Submersible Borehole Pump Stainless Steel Impeller Pump with MPPT ControllerZ4SC-4 inch Solar-Powered Centrifugal Submersible Borehole Pump Stainless Steel Impeller Pump with MPPT Controller

Z4SC-4 inch Solar-Powered Centrifugal Submersible Borehole Pump Stainless Steel Impeller Pump with MPPT Controller

  • group nameAC/DC Hybrid Solar Water Pump

  • Min Order1 set

  • modelZ4SC-ADHY

  • payment methodT/T, L/C, D/P D/A, MoneyGram

  • update timeFri, 05 Dec 2025 18:10:05 GMT

contact supplier

Paramtents

  • Categories AC/DC Solar Submersible Pump

  • Brand ZRI

  • Model Z4SC-ADHY

  • Pump Type Impeller Type Solar Submersible Pump

  • Outlet 1.25 /1.5 /2.0 inch

  • Pump Diameter 4 inch / 95 mm

  • Application Domestic water supply, small area irrigation

  • Certificate CE, ISO9001, GS, RoHS

  • Warranty 2 years

  • Package type Wooden Case

Packging & Delivery

  • Min Order1 set

Briefing

Z4SC-4 Solar-Powered Centrifugal Pump: OEM/ODM available. Durable stainless steel impeller with MPPT controller for optimal efficiency.

Detailed

Product Details
Packaging Information
Installation Guide

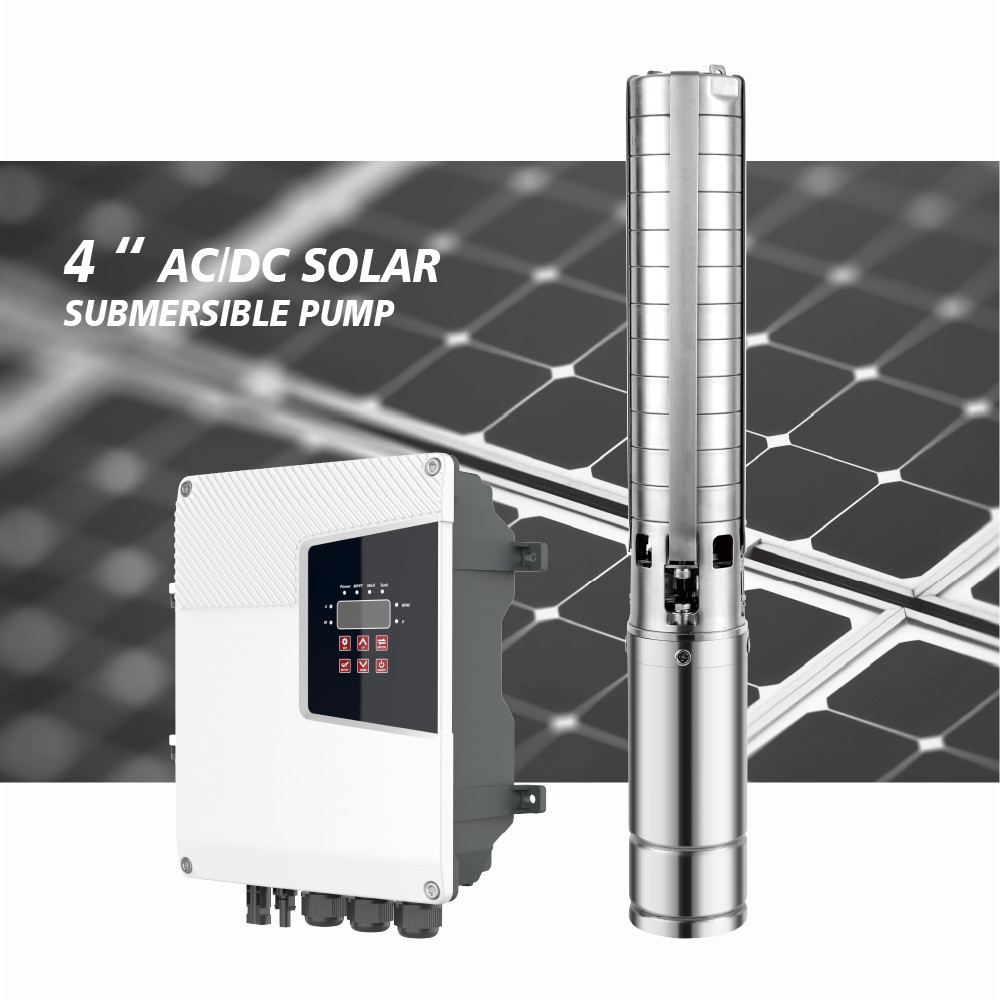

4 INCH AC/DC CENTRIFUGAL  SOLAR PUMP
introduce
The 4-inch Solar Powered DC Submersible Bore Pump,Stainless Steel Impeller Solar Pump is designed for reliable water pumping in off-grid locations. Powered directly by solar panels, this solar bore pump eliminates the need for traditional electricity or fuel, making it an eco-friendly and cost-effective solution.

Equipped with an MPPT controller and a brushless DC motor, this solar dc submersible water pump ensures maximum energy efficiency and stable operation. Its DC Impeller type design allows it to maintain consistent water flow even in deep wells or low-yield water sources, reducing maintenance needs.

This durable and versatile DC pump is ideal for agriculture irrigation, livestock watering, and rural water supply projects. Whether for farms, gardens, or remote communities, the brushless dc solar water pump provides a sustainable and long-lasting water pumping solution.
No.
Item
Rated Voltage
Optimum input voltage(DC)
Rated Power
Optimum input Power(W)
Max. Flow
Max. Head
Outlet
Cable
Controller
Solar panel Open circuit voltage (VOC)
A
Z4SC5.2-67-96-750D-A/DHY
80-285V
80-430V
750W
400-1200W
5.2m³/h
67m
1.25 "
2m
ADHY
＜450V
B
Z4SC5.2-101-150-1100D-A/DHY
80-285V
80-430V
1100W
600-1500W
5.2m³/h
101m
1.25 "
2m
ADHY
＜450V
C
Z4SC5.2-146-180-1300D-A/DHY
80-285V
80-430V
1300W
600-1600W
5.2m³/h
146m
1.25 "
2m
ADHY
＜450V
D
Z4SC5.2-198-200-1500D-A/DHY
80-285V
80-430V
1500W
600-1800W
5.2m³/h
203m
1.25 "
2m
ADHY
＜450V
E
Z4SC5.2-255-300-2200D-A/DHY
80-285V
80-430V
2200W
900-2500W
5.2m³/h
255m
1.25 "
2m
ADHY
＜450V
F
Z4SC5.2-275-300-2500D-A/DHY
80-285V
80-430V
2500W
900-2800W
5.2m³/h
255m
1.25 "
2m
ADHY
＜450V
G
Z4SC7.5-68-150-1100D-A/DHY
80-285V
80-430V
1100W
600-1500W
7.5m³/h
80m
1.25 "
2m
ADHY
＜450V
H
Z4SC7.5-80-180-1300D-A/DHY
80-285V
80-430V
1300W
600-1600W
7.5m³/h
80m
1.25 "
2m
ADHY
＜450V
I
Z4SC7.5-100-200-1500D-A/DHY
80-285V
80-430V
1500W
600-1800W
7.5m³/h
100m
1.25 "
2m
ADHY
＜450V
J
Z4SC7.5-150-300-2200D-A/DHY
80-285V
80-430V
2200W
900-2500W
7.5m³/h
150m
1.25 "
2m
ADHY
＜450V
K
Z4SC7.5-205-300-2500D-A/DHY
80-285V
80-430V
2500W
900-2800W
7.5m³/h
150m
1.25 "
2m
ADHY
＜450V
L
Z4SC11-60-200-1500D-A/DHY
80-285V
80-430V
1500W
600-1800W
11m³/h
60m
2.0 "
2m
ADHY
＜450V
M
Z4SC11-120-300-2200D-A/DHY
80-285V
80-430V
2200W
900-2500W
11m³/h
120m
2.0 "
2m
ADHY
＜450V
N
Z4SC11-136-300-2500D-A/DHY
80-285V
80-430V
2500W
900-2800W
11m³/h
136m
2.0 "
2m
ADHY
＜450V
O
Z4SC19-35-200-1500D-A/DHY
80-285V
80-430V
1500W
600-1800W
19m³/h
35m
2.0 "
2m
ADHY
＜450V
P
Z4SC19-60-300-2200D-A/DHY
80-285V
80-430V
2200W
900-2500W
19m³/h
60m
2.0 "
2m
ADHY
＜450V
Q
Z4SC19-68-300-2500D-A/DHY
80-285V
80-430V
2500W
900-2800W
19m³/h
68m
2.0 "
2m
ADHY
＜450V
Application
● Application of deep well pump to irrigation
● Garden watering
● Village and town water supply
● Enviroment friendly
● Clean drinking water
● Pumping and drip irrigation

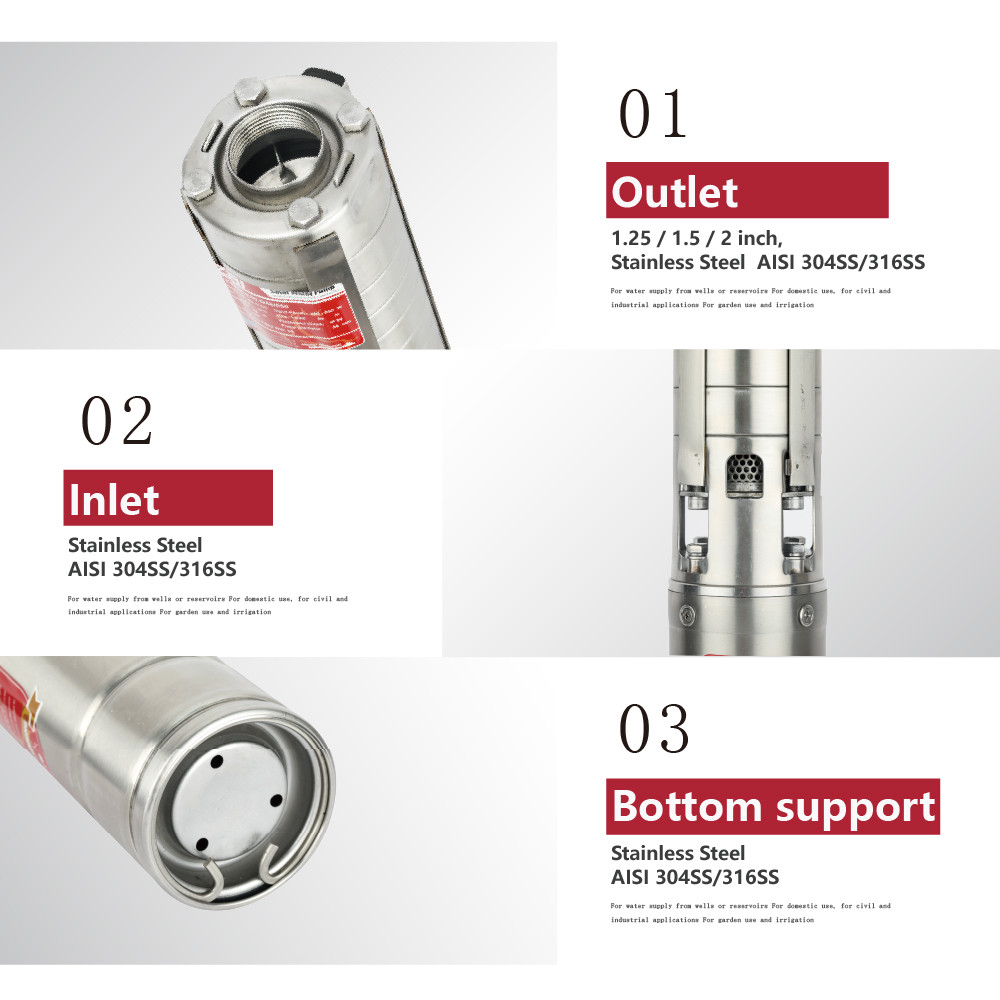

Pump Details

Trusted Manufacturer:

We specialize in solar-powered submersible bore pumps with years of OEM/ODM experience, ensuring reliable quality and a strong global supply chain.

High Efficiency & Innovation:

Equipped with an MPPT controller and brushless DC motor, our DC centrifugal solar water pump maximizes energy efficiency and delivers stable water flow in deep wells or low-yield sources.

Versatile Applications:

Ideal for agriculture irrigation, livestock watering, and rural water supply projects, providing a sustainable solution for off-grid water needs.

Fully Customizable:

Options for pump size, flow rate, voltage, and branding – perfect for private label or tailored solutions to suit your specific project requirements.

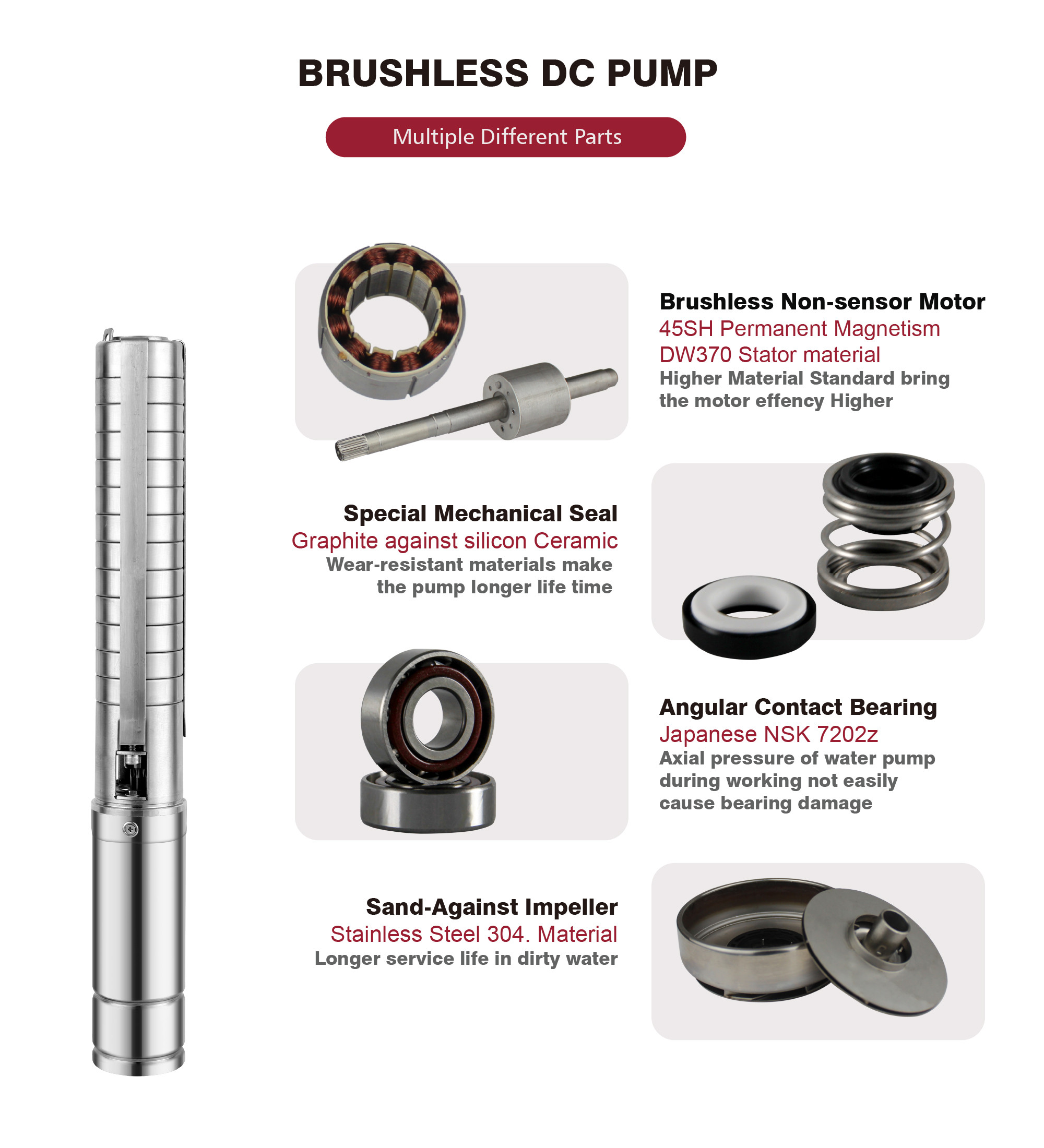

why choose us

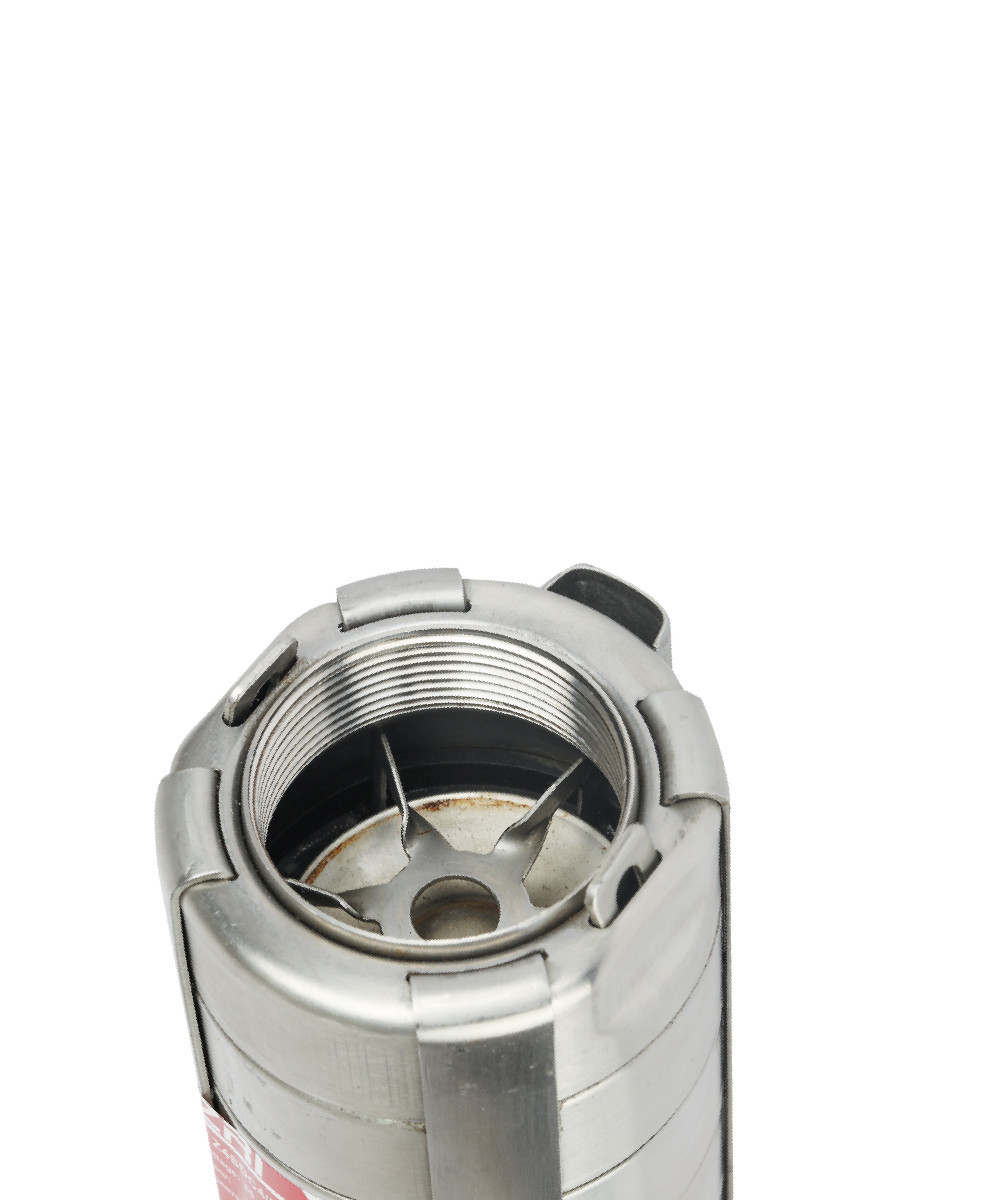

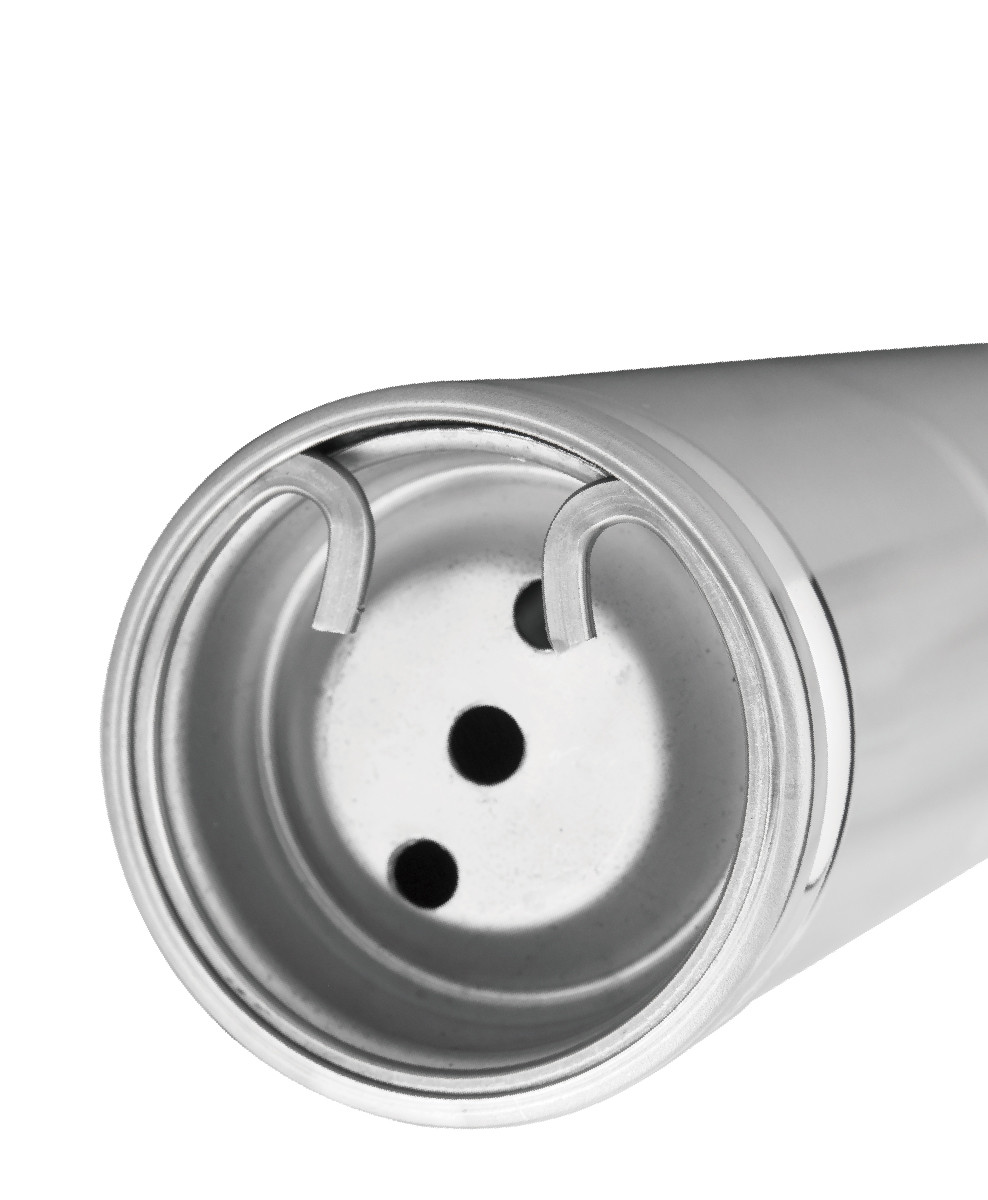

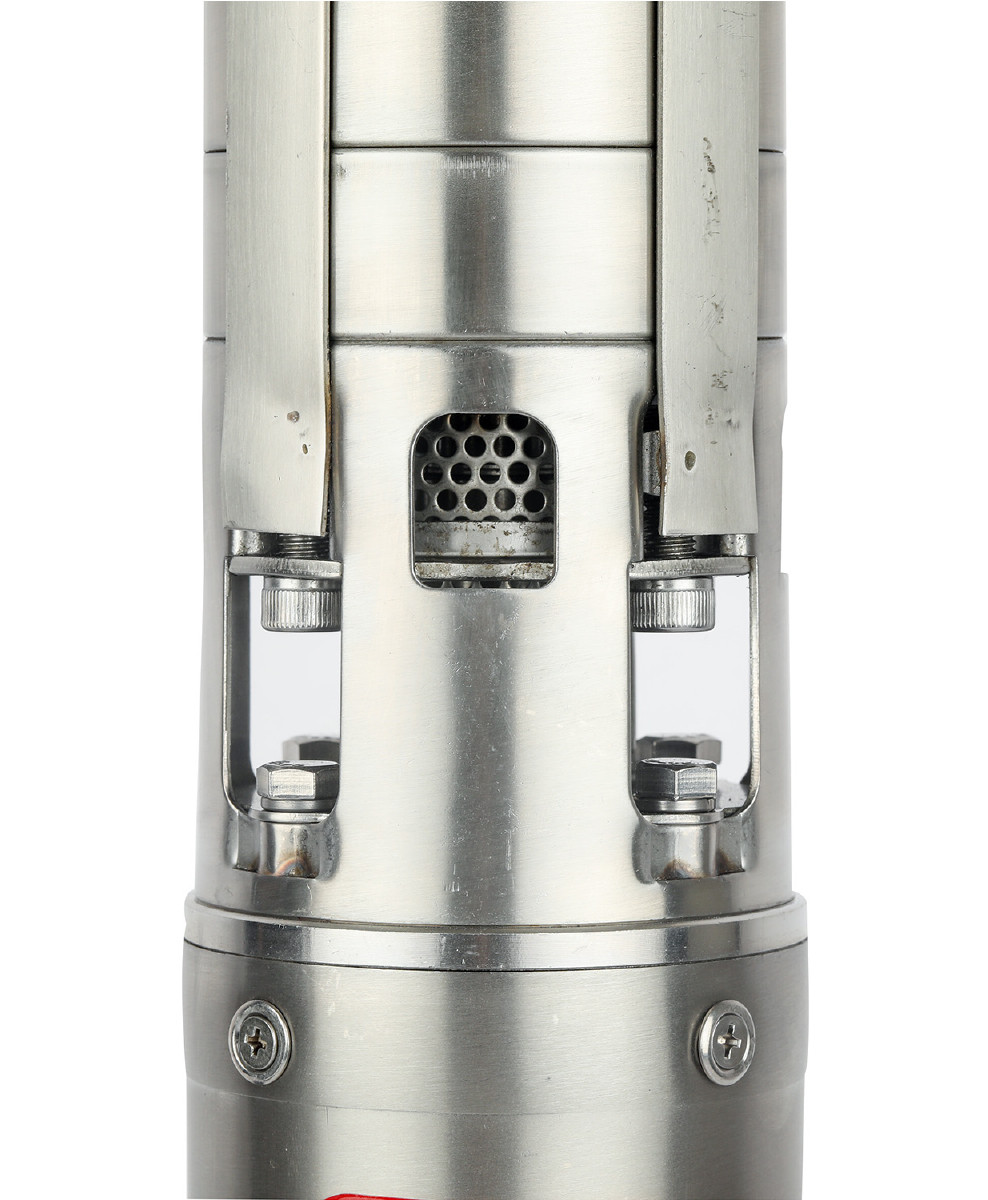

水泵细节
水泵细节
水泵细节
● Permanent magnet DC brush less synchronous motor: the efficiency is improved by 15- 20%
● Oil filled motors for reliability and to avoid oil contamination
● Alloy mechanical seal ,longer working life and high reliability
● NSK Angular Contact Bearing
Controller Details
水泵细节

- MPPT: Maximum Power Point Tracking

- Running Speed Control: stepless speed regulation

- Timing function: Set pump running time

- Over current protection: Motor stops automatically when stucked

- Soft starting protection:Protect the motor & bearing

- Lack of water protection: Restart Automatically upon the Water Level

- Low-voltage / Over-voltage protection: Protect the motor & controller

- Reverse voltage protection: Circuit breaking automatically when reverse connection

- Short-circuit protection: Automatically stops when Short wiring of motor
控制器细节
控制器细节
控制器细节
Test Report
Z4SC5.2-101-150-1100D-A/DHY

Z4SC5.2-146-180-1300D-A/DHY

Z4SC5.2-198-200-1500D-A/DHY

Z4SC5.2-255-300-2200D-A/DHY

Z4SC5.2-275-300-2500D-A/DHY

Z4SC7.5-68-150-1100D-A/DHY

Z4SC7.5-80-180-1300D-A/DHY

Z4SC7.5-100-200-1500D-A/DHY

Z4SC7.5-150-300-2200D-A/DHY

Z4SC7.5-205-300-2500D-A/DHY

Z4SC11-60-200-1500D-A/DHY

Z4SC11-120-300-2200D-A/DHY

Z4SC11-136-300-2500D-A/DHY

Z4SC19-35-200-1500D-A/DHY

Z4SC19-60-300-2200D-A/DHY

Z4SC19-68-300-2500D-A/DHY

Packaging Information

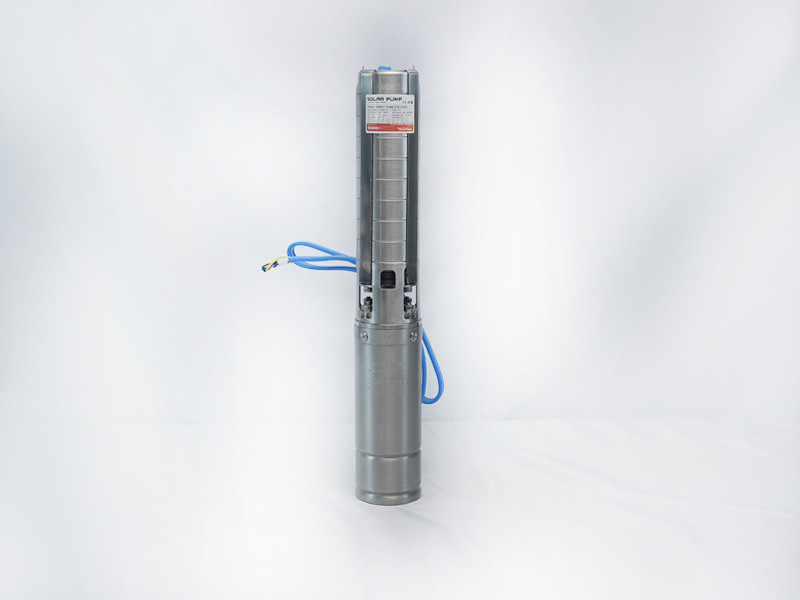

test
test
test
test

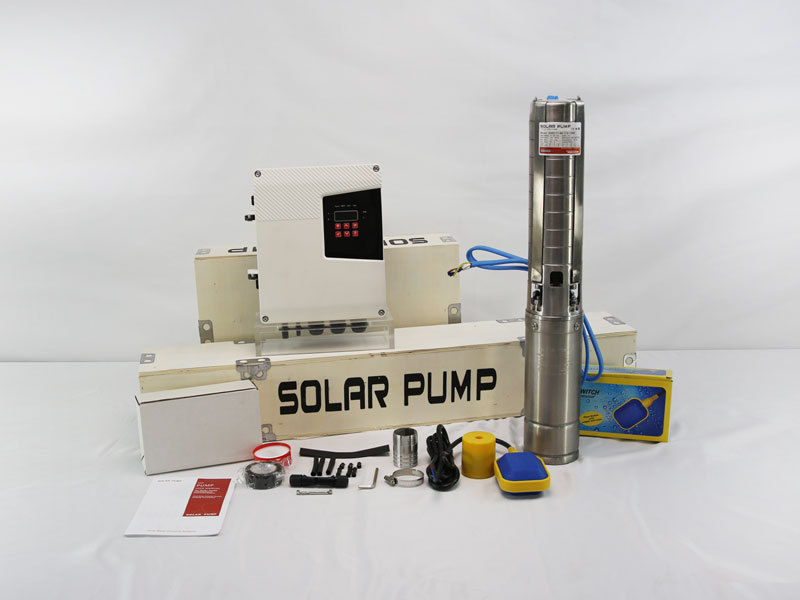

Package Include:                                                                                                          Additional materials need to be prepared:
● 1 x 4 inch Brushless solar centrifugal pump with one 2m cable
● 1 x AC/DC Hybrid Pump controler with MPPT function
● 1 x Plastic Water Float swith (sensor for tank)
● 1 x Pump outlet joint connector
● 1 x Splice kit for cable join
● 1 x Splice kit for waterproof
● Suitable solar panels. Refer to the suggestions provided in the instruction book.
● Motor power cable (2 wires plus earth). We recommend using a cable that is at least thicker than the original cable in the pump.
● PV cable (for connecting solar panels to the controller).
● Poly pipe from the pump to the water tank. We recommend using a poly pipe with a diameter of 1 inch or more.
● A stainless steel wire (referred to as a safety cable) to secure the pump in the bore. If pumping water from a dam or river, a float setup is required.
Packaged Data
No.
Item
Water pump Packaging
Controller Packaging
Packaging materials
Length
(CM）
Width(CM)
Height
(CM)
Volume
(m³)
Weight(KG)
Length
(CM）
Width
(CM)
Height
(CM)
Volume
(m³)
Weight
(KG)
A
Z4SC5.2-67-96-750D-A/DHY
2
16
15
0
12
52
30
15
0.023
6.2
Wooden Case
B
Z4SC5.2-101-150-1100D-A/DHY
2
16
15
0
12
52
30
15
0.023
6.2
Wooden Case
C
Z4SC5.2-146-180-1300D-A/DHY
2
16
15
0
12.5
52
30
15
0.023
6.2
Wooden Case
D
Z4SC5.2-198-200-1500D-A/DHY
2
16
15
0
13
52
30
15
0.023
6.2
Wooden Case
E
Z4SC5.2-255-300-2200D-A/DHY
2
16
15
0
13
52
30
15
0.023
6.2
Wooden Case
F
Z4SC5.2-275-300-2500D-A/DHY
2
16
15
0
14
52
30
15
0.023
6.2
Wooden Case
G
Z4SC7.5-68-150-1100D-A/DHY
2
16
15
0
14.5
52
30
15
0.023
6.2
Wooden Case
H
Z4SC7.5-80-180-1300D-A/DHY
2
16
15
0
15
52
30
15
0.023
6.2
Wooden Case
I
Z4SC7.5-100-200-1500D-A/DHY
2
16
15
0
14
52
30
15
0.023
6.2
Wooden Case
J
Z4SC7.5-150-300-2200D-A/DHY
2
16
15
0
14.5
52
30
15
0.023
6.2
Wooden Case
K
Z4SC7.5-205-300-2500D-A/DHY
2
16
15
0
14.5
52
30
15
0.023
6.2
Wooden Case
L
Z4SC11-60-200-1500D-A/DHY
2
16
15
0
14.5
52
30
15
0.023
6.2
Wooden Case
M
Z4SC11-120-300-2200D-A/DHY
2
16
15
0
14.5
52
30
15
0.023
6.2
Wooden Case
N
Z4SC11-136-300-2500D-A/DHY
2
16
15
0
14.5
52
30
15
0.023
6.2
Wooden Case
O
Z4SC19-35-200-1500D-A/DHY
2
16
15
0
14.5
52
30
15
0.023
6.2
Wooden Case
P
Z4SC19-60-300-2200D-A/DHY
2
16
15
0
14.5
52
30
15
0.023
6.2
Wooden Case
Q
Z4SC19-68-300-2500D-A/DHY
2
16
15
0
14.5
52
30
15
0.023
6.2
Wooden Case
System Wiring Instruction
tag3-1
tag3-1
How to configure solar panels
● Connect the solar panels accurately according to the product manual, as excessively high VOC voltage may cause irreversible damage to the controller.
● It is generally recommended to calculate the required solar panel power based on 1.3 to 1.5 times the rated power of the water pump.
● When connecting the solar panels, ensure that the VOC voltage of the solar panels does not exceed the maximum VOC voltage limit of the controller.
<
No.
Model
Controller Voc
Solar Panel Connection
A
Z4SC5.2-67-96-750D-A/DHY
SAD-4C96-430VOC
Solar Panel A Connection<="" div="">
B
Z4SC5.2-101-150-1100D-A/DHY
SAD-4C15-430VOC
Solar Panel A Connection<="" div="">
C
Z4SC5.2-146-180-1300D-A/DHY
SAD-4C20-430VOC
Solar Panel A Connection<="" div="">
D
Z4SC5.2-198-200-1500D-A/DHY
SAD-4C20-430VOC
Solar Panel A Connection<="" div="">
E
Z4SC5.2-255-300-2200D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection<="" div="">
F
Z4SC5.2-275-300-2500D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection<="" div="">
G
Z4SC7.5-68-150-1100D-A/DHY
SAD-4C15-430VOC
Solar Panel A Connection<="" div="">
H
Z4SC7.5-80-180-1300D-A/DHY
SAD-4C20-430VOC
Solar Panel A Connection<="" div="">
I
Z4SC7.5-100-200-1500D-A/DHY
SAD-4C20-430VOC
Solar Panel A Connection<="" div="">
J
Z4SC7.5-150-300-2200D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection<="" div="">
K
Z4SC7.5-205-300-2500D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection<="" div="">
L
Z4SC11-60-200-1500D-A/DHY
SAD-4C20-430VOC
Solar Panel A Connection<="" div="">
M
Z4SC11-120-300-2200D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection<="" div="">
N
Z4SC11-136-300-2500D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection<="" div="">
O
Z4SC19-35-200-1500D-A/DHY
SAD-4C20-430VOC
Solar Panel A Connection<="" div="">
P
Z4SC19-60-300-2200D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection<="" div="">
Q
Z4SC19-68-300-2500D-A/DHY
SAD-4C30-430VOC
Solar Panel A Connection<="" div="">
>
