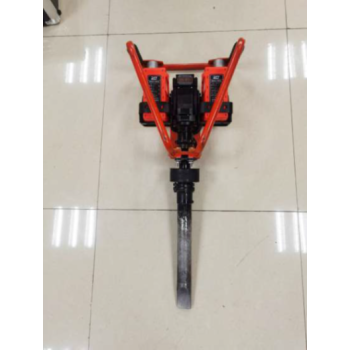

Battery-Powered Tamping Pick

  • group nameTamping

  • Min Order1 piece

  • brand nameRailway Maintenance

  • modelBattery-Powered Tamping Pick

  • update timeSun, 07 Dec 2025 03:04:05 GMT

Packging & Delivery

  • Min Order1 piece

Briefing

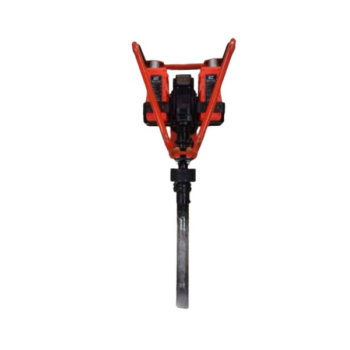

Battery-Powered Tamping Pick

Detailed

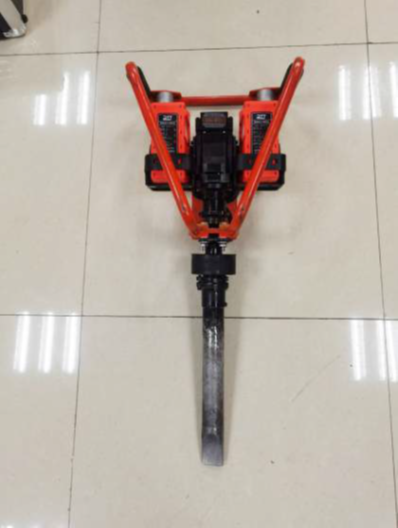

battery-powered tamping pick
Overview
The battery-powered tamping pick is a portable, specialized railway maintenance tool. It is powered by two 36V lithium batteries and performs compaction of ballast bed gravel through mechanical transmission. It is suitable for routine track maintenance, construction during track possession periods, emergency flood response operations, and tamping work in complex turnout areas.
Key Features
⚪  Utilizes a lithium battery — a clean power source ensuring environmentally friendly, pollution-free, and quiet operation.
⚪  Equipped with a 36V lithium-powered DC control system, featuring safety protections against overcurrent, overvoltage, undervoltage, and overtemperature.
⚪  Excellent vibration damping for reduced operator fatigue.
⚪  Fully waterproof design with outstanding low-temperature resistance, allowing normal operation in extremely cold conditions down to -30°C.
Technical Specifications
Title
Rated Power: 1.0 kW
Rated Speed: 7500 r/min (Constant Speed)
Needle Amplitude: ≥ 1.5 mm
Vibration Frequency: 130 Hz ~ 140 Hz
Needle Hardness: ≥ 50 HRC
Title
Intelligent Control Features: Power level display, remaining runtime display
Lithium Battery Capacity: 36 V, 24 Ah
Equipment Weight: ≤ 25 kg (including battery)
Protection Rating: IP45

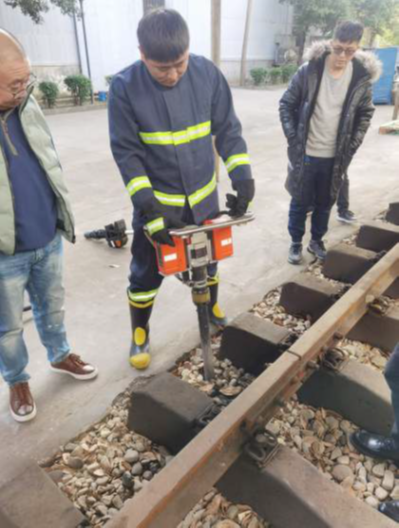

Application Effectiveness
battery-powered tamping pick Application Effectiveness
