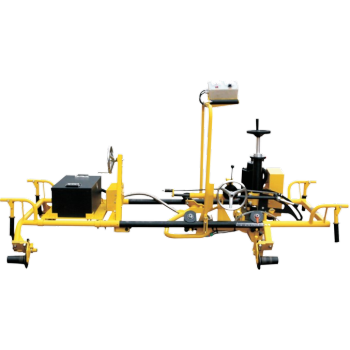

Multifunctional Vertical Axis Grinder | Rail Grinding | Rail Grinder
group nameRail Grinder
-
Min Order1 piece
brand nameRailway Maintenance
modelNCM-5 II
-
update timeFri, 05 Dec 2025 22:27:57 GMT
Packging & Delivery
Min Order1 piece
Briefing
Rail Grinder
Detailed
Overview

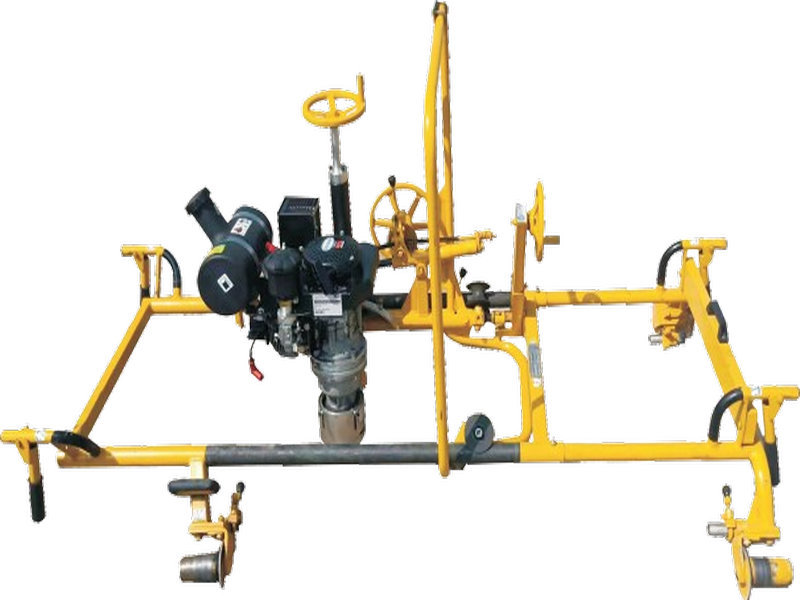

The NCM-5 II Multifunctional Vertical Axis Grinder is a lightweight yet powerful dedicated equipment for track maintenance. It is primarily designed for the repair and grinding of rail heads on various turnouts and mainline tracks, efficiently and conveniently eliminating defects such as crushing due to poor contact, head checks (fish scaling), and corrugation wear.
Furthermore, by configuring specialized grinding heads and connecting shafts, the machine can be extended to perform grinding operations on the rail web, truly achieving multi-functionality and significantly enhancing the flexibility and coverage of maintenance tasks.
Key Features
⚪ Equipped with a German-made two-stroke gasoline engine delivering 5kW of robust power, ensuring sufficient and stable performance during high-demand grinding operations.
⚪ Vertical axis design. Core functions cover turnout and mainline rail head repair, and can be extended via accessories for rail web grinding, adapting to multiple maintenance scenarios.
⚪ An optimized structure and layout balance the working range with overall dimensions. Reasonable total weight makes the machine highly maneuverable for transport, on/off-track handling, and field operation.
⚪ Features precise feed adjustment and a wide deflection angle range to meet the accuracy requirements for rail profile restoration.
Tech Sheet
Category | Technical Parameter | Specification / Value | ||||
Power System | Engine Model | Imported German A$165EI Two-stroke Gasoline Engine | ||||
| Rated Power | 5 kW @ 4100 rpm | |||||
Fuel Consumption | 380 g/kWh | |||||
Core Grinding Performance | Grinding Wheel Speed | 4100 rpm | ||||
Deflection Range | +80° ~ -20° | |||||
Horizontal Stroke | 385 mm | |||||
Vertical Stroke | 200 mm | |||||
Feed Adjustment Accuracy | 0.16 mm | |||||
Grinding Attack Angle | 5° | |||||
Standard Wheel Size | 125 × 65 × M20 (mm) | |||||
Max. Wheel Linear Speed | ≤ 35 m/s | |||||
Physical Parameters | Dimensions (L×W×H) | 90 kg | ||||
Total Weight | 126 kg | |||||

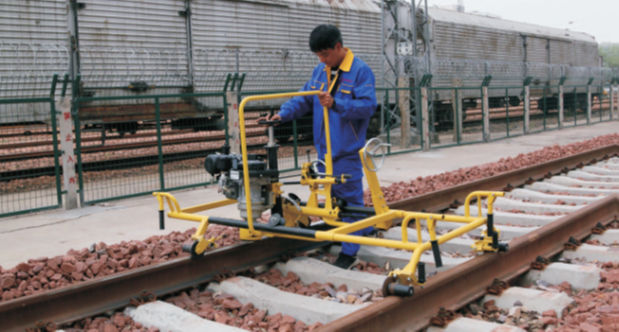

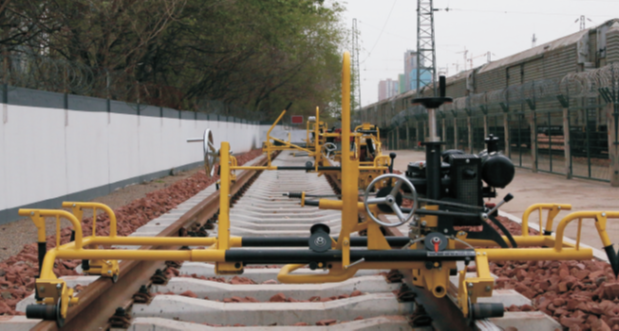

Application Effectiveness
