Automatic Vertical Kidney Bean Filling and Weighing Machine VFFS Plastic Bag Packing Machine
Automatic Vertical Kidney Bean Filling and Weighing Machine VFFS Plastic Bag Packing MachineAutomatic Vertical Kidney Bean Filling and Weighing Machine VFFS Plastic Bag Packing MachineAutomatic Vertical Kidney Bean Filling and Weighing Machine VFFS Plastic Bag Packing MachineAutomatic Vertical Kidney Bean Filling and Weighing Machine VFFS Plastic Bag Packing MachineAutomatic Vertical Kidney Bean Filling and Weighing Machine VFFS Plastic Bag Packing Machine

Automatic Vertical Kidney Bean Filling and Weighing Machine VFFS Plastic Bag Packing Machine

FOB Price
  • US $15000.0

    1 - 50 set

  • group nameGranule vertical VFFS packing machine

  • Min Order1 set

  • brand nameTOP Y Machinery

  • modelVFFS

  • payment methodL/C, Western Union

  • update timeSat, 03 Jan 2026 07:03:42 GMT

contact supplier

Paramtents

  • Name VFFS Packing Machine

  • function FILLING, Sealing, Packing

  • core components Motor, PLC, Gear, Bearing, Temperature Control Mod

  • After-sales Service Provided Engineers available to service machinery overseas

  • Machine Material SS#304 or Carbon/Mild Steel

  • Film Changeover Simple and fast bag sizes with one set of former

  • Software Operation Program storage and retrieval function

  • Bags or Products Changeover parameters setting on the touch screen

  • Controller System PLC and touch screen with simple manu-based

  • Machine Material SS#304 or Carbon/Mild Steel

  • brand name TOP Y MACHINERY

Packging & Delivery

  • Size80cm x80cm x150cm

  • Weight350kg / set

  • Min Order1 set

Briefing

Vffs machine is suitable for all kinds of the bags made of plastic roll film.

Detailed

Automatic Vertical Kidney Bean Filling and Weighing Machine VFFS Plastic Bag Packing Machine

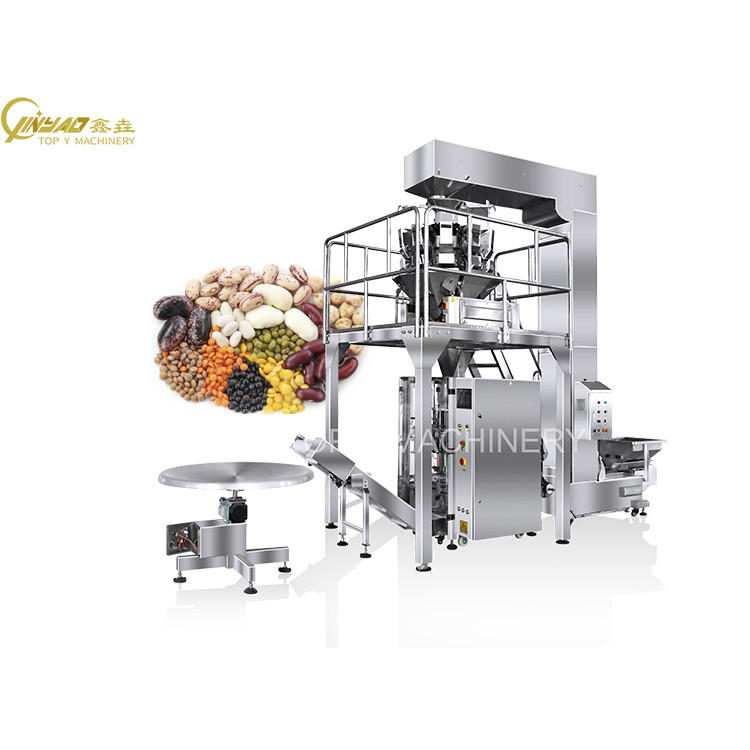

Bean Packing Machine
Function and characteristics:

1. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm

2.The width of the bags could be adjusted by electrical motor.

3. It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.

4.The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.

Product Description

VFFS Packing Machine

Granules Weighing and Packing Solution

Combine with the mutilhead weigher, this system can handle various granules, like snacks, frozen food, nuts, etc.

Weighing accuracy: 0.1-1.5g

Speed: 25-40bags/min
(also we have double servo motors driven machine can reach up to 60bags/min)

Machine material: Full SS#304(food grade)

Bag dimension: adjustable

Bag material: rolling film(single layer PE film/ laminated film)

The functions of the packing system mainly are conveying, weighing, bag forming, filling and bag sealing. The flexibility of it allows you to customize your machine to meet your individual requirements!
VFFS Packing Machine
VFFS Packing Machine

Specification Of VFFS Packing Machine
Model
TOPY-VP320
TOPY-VP420
TOPY-VP520
TOPY-VP620
TOPY-VP730
TOPY-VP820
TOPY-VP1050
Bag Size
(L)30-220mm
(W)50-150mm
(L)70-300mm
(W)60-200mm
(L)80-350mm
(W)100-250mm
(L)80-350mm
(W)100-250mm
(L)200-400mm
(W)140-350mm
(L)150-500mm
(W)250-400mm
(L)200-500mm
(W)140-500mm
Bag Speed
(standard
machine)
10- 60bags/min
10- 70bags/min
15- 60bags/min
15- 60bags/min
10- 50bags/min
5-30bags/min
2-30bags/min
Bag Speed
(High-speed
machine)
Max 100
bags/min
Max 100
bags/min
Max 100
bags/min
Max 100
bags/min
Max 100
bags/min
Max 100
bags/min
Max 100
bags/min
Film Width
120-320mm
120-420mm
220-520mm
220-620mm
300-720mm
340-820mm
300-1050mm
Film Thickness
0.03-0.1mm
0.03-0.1mm
0.04-0.10mm
0.04-0.1mm
0.05-0.12mm
0.06-0.15mm
0.07-0.20mm
Air Consumption
0.7Mps
0.5m3/min
0.7Mps
0.5m3/min
0.8Mps
0.4m3/min
0.8Mps
0.4m3/min
0.8Mps
0.5m3/min
0.6Mps
0.7m3/min
0.8Mps
0.7m3/min
Dimension
1300*880*1150
1530*970*1600
1430*1200*1700
1430*1200*1700
1340*1580*1950
1500*1680*2100
1740*2080*2500
Weight
250kg
450kg
680kg
700kg
800kg
1000kg
1200kg
Power Supply
2.2kw, 220V
50/60HZ
2.2kw, 220V
50/60HZ
2.5kw, 220V
50/60HZ
2.5kw, 220V
50/60HZ
2.5kw, 220V
50/60HZ
3.0kw, 220V
50/60HZ
3.0kw, 220V
50/60HZ

The Optional Device On The VFFS Packing Machine

Chips Packing Machine
Chips Packing Machine
Please Inform The Bag Type You Need
Chips Packing Machine
Chips Packing Machine
VFFS
VFFS Packing Machine For Different Kinds Of Product


VFFS packing machine,the machine for your current and future needs! The functions of the packing system mainly are conveying, weighing, bag forming, filling and bag sealing. The flexibility of it allows you to customize your machine to meet your individual requirements!

VFFS packing machine is suitable for all kinds of the bags made of plastic roll film, such as pillow bag, side gusset bag, quad sealing bag and so on.

Besides, by connecting with different weighing equipment, the packing system can handle various products, such as powder, snacks, dried vegetable or fruit, puffed food, liquid sauce, beverage, etc.
