Glass Fin Curtain Wall Structural Glass Support System China Manufacturer
group nameGlass Fin Curtain Wall
-
Min Order100 square meter
-
update timeSun, 12 Apr 2026 01:19:20 GMT
Paramtents
Frame Type Visible Frame Curtain Wall
Material Tempered Glass + Laminated Glass Fins
Glass Options Double Glazing / Laminated / Low-E
Structure Frameless (Glass Fins as Structural Support)
Application Commercial Buildings / Office Towers / Malls
Performance Standard ASTM / AAMA
Packging & Delivery
Min Order100 square meter
Briefing
A highly transparent curtain wall system supported by glass fins, maximizing daylight and delivering a striking architectural statement.
Detailed

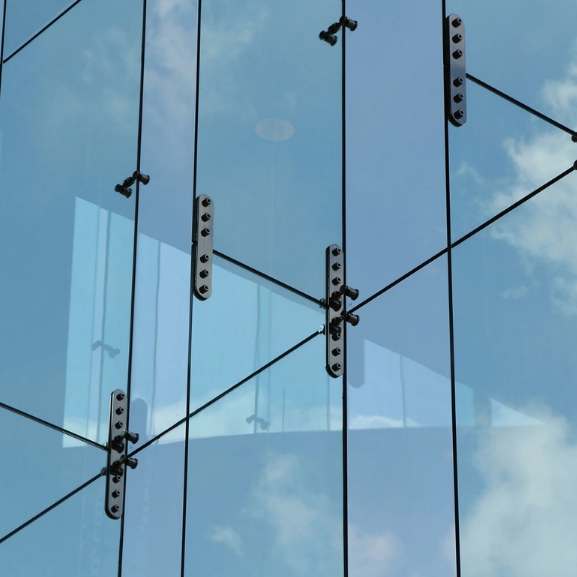

Glass Fin Curtain Wall – Product Overview
The glass fin curtain wall system uses vertical glass fins as structural supports instead of aluminum frames, achieving maximum transparency and minimal visual obstruction.
Why Choose Our Aluminum Glass Curtain Wall Facade
✔ Full Transparency Design
Maximize visual openness with a frameless all-glass system, creating a clean and modern architectural look.
✔ Cost-Effective Commercial Solution
Lower manufacturing and installation costs compared to unitized curtain wall systems, ideal for budget-controlled projects.
✔ Enhanced Natural Daylighting
Allows abundant natural light into interior spaces, improving comfort and reducing energy consumption.
✔ Easy Installation & Maintenance
· On-site assembly allows flexible adjustments
· Convenient for long-term repair and replacement
· Suitable for international construction projects
✔ Proven Performance & Compliance
· Meets ASTM and AAMA standards
· Excellent water tightness and air sealing
· Long-term corrosion resistance for coastal environments
Technical Performance
| Item | Performance | |
| Wind Load Resistance | 3000–7000 Pa | |
| Water Tightness | ≥ 300–600 Pa | |
| Air Infiltration | ≤ 0.06–0.3 cfm/ft² | |
Thermal Performance | 1.2–2.5 W/m²·K | |
| Acoustic Insulation | 35–50 dB | |
Seismic Performance | ±20–25 mm Inter-story drift | |
Corrosion Resistance | 2000h Salt Spray Test | |
Applications – Commercial Curtain Wall Projects
· Office Buildings
· Shopping Malls
· Hotels
· Commercial Complexes
· Public Infrastructure
This glass curtain wall facade is widely used in modern urban architecture requiring both performance and aesthetics.
FAQ – Curtain Wall System
Q1: What is the difference between visible frame and unitized curtain wall?
Visible frame systems are installed on-site and are more cost-effective, while unitized systems are pre-assembled in factories.
Q2: Is this system suitable for high-rise buildings?
Yes, it is designed to meet high wind load and seismic performance standards.
Q3: Can the glass and color be customized?
Yes, we offer full customization for glass types, coatings, and aluminum finishes.
Q4: What standards does the system comply with?
It complies with ASTM, AAMA, and international facade standards.
Q5: Do you provide project support?
Yes, we provide:
· Shop drawings
· Engineering solutions
· Installation guidance
· OEM/ODM services
