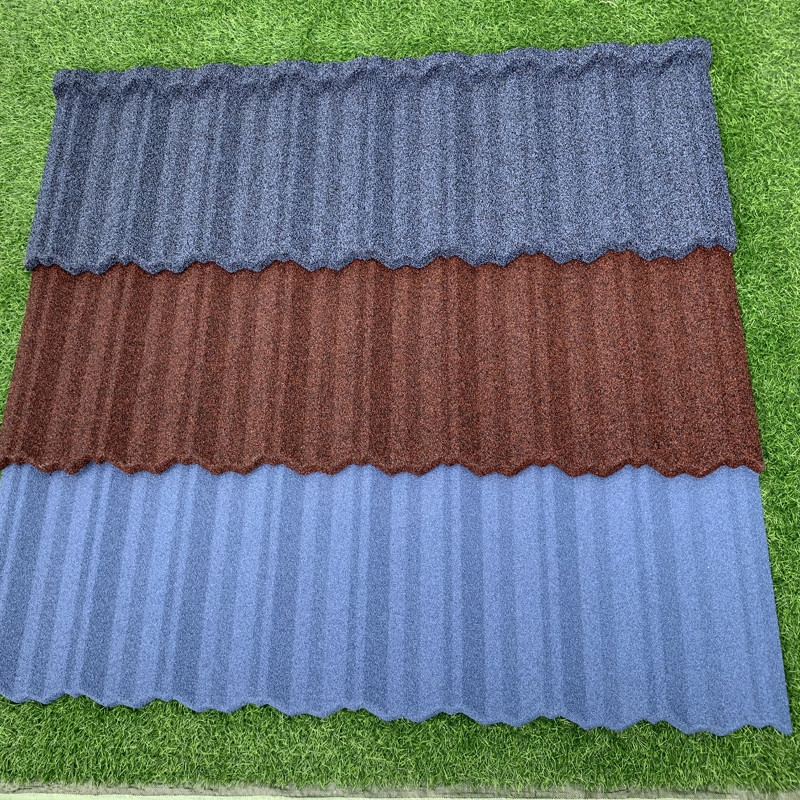

Stone coated metal roof tiles
group nameRoofing Sheet
-
Min Order5000 sheet
brand nameFanda Steel Coil & Guardrail Manufacturer
payment methodL/C, T/T
-
update timeSat, 18 Jul 2026 13:11:09 GMT
Paramtents
Product name Stone coated metal roof tiles
Profile Bond/Classic/Groove/Milano/Roman/Shingles/Slate/Wood
Coating type color stone
Package weight 2.5-3.5 tons
Thickness 0.2mm-0.6mm
Tile Size 1340x420mm
Cover size 1290x370mm
Color customized
Unit weight 2-3.5kg
Packging & Delivery
Min Order5000 sheet
Briefing
Product name: stone coated metal roof tiles
Base Steel Grade: SGLCC/ASTM A792
Thickness: 0.2-0.6mm
Tile size: 1340x420mm
Base Steel Grade: SGLCC/ASTM A792
Thickness: 0.2-0.6mm
Tile size: 1340x420mm
Detailed
Stone Coated Metal Roof Tiles | Fanda
Stone coated metal roof tiles are manufactured from Galvalume steel base with natural stone granules on the surface, combining the durability of metal with the aesthetic of stone. Lightweight, weather-resistant, and easy to install — ideal for pitched roofs on villas, resorts, residential houses, and commercial buildings. Fanda offers various tile profiles (flat, curved, Roman, etc.) with colors available per RAL chart or customer sample.
The specifications of stone coated metal roof tiles
| Item | Parameter | ||
| Base Material | Galvalume steel coil (AZ50 – AZ150) | ||
| Thickness | 0.2mm-0.6mm | ||
| Stone Coating | Natural basalt / granite granules | ||
Top Coating | Acrylic resin (clear coat) | ||
Tile Types | Bond/Classic/Groove/Milano/Roman/Shingles/Slate/Makuti | ||
Standard Size | 1340 × 420mm (effective coverage) | ||
Coverage per Tile | ≈ 0.43–0.48 m² (depends on profile) | ||
Color Options | Red, green, blue, grey, black, brown, etc. | ||
Protective Film | Optional (PE film, thickness 30–80μm) | ||
Standard | ASTM A755, EN 10346 | ||
| Key Features & Advantages | Applications | ||
| 1. Lightweight: Only 4–6 kg/m² — 1/6 of traditional clay/concrete tiles, reduces roof structure cost | Villas: High-end residential roofing | ||
| 2. Strong & Durable: Galvalume base + stone coating — impact-resistant, hail-resistant, wind-resistant (120 km/h) | Resorts & B&Bs: Tourist area roofing — aesthetic and durable | ||
| 3. Weather Resistant: UV-resistant, acid-resistant, salt-spray-resistant — suitable for coastal, acid rain, alpine climates | Residential Communities: Townhouses, garden villas | ||
4. Fast Installation: Lap joint design, can be cut on site — saves labor and time | Commercial Buildings: Clubhouses, showrooms, boutique hotels, restaurants | ||
5. Aesthetic & Versatile: Multiple profiles and colors, stone-like appearance — enhances building value | Roof Renovation: Flat-to-pitch conversion, old tile replacement — reduces roof load | ||
6. Eco-friendly: 100% recyclable metal base — meets green building requirements | Public Buildings: Schools, hospitals, libraries, scenic area facilities | ||
7. Noise & Thermal Insulation: Works with insulation layer — reduces rain noise and heat transfer | Villas: High-end residential roofing |
Why Choose Fanda Stone Coated Metal Roof Tiles?
| Why Choose us? | |||
| 1. Galvalume steel base — better corrosion resistance than standard galvanized | |||
| 2. Natural stone granules — color-stable, no fading | |||
| 3. Multiple tile profiles and colors — custom options available | |||
4. Lightweight and high strength — reduces building structure cost | |||
5. Easy and fast installation | |||
6. 15+ years of steel industry experience — reliable quality | |||
7. Full technical support and after-sales service |
Tiles color chart
Technical Data & Downloads
For detailed product catalog, installation guide, color charts, or custom tile profiles, please contact us.
