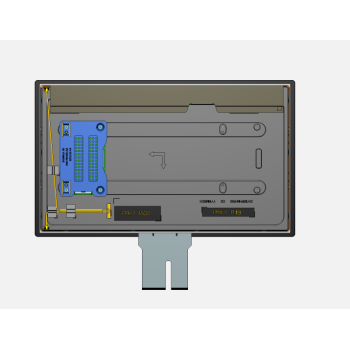

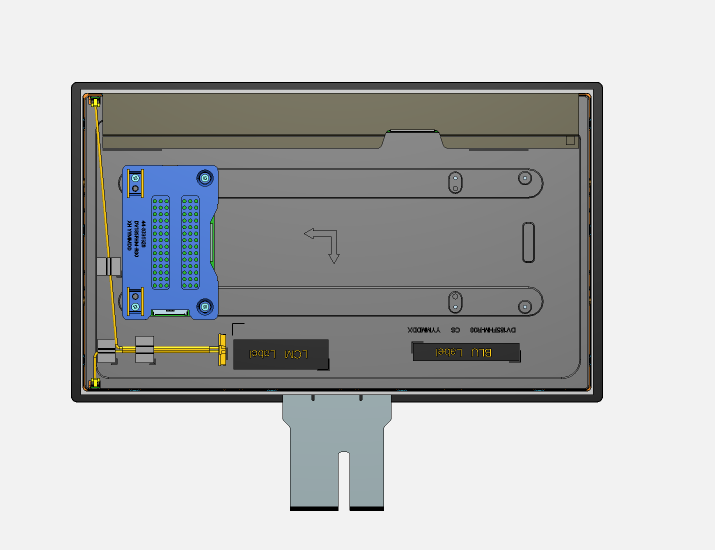

18.5" TFT LCD Display Module with High Brightness , Wide Temperature (-20~60°C)
group name13.3"-32"Family Touch Display Module
-
Min Order1 piece
brand nameJuTouch
modelJT185TM004-V1
payment methodT/T, L/C, PayPal
-
update timeTue, 22 Sep 2026 15:31:49 GMT
Paramtents
Resolution 1920×1080 (RGB)
High brightness 850 cd/m² (Typical)
LCD Interface LVDS
Operating temperature -20°C to +60°C
Storage temperature -30°C to +70°C
CTP Interface USB / I2C / RS232
CTP IC EXC81H84
Packging & Delivery
Min Order1 piece
Briefing
18.5" industrial LCD display with up to 850 nits brightness.
Detailed
18.5" TFT LCD Display Module with up to 850 nits brightness. Features OCR bonded capacitive touch technology, 10‑point multi‑touch capability, wide operating temperature range from -20°C to +60°C, and 6H surface hardness with etched anti‑glare treatment. Supports USB, I²C, and RS232 touch interfaces, making it ideal for industrial HMI, outdoor terminals, medical equipment, and automation systems.
Whether you need a single component or a complete human-machine interaction system, we're ready to support you from the first sample batch.
1. Drawing
2. Specifications
2.1 General Specifications
2.1.1 Definition
The specification is used for capacitive touch module with TFT LCD & Backlight Unit.
2.1.2 Features and General Description
2.2 Pin assignment
2.2.1 LCD Pin assignment
2.2.2 CTP Pin assignment
2.3 Absolute Maximum Ratings
2.4 Optical Characteristics
3 Applications
Industrial Automation HMI
EV Charing Station
Outdoor self-service devices
