group nameBinding Machinery
Min Order1 set
brand nameKingsun paper sheeting machine

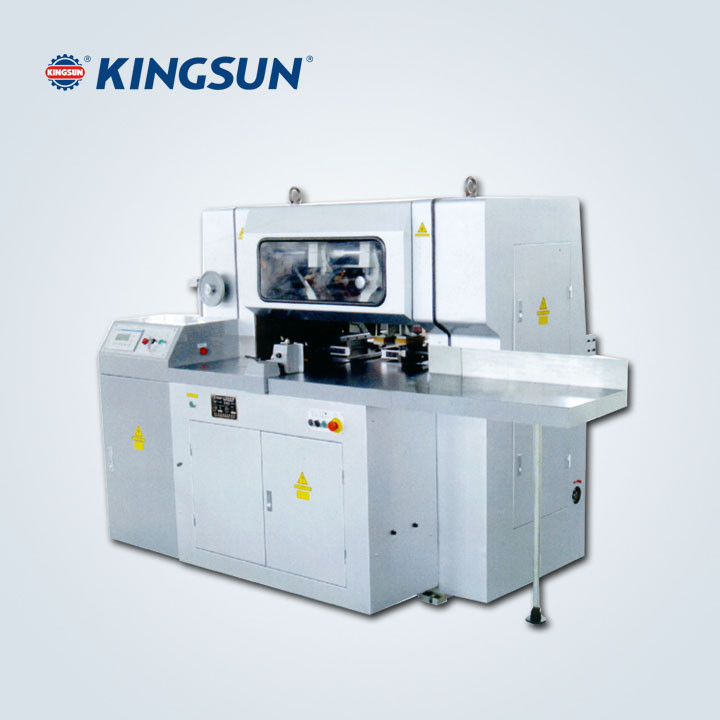

modelThree Knife Trimmer Model KQS420
payment methodL/C, D/P, T/T, Western Union
update timeFri, 31 Oct 2014 08:24:57 GMT
Min Order1 set
Main Features:
1.This three knife trimming machine consists of frame, transmission, book presser, cam, side cutter, front cutter, book carrier, vertical and horizontal book arranging device, book-out shelf and electric control etc.
2.The main transmission is roller bearing structure with bath lubrication, well-tight seal and non-leaking.
3.The manipulator is used for book arranging device to govern book out in good order.
4.The operator only puts book pile before the carrier, then this machine can auto finish all the actions reliably.
5.This machine is fully closed to prevent from coming of wasterpaper.
6.The foot switch is equipped to control magnetic clutch(brake) alone, thus it is more convenient and safer to operate it manually.
7.The oil feeder is equipped to lubricate machine timely and rationally except a few guide rail surfaces.
8.The fast-positioning cutter apparatus is used for front cutter and side cutter in order to reduce time of cutter replacing.
9.The leaning cutter device it is equipped to avoid paper tearing for having good quality of book.
10.The variable frequency speed control is used for master motor and the counting device is used for book-out shelf, both of them can display on the screen clearly.
11.The technical functions of the machine come up to advanced international standards.
Main specifications:
Model | KQS420 |
Max. cutting size | 420X300mm |
Min. cutting size | 80X80mm |
Max. cutting height | 100mm |
Cutting speed | 28 time/min |
Motor power | 4KW |
Outer dimensions | 2450X2050X1680mm |
Machine weight | 3000kg |
