oil pump made of CI SS bronze
- US $1000.00
1 - 999,999 set
group nameGEAR/ROTOR OIL PUMP
-
Min Order1 set
brand nameRONDA
model2CY-X
payment methodL/C, D/A, D/P, T/T, Western Union, RMB is available
-
update timeFri, 26 Jul 2013 10:10:01 GMT
Paramtents
Power specs can be changed or not yes
Material by clients yes
working condition continuous
working environment in or out door
working duty heavy
Packging & Delivery
Min Order1 set
Briefing
Detailed

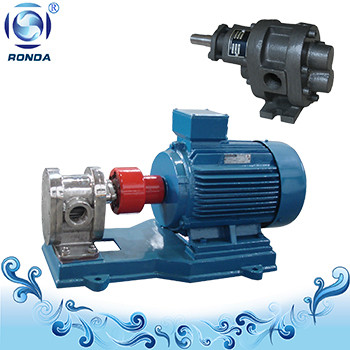

Oil Pump
2CY-X gear pump is for oil or equivalent liquid without solids and fiber with normal temperature below 80°C, (high temperature model below 300°C). It is mainly used as oil delivering pump or boost pump in oil system or plants. Stainless and bronze models are able to pump speical oil like gasoline.
| Working Principle: | Double Gears |
| Main applications: | Oil |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 380/415 V 3phase; 220/240 V 1phase; 50hz/60hz,etc |
| Max. permissible fluid temperature: | 80 °C/300°C |
| Type of connection: | Flange, Thread, Quick Coupled. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Shaft seal ring; Mechanical seal; Packing Seal |
| Free passage: | 00 mm |
| Maximum viscosity: | 5X104CST |
| Maximum drive rating: | 250 kW 335hp |
| Maximum caliber: | 12 inch (300mm) |
| Maximum discharge-side pressure: | 1.45mpa (14.5bar) |
| Flow rate range: | 1.1-570 m³/h (18.3-9500l/m) |
Below performance table is based on 380v/50hz.. In other voltage and frequency, the parameter will be different, pls contact us for that!
Some table is too long, we only show part of them here.
| Model | Capacity | Speed | Dischage pressure | NPSHr | Efficiency | Motor specs | ||
| m3/h | L/min | r/min | Mpa | m | % | Power KW | Model | |
| KCB-18.3 | 1.1 | 18.3 | 1400 | 1.45 | 5 | 44 | 1.5 | Y90L-4 |
| 2CY-1.1/1.45 | ||||||||
| KCB-33.3 | 2 | 33.3 | 1420 | 1.45 | 5 | 44 | 2.2 | Y100L1-4 |
| 2CY-2/1.45 | ||||||||
| KCB-55 | 3.3 | 55 | 1400 | 0.33 | 7 | 41 | 1.5 | Y90L-4 |
| 2CY-3.3/0.33 | ||||||||
| KCB-83.3 | 5 | 83.3 | 1420 | 0.33 | 7 | 43 | 2.2 | Y100L1-4 |
| 2CY-5/0.33 | ||||||||
