High efficiency stainless steel gear oil pump KCB
- US $2500.00
1 - 999,999 set
group nameGEAR/ROTOR OIL PUMP
-
Min Order1 set
brand nameRONDA
modelKCB
payment methodL/C, D/A, D/P, T/T, Western Union, RMB is available
-
update timeThu, 25 Jul 2013 16:56:56 GMT
Paramtents
Working duty Heavy
Material by clients Available
Voltage and frequency by clients Available
Packging & Delivery
Min Order1 set
Briefing
Detailed

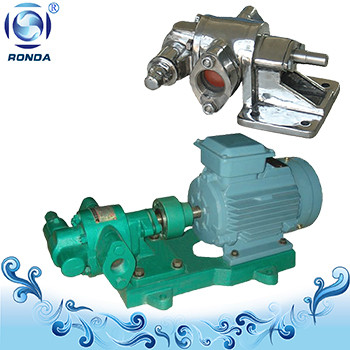

Gear Oil Pump
Gear oil pump is for oil or equivalent liquid without solids and fiber with normal temperature below 80°C, (high temperature model below 300°C). It is mainly used as oil delivering pump or boost pump in oil system or plants.
Stainless and bronze models are able to pump speical oil like gasoline.
Working Principle: | Double Gears |
Main applications: | Oil |
Driver: | Electric motor, diesel motor. |
Power Specs: | 380/415 V 3phase; 220/240 V 1phase; 50hz/60hz,etc |
Max. permissible fluid temperature: | 80 °C/300°C |
Type of connection: | Flange, Thread, Quick Coupled. |
Installation position: | Horizontal |
Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
Shaft seal type: | Shaft seal ring; Mechanical seal; Packing Seal |
Free passage: | 00 mm |
Maximum viscosity: | 5X104CST |
Maximum drive rating: | 250 kW 335hp |
Maximum caliber: | 12 inch (300mm) |
Maximum discharge-side pressure: | 1.45mpa (14.5bar) |
Flow rate range: | 1.1-570 m³/h (18.3-9500l/m) |
