Stainless steel chocolate pump 3A

FOB Price

US $2500.00
1 - 999,999 set

group nameGEAR/ROTOR OIL PUMP
Min Order1 set
brand nameRONDA
model3A
payment methodL/C, D/A, D/P, T/T, Western Union, RMB is available
update timeMon, 29 Jul 2013 16:48:50 GMT

contact supplier

Paramtents

Voltage can be changed or not yes
Frequency can be changed or not yes
Material by clients yes
Working duty heavy
Working condition continuous
Working environment in door

Packging & Delivery

Min Order1 set

Briefing

Chocolate pump is a rotary pump made of stainless steel for heavy viscosity liquids, colloid, foodstuff.

Detailed

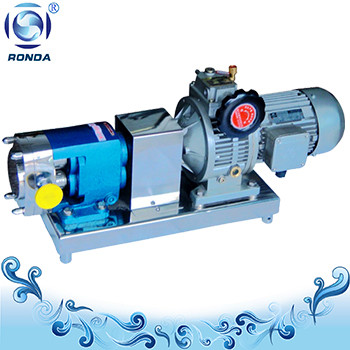

Chocolate pump

It is a lobe pump made of stainless steel. It is an ideal pump for high viscosity liquids, food, colloid. It is also an food standard pump. Pump is with gear box to control the speed for different mediums.

Below parameters are based on 380v/50hz, for any other power standard, pls contact us directly.

Working Principle:	Lobe rotor
Main applications:	Chocolate
Driver:	Electric motor, diesel motor.
Power Specs:	380/415 V 3phase; 50hz/60hz,etc
Max. permissible fluid temperature:	150°C
Type of connection:	Flange, Thread, Quick Coupled.
Installation position:	Horizontal
Casing/Inner parts material:	Stainless Steel/Stainless steel
Shaft seal type:	Mechanical seal
Free passage:	3 mm
Maximum viscosity:	1X10⁴CST
Maximum drive rating:	22 kW (30hp)
Maximum caliber:	5 inch (125mm)
Maximum discharge-side pressure:	0.8mpa (8bar)
Flow rate range:	0.3-43 m³/h (5-717l/m)

Below specs is based on 380v/50hz/3ph, for other standard, pls contact us directly.

Model	Capacity	Gear box speed range	Capacity	Diameter	Power of motor
Model	L/100cycle	r/min	L/H	(inch)	KW
D3A-3	3L	200-500	300-800	1"×1.5	0.55
D3A-6	6L	200-500	650-1600	1"×1.5	0.75
D3A-8	8L	200-500	850-2100	1-1/4"×1.5	1.5
D3A-12	12L	200-500	1300-3200	1-1/2"×1.5	2.2
D3A-20	20L	200-500	2100-5400	1-1/2"×1.5	3
D3A-30	30L	200-400	3200-6400	2"×1.5	4
D3A-36	36L	200-400	3800-7600	1-3/4"×1.5	4
D3A-52	52L	200-400	5600-11000	2"×1.5	5.5
D3A-66	66L	200-400	7100-14000	2-1/2"×1.5	7.5
D3A-78	78L	200-400	9000-18000	2-1/2"×1.5	7.5
D3A-100	100L	200-400	11000-22000	3"×2	11
D3A-135	135L	200-400	15000-30000	3-1/2"×2	15
D3A-160	160L	200-400	17000-34000	4"×3	18.5
D3A-200	200L	200-400	21600-43000	4"×3	22
