Stainless steel centrifugal chemical pump
- US $2500.0
1 - 999999 set
group nameCHEMICAL PUMP
-
Min Order1 set
brand nameRONDA
modelIH
payment methodL/C, D/A, D/P, T/T, Western Union, RMB is available
-
update timeSun, 07 Dec 2025 10:27:45 GMT
Paramtents
Working duty heavy
Working condition continuous
Working environment in or out door
Material by clients yes
Frequency,voltage can be changed or not yes
Packging & Delivery
Min Order1 set
Briefing
Detailed
Chemical pump made of SS304 SS316

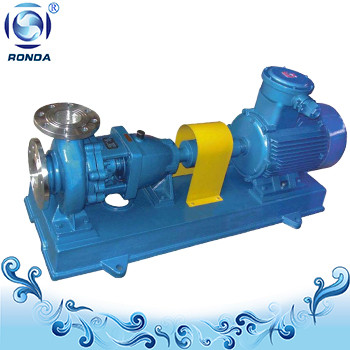

IH Single stage centrifugal stainless steel chemical pump
Chemical pump IH is made in stainless steel 304, 316 or 316L, metal lined rubber. The pump is the most common centrifugal chemical pump being used most widely. High IP and insulation, good efficiency, stable working performance. Generally it works for chemical plants.
| Working Principle: | Centrifugal |
| Main applications: | Chemical |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 380/415 V 3phase; 50hz/60hz, etc |
| Max. permissible fluid temperature: | 120°C |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Stainless Steel/Stainless steel, Bronze, rubber lined |
| Shaft seal type: | Mechanical seal |
| Free passage: | 1 mm |
| Maximum viscosity: | 5X103CST |
| Maximum drive rating: | 110kW (148hp) |
| Maximum caliber: | 8 inch (200mm) |
| Maximum head: | 125m |
| Flow rate range: | 6.3-200 m³/h (105-3333l/m) |
Below specifications is based on 380v/50hz. For any other power standard, pls contact us.
Model | Capacity | Head | Speed | Power | Caliber mm | |
| m/h | m | r/min | KW | Inlet | Outlet | |
| 50-32-125 | 12.5 | 20 | 2900 | 2.2 | 50 | 32 |
| 6.3 | 5 | 1450 | 0.55 | 50 | 32 | |
| 50-32-160 | 12.5 | 32 | 2900 | 3 | 50 | 32 |
| 6.3 | 8 | 1450 | 0.55 | 50 | 32 | |
| 50-32-200 | 12.5 | 50 | 2900 | 0.5 | 50 | 32 |
| 6.3 | 12.5 | 1450 | 0.75 | 50 | 32 | |
| 50-32-250 | 12.5 | 80 | 2900 | 11 | 50 | 32 |
| 6.3 | 20 | 1450 | 1.5 | 50 | 32 | |
| 65-50-125 | 25 | 20 | 2900 | 3 | 65 | 50 |
| 12.5 | 5 | 1450 | 0.55 | 65 | 50 | |
| 65-50-160 | 25 | 32 | 2900 | 5.5 | 65 | 50 |
| 12.5 | 8 | 1450 | 0.75 | 65 | 50 | |
| 65-40-200 | 25 | 50 | 2900 | 7.5 | 65 | 40 |
| 12.5 | 12.5 | 1450 | 1.1 | 65 | 40 | |
| 65-40-250 | 25 | 80 | 2900 | 15 | 65 | 40 |
| 12.5 | 20 | 1450 | 2.2 | 65 | 40 | |
| 65-40-315 | 25 | 125 | 2900 | 30 | 65 | 40 |
| 12.5 | 32 | 1450 | 4 | 65 | 40 | |
| 80-65-125 | 50 | 20 | 2900 | 5.5 | 80 | 65 |
| 25 | 5 | 1450 | 0.75 | 80 | 65 | |
| 80-65-160 | 50 | 32 | 2900 | 7.5 | 80 | 65 |
| 25 | 8 | 1450 | 1.5 | 80 | 65 | |
| 80-50-200 | 50 | 50 | 2900 | 15 | 80 | 50 |
| 25 | 12.5 | 1450 | 2.2 | 80 | 50 | |
| 80-50-250 | 50 | 80 | 2900 | 22 | 80 | 50 |
| 25 | 20 | 1450 | 3 | 80 | 50 | |
| 80-50-315 | 50 | 125 | 2900 | 37 | 80 | 50 |
| 25 | 32 | 1450 | 5.5 | 80 | 50 | |
| 100-80-125 | 100 | 20 | 2900 | 11 | 100 | 80 |
| 50 | 5 | 1450 | 1.5 | 100 | 80 | |
| 100-80-160 | 100 | 32 | 2900 | 15 | 100 | 80 |
| 50 | 8 | 1450 | 2.2 | 100 | 80 | |
| 100-65-200 | 100 | 50 | 2900 | 22 | 100 | 65 |
| 50 | 12.5 | 1450 | 4 | 100 | 65 | |
| 100-65-250 | 100 | 80 | 2900 | 37 | 100 | 65 |
| 50 | 20 | 1450 | 5.5 | 100 | 65 | |
| 100-65-315 | 100 | 125 | 2900 | 75 | 100 | 65 |
| 50 | 32 | 1450 | 11 | 100 | 65 | |
| 125-100-200 | 200 | 50 | 2900 | 45 | 125 | 100 |
| 100 | 12.5 | 1450 | 7.5 | 125 | 100 | |
| 125-100-250 | 200 | 80 | 2900 | 75 | 125 | 100 |
| 100 | 20 | 1450 | 11 | 125 | 100 | |
| 125-100-315 | 200 | 125 | 2900 | 110 | 125 | 100 |
| 100 | 32 | 1450 | 15 | 125 | 100 | |
| 125-100-400 | 100 | 50 | 1450 | 30 | 125 | 100 |
| 150-125-250 | 200 | 20 | 1450 | 18.5 | 150 | 125 |
| 150-125-315 | 200 | 32 | 1450 | 30 | 150 | 125 |
| 150-125-400 | 200 | 50 | 1450 | 45 | 150 | 125 |
| 200-150-250 | 400 | 20 | 1450 | 37 | 200 | 150 |
| 200-150-315 | 400 | 32 | 1450 | 55 | 200 | 150 |
| 200-150-400 | 400 | 50 | 1450 | 90 | 200 | 150 |
