1 - 999,999 set
group nameSEWAGE/SLURRY PUMP
Min Order1 set
brand nameRONDA
modelPW
payment methodL/C, D/A, D/P, T/T, Western Union, RMB is available
update timeThu, 22 Aug 2013 17:25:16 GMT
Material by clients yes
Working duty heavy
Frequency,voltage can be changed or not yes
Working condition continuous
Working environment in or out door
Min Order1 set

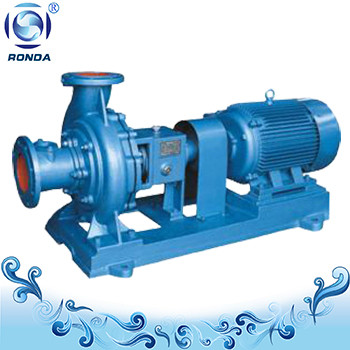

PW Horizontal Sewage Pump
PW sewage pump is a horizontal sewage pump. Its for low gravity sewage. It is easy to maintenance because of its simple structure.
Working Principle: | Centrifugal |
Main applications: | Sewage |
Driver: | Electric motor |
Power Specs: | 380/415 V 3phase; 50hz/60hz |
Max. permissible fluid temperature: | 80°C |
Type of connection: | Flange |
Installation position: | Horizontal |
Casing/Inner parts material: | Cast iron /Cast iron |
Shaft seal type: | Mechanical seal |
Free passage: | 20% of caliber |
Maximum gravity: | 1.1 |
Maximum drive rating: | 75kW (100hp) |
Maximum caliber: | 8 inch (200mm) |
Maximum dischrage head: | 50m |
Flow rate range: | 43-700 m³/h (720-11664 l/m) |
Below specifications is based on 380v/50hz and only part of whole, for any other standard, pls contact us.
Model | Capacity Q | Head | Speed | Power(kw) | Efficiency | (NPSH)r | ||
(m3/h) | (L/s) | (m) | (r/min) | Axial | Motor | (%) | (m) | |
50PWF-65 | 10 | 2.75 | 18 | 1440 | 2.35 | 4 | 20.5 | 5 |
14.5 | 4 | 16 | 2.47 | 25.5 | ||||
19 | 5.25 | 14.5 | 2.58 | 29 | ||||
80PWF-100 | 42 | 11.7 | 14 | 1440 | 3.5 | 5.5 | 45.5 | 4.5 |
56 | 15.5 | 13.5 | 4.1 | 50 | ||||
72 | 20 | 12.5 | 4.5 | 54.5 | ||||
100PWF-125 | 80 | 22.2 | 14 | 1440 | 5.5 | 7.5 | 55 | 4 |
