group nameSEWAGE/SLURRY PUMP
Min Order1 set
brand nameRONDA
modelNL
payment methodL/C, D/A, D/P, T/T, Western Union, RMB is available
update timeSat, 07 Dec 2013 17:02:26 GMT
Frequency,voltage can be changed or not yes
Material by clients yes
Working duty heavy
Working condition continuous
Working environment in or out door
Min Order1 set
Submersible slurry pump

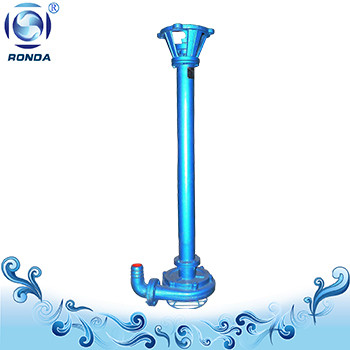

NL PNL Vertical Slurry Pump
NL and PNL slurry pump is half-submersible model. It can be used in rural or urban to pump slurry with solids. Or can be as a simple water pump or fire pump in rural. The submersible length of pump can be lengthened.
Working Principle: | Submersible, impeller on the bottom |
Main applications: | Slurry |
Driver: | Electric motor |
Power Specs: | 380/415 V 3phase; 220/240V 1phase; 50hz/60hz |
Max. permissible fluid temperature: | 80°C |
Type of connection: | Flange |
Installation position: | Vertical |
Casing/Inner parts material: | Cast iron, Stainless steel/Cast iron, Stainless steel |
Shaft seal type: | Mechanical seal |
Free passage: | 50% of caliber |
Maximum gravity: | 1.3 |
Maximum drive rating: | 22kW (30hp) |
Maximum caliber: | 6 inch (150mm) |
Maximum dischrage head: | 20m |
Flow rate range: | 20-180 m³/h (333.3-3000 l/m) |
Below specifications is based on 380v/50hz and only part of whole, for any other standard, pls contact us.
Speed | Capacity | Head | Efficiency | Power | Pump length | Pump weight | |
Model | n | Q | H | n | KW | mm | kg |
r/min | m3/h | m | % | ||||
NL50-8 | 1450 | 20-30 | 15-12 | 42 | 1.5 | 1310 | 63 |
NL50A-8 | |||||||
NL50-12 | 1450 | 25-38 | 15-13 | 41 | 3 | 1310 | 80 |
NL50A-12 | |||||||
NL76-9 | 1450 | 50-70 | 15-14 | 42 | 3 | 1350 | 90 |
NL76A-9 | |||||||
NL65-16 | 1450 | 50-60 | 15-15 | 42 | 5.5 | 1430 | 152 |
NL65A-16 | |||||||
NL80-12 | 1450 | 80-120 | 15-16 | 56 | 7.5 | 1430 | 145 |
NL80A-12 | |||||||
NL100-16 | 1450 | 80-100 | 15-17 | 61 | 15 | 1510 | 270 |
NL100A-16 | |||||||
NL150-12 | 1450 | 100-150 | 15-18 | 66 | 18.5 | 1690 | 350 |
NL150A-12 | |||||||
NL150-16 | 1450 | 120-180 | 15-19 | 68 | 22 | 1690 | 370 |
NL150A-16 |
