Arc gear resin pump
- US $800.00
1 - 999,999 set
group nameGEAR/ROTOR OIL PUMP
-
Min Order1 set
brand nameRONDA
modelYHCB
payment methodL/C, D/A, D/P, T/T, Western Union, RMB is available
-
update timeTue, 19 Nov 2013 15:01:37 GMT
Paramtents
Working duty heavy
Working condition continuous
Working environment in or out door
Frequency can be changed or not yes
Voltage can be changed or not yes
Material by clients yes
Packging & Delivery
Min Order1 set
Briefing
Detailed

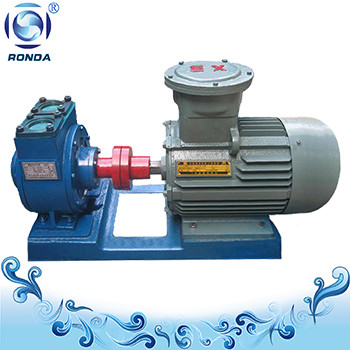

Gear Oil Pump
YHCB arc gear pump is for oil or equivalent liquid without solids and fiber with normal temperature below 80°C. It is mainly used as oil delivering pump or boost pump in oil system or plants. Stainless and bronze models are able to pump speical oil like gasoline. It is also an ideal oil tank car pump.
| Working Principle: | Double Gears |
| Main applications: | Oil |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 380/415 V 3phase; 50hz/60hz |
| Max. permissible fluid temperature: | 80°C |
| Type of connection: | Flange, Thread, Quick Coupled. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Shaft seal ring; Mechanical seal; Packing Seal |
| Free passage: | 00 mm |
| Maximum viscosity: | 1.5X103CST |
| Maximum drive rating: | 45 kW (60hp) |
| Maximum caliber: | 8 inch (200mm) |
| Maximum discharge-side pressure: | 0.6mpa (6bar) |
| Flow rate range: | 15-200 m³/h (250-3333 l/m) |
Below performance table is based on 380v/50hz.. In other voltage and frequency, the parameter will be different, pls contact us for that!
Some table is too long, we only show part of them here.
Model | Flowrate Q(m 3/h) | Discharge pressure PMPa) | Speed n(r/min) | Efficiency η(%) | Suction head m | Motor specs | |
Model | Power (kw) | ||||||
50YHCB-8 | 8 | 0.4 | 960 | 76 | 5.5 | 132S-6 | 3 |
60YHCB-15 | 15 | 0.4 | 960 | 78 | 6 | 132M 1 -6 | 4 |
60YHCB-30 | 28 | 0.6 | 960 | 72 | 6 | 132M 2 -6 | 5.5 |
60YHCB-50 | 45 | 0.6 | 1430 | 78 | 6.5 | 132M-4 | 7.5 |
65YHCB-35 | 35 | 0.6 | 960 | 70 | 7 | 160M-6 | 7.5 |
76YHCB-40 | 40 | 0.6 | 960 | 70 | 7 | 160M-6 | 7.5 |
80YHCB-60 | 60 | 0.6 | 960 | 72 | 7 | 160L-6 | 11 |
80YHCB-80 | 80 | 0.4 | 960 | 70 | 6.5 | 180L-6 | 15 |
100YHCB-100 | 100 | 0.4 | 960 | 72 | 5.5 | 200L-6 | 22 |
125YHCB-150 | 150 | 0.4 | 960 | 69 | 5.5 | 250M-6 | 37 |
150YHCB-200 | 200 | 0.4 | 960 | 70 | 5.5 | 280M-6 | 55 |
