Horizontal pipeline pump LQW

FOB Price

US $500.00
1 - 999,999 set

group nameCENTRIFUGAL WATER PUMP
Min Order1 set
brand nameRONDA
modelLQW
payment methodL/C, D/A, D/P, T/T, Western Union
update timeTue, 24 Sep 2013 08:37:40 GMT

contact supplier

Paramtents

working principle centrifugal single stage
installation way vertical

Packging & Delivery

Min Order1 set

Briefing

Horizontal pipeline pump LQW is with the most advanced international design model with high efficiency.

Detailed

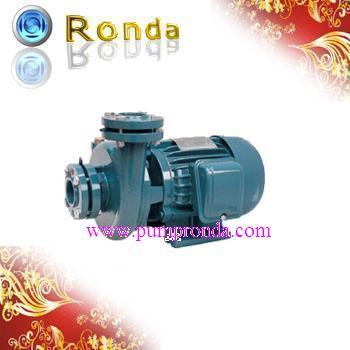

Horizontal pipeline pump LQW

LQW horizontal inline pump is using the most advanced international design model with high efficiency. One shaft connecting, small size. It is the main exporting model.

LQW is horizontal model.

Working Principle:	Centrifugal
Main applications:	Water
Driver:	Electric motor
Power Specs:	380/415 V 3phase; 220/240 V 1phase; 50hz/60hz
Max. permissible fluid temperature:	80°C
Type of connection:	Flange
Installation position:	Horizontal
Casing/Inner parts material:	Cast iron /Cast iron
Shaft seal type:	Mechanical seal
Free passage:	00 mm
Maximum gravity:	1.1
Maximum drive rating:	7.5 kW (10hp)
Maximum caliber:	3 inch (80mm)
Maximum head:	32m
Flow rate range:	6.6-47.4 m³/h (110-790l/m)

Model	Power		Flow Rate	Head	Speed	Cooling Max.	Cooling Min.	Outlet Dia.	Current
Model	KW	HP	m3/hr	m	r/min	Ton	Ton	mm/inch	A
LQW-32	0.37	0.5	6.6	20	2850	5	10	32 or 1.25	0.89
LQW-40	0.75	1	15	22	2850	15	20	40 or 1.5	2
LQW-50	1.5	2	18.6	24	2850	25	30	50 or 2	3
LQW-65	2.25	3	30	24	2850	40	50	65 or 2.5	5
LQW-80	3.75	5	47.5	34	2850	60	80	80 or 3	8
