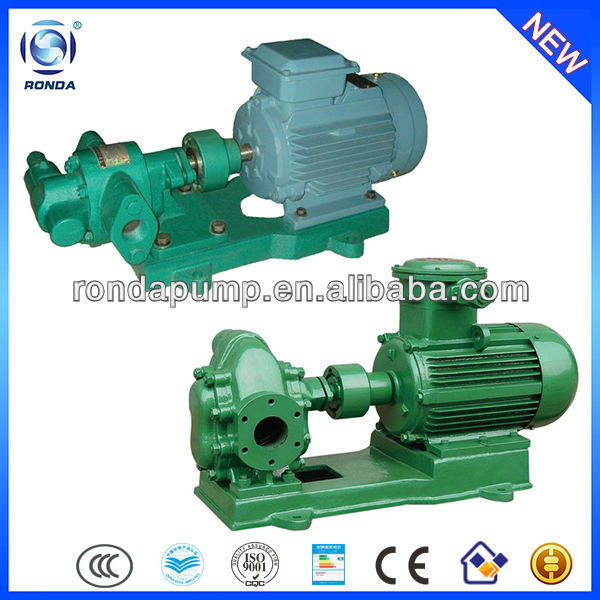

KCB diesel engine lubricating oil gear pump
- US $5,000.00
1 - 40,000 set
- US $100.00
40,001 - 999,999 set
group nameGEAR/ROTOR OIL PUMP
-
Min Order1 set
brand nameRONDA
modelKCB
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeMon, 17 Mar 2014 15:06:06 GMT
Paramtents
Theory Rotary Pump
Structure Gear Pump
Usage Oil
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Oil
Packging & Delivery
Min Order1 set
Briefing
2.Deliver non-corrosive oil
3.Designed with safety valve
4.Equipped diesel engine
Detailed
KCB diesel engine lubricating oil gear pump
1. Introduction:
1. KCB diessel engine lubricating oil gear pump manufactured by RONDA is simple and compact structure, easy operation.
2. Pump is capable of delivering non-corrosive oil without solid particles and fiber, such as lube, heavy oil, industry light oil, cooking oil, etc.
3.By adopting bronze gears, it is capable of pumping fluid with low-flash point such as gasoline, benzene, etc.
4. The pump is designed with safety valve for protection overload.
5. It’s broadly used in oil depots, docks, ships, plants, farms, mines, etc.
2. Products details:
| Working Principle: | Double Gears |
| Main applications: | Oil |
| Driver: | Electric motor, diesel motor. |
| Power Specs: | 380/415V 3phase; 220/240V 1phase;50hz/60hz,etc |
| Max.permissible fluid temperature: | 80°C(176°F)/300°C(572°F) |
| Type of connection: | Flange, Thread, Quick Coupled. |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Shaft seal ring; Mechanical seal; Packing Seal |
| Free passage: | 00 mm |
| Maximum viscosity: | 1.5X103CST |
| Maximum drive rating: | 75KW(100HP) |
| Maximum caliber: | 150mm(6inch) |
| Maximum discharge-side pressure: | 1.45Mpa(14.5bar) |
| Flow rate range: | 18.3-2500L/min(4.8-660US.GPM) |
3. Performance data:
| Model | Caliber | Capacity | Pressure | Power |
| (Inch) | (L/min) | (MPa) | (KW) | |
| KCB-18.3 | 3/4" | 18.3 | 1.45 | 1.5 |
| KCB-33.3 | 3/4" | 33.3 | 1.45 | 2.2 |
| KCB-55 | 1" | 55 | 0.33 | 1.5 |
| KCB-55 | 1" | 55 | 0.5 | 2.2 |
| KCB-83.3 | 1 1/2" | 83.3 | 0.33 | 2.2 |
| KCB-83.3 | 1 1/2" | 83.3 | 0.5 | 3 |
| KCB-200 | 2" | 83.3 | 0.33 | 3 |
| KCB-200 | 2" | 200 | 0.33 | 4 |
| KCB-200 | 2" | 200 | 0.33 | 5.5 |
| KCB-200 | 2 1/2" | 200 | 0.33 | 7.5 |
| KCB-300 | 3" | 300 | 0.33 | 5.5 |
| KCB-300 | 3" | 300 | 0.33 | 7.5 |
| KCB-483.3 | 3" | 483.3 | 0.33 | 7.5 |
| KCB-483.3 | 3" | 483.3 | 0.33 | 11 |
| KCB-633 | 4" | 633 | 0.28 | 11 |
| KCB-633 | 4" | 633 | 0.28 | 22 |
| KCB-960 | 4" | 960 | 0.3 | 18.5 |
| KCB-960 | 4" | 960 | 0.3 | 30 |
| KCB-1667 | 6" | 1667 | 0.3 | 30 |
| KCB-1667 | 6" | 1667 | 0.6 | 55 |
| KCB-2000 | 6" | 2000 | 0.3 | 30 |
| KCB-2000 | 6" | 2000 | 0.6 | 55 |
| KCB-2500 | 6" | 2500 | 0.3 | 37 |
| KCB-2500 | 6" | 2500 | 0.7 | 75 |
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
Meticulous details & fine appearance:
Safe packing with standard plywood case:
