Theory Rotary Pump
Structure Gear Pump
Usage Oil
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Oil transfer
Min Order1 set

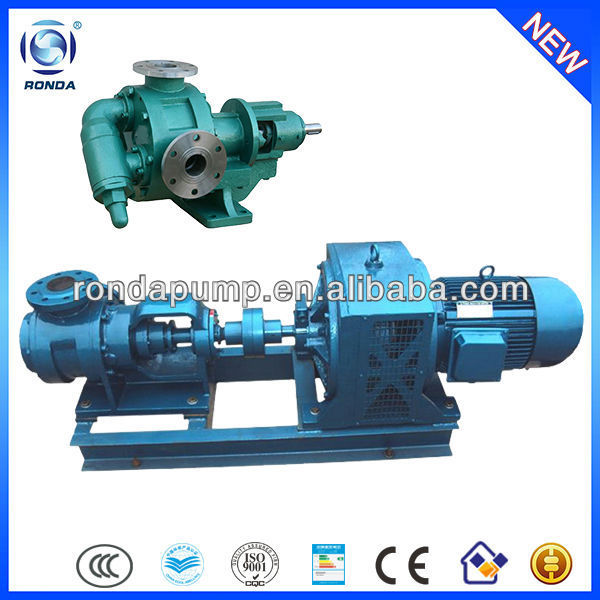

NYP Ronda High Viscosity Oil Transfer Gear Pump
1. Introduction:
1. Ronda high viscosity oil transfer gear pump is working with double gears, and is suitable for the high viscosity fields.
2. It's stable, pulseless and small vibration, low noise.
3. Pump made of proper materials could deliver corrosive medium as well.
4. We also provide double jacket one, which could be heated by heat steam or thermal oil.
2. Product details:
Working Principle: | Double gears |
Main applications: | Oil |
Driver: | Electric motor, diesel motor. |
Power Specs: | 380/415 V 3phase; 50hz/60hz |
Max.permissible fluid temperature: | 200°C(392°F) |
Type of connection: | Flange, Thread, Quick Coupled. |
Installation position: | Horizontal |
Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
Shaft seal type: | Shaft seal ring; Mechanical seal; Packing Seal |
Free passage: | 00 mm |
Maximum viscosity: | 6X104C.S.T |
Maximum drive rating: | 68KW(90HP) |
Maximum caliber: | 200mm(8inch) |
Maximum discharge-side pressure: | 1.0Mpa(10bar) |
Flow rate range: | 6.1-3626L/min(1.6-957.3US.GPM) |
3.Performance data:
Model | Displacement | Viscosity | Speed | Capacity | Pressure | Caliber | Suction | Shaft power | Connection |
(L/100rev) | (c.s.t) | (r/min) | (L/min) | (MPa) | (mm) | (m) | (KW) | ||
NYP-0.78 | 0.78 | 600/2000 | 1390/910 | 6.8/6.1 | 0.6 | 15 | 5 | 0.27/0.31 | Thread |
NYP-2.3 | 2.3 | 600/2000 | 1400/910 | 31.7/19.7 | 0.6 | 25 | 5 | 0.96/0.68 | Thread |
NYP-3.6 | 3.6 | 600/2000 | 1450/960 | 49.3/33.7 | 0.8 | 40 | 5 | 1.77/1.54 | Flange |
NYP-7.0 | 7 | 2000/6000 | 960/640 | 65/44 | 0.8 | 40 | 5 | 2.3/1.8 | Thread |
NYP-24 | 24 | 2000/6000 | 475/357 | 110/83 | 0.8 | 50 | 5 | 2.9/2.6 | Flange |
NYP-50 | 50 | 2000/6000 | 475/357 | 237-181 | 0.8 | 50 | 5 | 6.6/5.3 | Flange |
NYP-80 | 80 | 2000/6000 | 417/305 | 319/326 | 0.8 | 80 | 5 | 8.9/7.5 | Flange |
NYP-110 | 110 | 2000/6000 | 417/305 | 447/331 | 0.8 | 80 | 5 | 11.0/9.4 | Flange |
NYP-160 | 160 | 2000/6000 | 355/319 | 552/500 | 0.8 | 100 | 5 | 13.0/13.5 | Flange |
NYP-220 | 220 | 6000/20000 | 244/160 | 473/343 | 0.8 | 100 | 5 | 13.6/11.9 | Flange |
NYP-320 | 320 | 20/60 | 430/430 | 1200/1225 | 1 | 125 | 5 | 26.0/26.5 | Flange |
NYP-320 | 320 | 6000/20000 | 222/168 | 675/522 | 0.8 | 125 | 5 | 18.7/17.3 | Flange |
NYP-440 | 440 | 20/60 | 360/360 | 1378/1401 | 1 | 150 | 5 | 29.8/27 | Flange |
NYP-440 | 440 | 6000/20000 | 200/145 | 832/610 | 0.8 | 150 | 5 | 20.8/17.9 | Flange |
NYP-650 | 650 | 20/60 | 315/315 | 1794/1832 | 0.8 | 125 | 5 | 33.0/33.2 | Flange |
NYP-650 | 650 | 20000/60000 | 117/100 | 731/640 | 0.8 | 125 | 5 | 19.1/19.5 | Flange |
NYP-730 | 730 | 20/60 | 315/315 | 1980/2026 | 0.8 | 150 | 5 | 37.3/37.3 | Flange |
NYP-730 | 730 | 20000/60000 | 125/100 | 868/731 | 0.8 | 150 | 5 | 23.3/22.3 | Flange |
NYP-1670 | 1670 | 20/60 | 250/250 | 3529/3626 | 0.8 | 200 | 5 | 66/68 | Flange |
NYP-1670 | 1670 | 20000/60000 | 112/85 | 1790/1972 | 0.8 | 200 | 5 | 48.0/40.6 | Flange |
