I-IB small eccentric single screw slurry pump
- US $1,000.00
1 - 40,000 set
- US $50.00
40,001 - 999,999 set
group nameSCREW PUMP
-
Min Order1 set
brand nameRONDA
modelI-IB
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeMon, 17 Mar 2014 15:41:01 GMT
Paramtents
Theory Rotary Pump
Structure Screw Pump
Usage Slurry,foodstuff,ect
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Slurry,foodstuff,ect
Material by clients Yes
Packging & Delivery
Min Order1 set
Briefing
2.Special for high viscosity fluid
3.Stable flow,simple
4.Pump speed is adjustable
Detailed

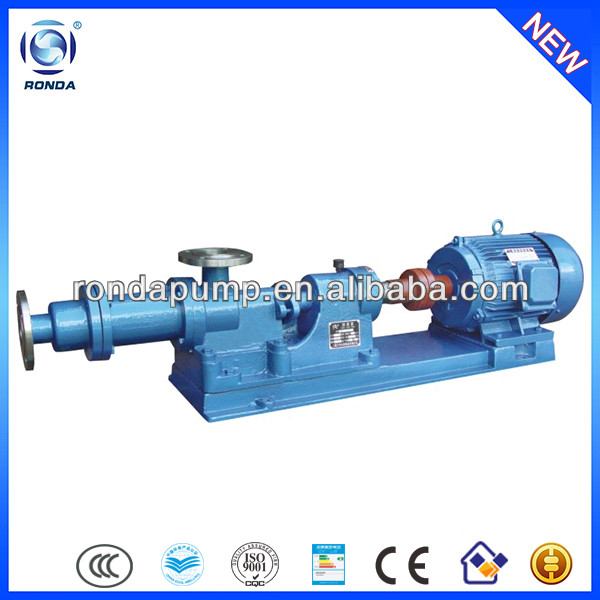

I-IB small eccentric single screw slurry pump
1. Introduction:
1. I-IB small eccentric single screw slurry pump's main working parts are eccentric screw (rotor) and static bush (stator) made of metal lined with rubber.
2. It is special designed and used for high viscosity fluid like slurry, and widely used in the chemical plant, production factory, food factory, paper mill, canning factory, pharmaceutical factory, brewery plant, etc.
3. Stable flow and discharge pressure, small vibration.
4. Speed of pump can be adjustable if pump is equipped with electric magnetic speed adjustable motor, gear motor, CVT motor or inverter motor.
2. Product details:
| Working Principle: | Eccentric Single Screw |
| Main applications: | Oil, Slurry, foodstuff |
| Driver: | Electric motor |
| Power Specs: | 380/415V 3phase; 220/240V 1phase;50hz/60hz |
| Max.permissible fluid temperature: | 100°C(212°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Mechanical seal |
| Free passage: | 6mm |
| Maximum viscosity: | 1X106C.S.T |
| Maximum drive rating: | 15KW(20HP) |
| Maximum caliber: | 150mm(6inch) |
| Maximum discharge-side pressure: | 1.2MPa(12bar) |
| Flow rate range: | 1.5-24m3/h(6.6-105.6US.GPM) |
3. Performance data:
| Model | Caliber | Head | Pressure | Power | Capacity | Suction | Speed |
| (mm) | (m) | (MPa) | (KW) | (m3/h) | (m) | (r/min) | |
| I- I B1(Inch) | 25 | 50 | 0.5 | 1.1 | 1.5 | 2 | 960 |
| 100 | 1 | 2.2 | |||||
| I- IB1.5(Inch) | 40 | 80 | 0.8 | 2.2 | 3.2 | 3 | |
| 120 | 1.2 | 4 | |||||
| I- IB2(Inch) | 50 | 80 | 0.8 | 3 | 5.6 | 3 | |
| 120 | 1.2 | 5.5 | |||||
| I- IB2.5(Inch) | 65 | 60 | 0.6 | 3 | 6.5 | 3 | |
| 120 | 1.2 | 7.5 | |||||
| I- IB3(Inch) | 80 | 60 | 0.6 | 5.5 | 12 | 3 | |
| 120 | 1.2 | 11 | |||||
| I- IB4(Inch) | 100 | 60 | 0.6 | 7.5 | 16 | 3 | |
| I- IB5(Inch) | 125 | 60 | 0.6 | 11 | 19 | 3 | |
| I- IB6(Inch) | 150 | 60 | 0.6 | 15 | 24 | 3 |
4.FAQ:
5.Pictures:
Excellent product made of carefully selected high-quality materials:
Meticulous details & fine appearance:
Safe packing with standard plywood case:
