CQ stainless steel mono block portable chemical magnetic pump
- US $500.00
1 - 40,000 set
- US $50.00
40,001 - 999,999 set
group nameMAGNETIC PUMP
-
Min Order1 set
brand nameRONDA
modelCQ-SS
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeMon, 17 Mar 2014 15:56:51 GMT
Paramtents
Theory Electromagnetic Pump
Structure Magnetic
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Chemical,water
Packging & Delivery
Min Order1 set
Briefing
1.Anti-corrosion,non-leak,
2.Small volume
3.Light weight
Detailed

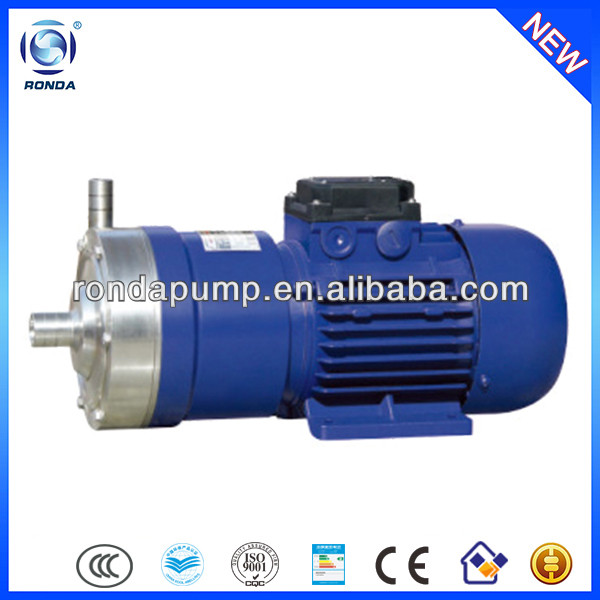

CQ stainless steel mono block portable chemical magnetic pump
1. Introduction:
1. CQ stainless steel mono block portable chemical magnetic pump is a full-sealed pump.
2. As being made of anticorrosive and highly strong engineering plastic, rigid ceramic and stainless steel.
3. The pump features a compact structure, nice outlook, small volume, low noise, reliable run and easy use and maintenance.
4. It can be used to pump acids, alkali, oils, rare and noble liquids, toxic liquids, volatile liquids.
2. Product details:
| Working Principle: | Centrifugal, Magnetic |
| Main applications: | Chemical, water, oil |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 220/240 V 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(203°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Stainless steel/Stainless steel |
| Shaft seal type: | Static sealing |
| Free passage: | 0 mm |
| Maximum drive rating: | 30KW(40HP) |
| Maximum caliber: | 150mm(6inch) |
| Maximum discharge-side pressure: | 0.5MPa(5bar) |
| Maximum head: | 50m(164ft) |
| Flow rate range: | 20-3350L/min(45.3-884.4 US.GPM) |
3. Performance data:
| Model | Inlet | Outlet | Head | Capacity | Power | Speed | Voltage | stainless steel |
| (mm) | (mm) | (m) | (L/min) | (KW) | (r/min) | (Phase) | ||
| 14CQ-5 | 14 | 10 | 5 | 20 | 0.18 | 2800 | 1ph/3ph | |
| 16CQ-8 | 16 | 12 | 8 | 30 | 0.18 | 2800 | 1ph/3ph | |
| 20CQ-12 | 20 | 12 | 12 | 50 | 0.37 | 2800 | 1ph/3ph | |
| 25CQ-15 | 25 | 20 | 15 | 110 | 1.1 | 2800 | 3phase | |
| 32CQ-15 | 32 | 25 | 15 | 110 | 1.1 | 2800 | 3phase | |
| 32CQ-25 | 32 | 25 | 25 | 90 | 1.1 | 2800 | 3phase | |
| 40CQ-20 | 40 | 32 | 20 | 180 | 2.2 | 2800 | 3phase | |
| 40CQ-32 | 40 | 32 | 32 | 200 | 4 | 2800 | 3phase | |
| 50CQ-25 | 50 | 40 | 25 | 240 | 4 | 2800 | 3phase | |
| 50CQ-32 | 50 | 40 | 32 | 220 | 4 | 2800 | 3phase | |
| 50CQ-50 | 50 | 32 | 50 | 130 | 5.5 | 2800 | 3phase | |
| 65CQ-25 | 65 | 50 | 25 | 280 | 5.5 | 2800 | 3phase | |
| 65CQ-32 | 65 | 50 | 32 | 450 | 5.5/7.5 | 2800 | 3phase | |
| 80CQ-32 | 80 | 65 | 32 | 850 | 11 | 2800 | 3phase | |
| 80CQ-50 | 80 | 65 | 50 | 850 | 15 | 2800 | 3phase | |
| 100CQ-35 | 100 | 80 | 35 | 1000 | 15 | 2800 | 3phase | |
| 100CQ-50 | 100 | 80 | 50 | 1000 | 18.5 | 2800 | 3phase | |
| 125CQ-32 | 125 | 100 | 32 | 1700 | 22 | 2800 | 3phase | |
| 125CQ-32 | 125 | 100 | 32 | 2500 | 30 | 1450 | 3phase | |
| 150CQ-25 | 150 | 125 | 25 | 3350 | 30 | 1450 | 3phase |
