2X double stage rotary vane vacuum pump
- US $1,500.00
1 - 40,000 set
- US $100.00
40,001 - 999,999 set
group nameVACUUM PUMP
-
Min Order1 set
brand nameRONDA
model2X
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeMon, 17 Mar 2014 15:58:02 GMT
Paramtents
Theory Vacuum Pump
Structure Rotary vane
Usage Air Pump
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Middle
Application Air and gas
Duty Heavy
Voltage and frequency by client Available
Packging & Delivery
Min Order1 set
Briefing
Detailed

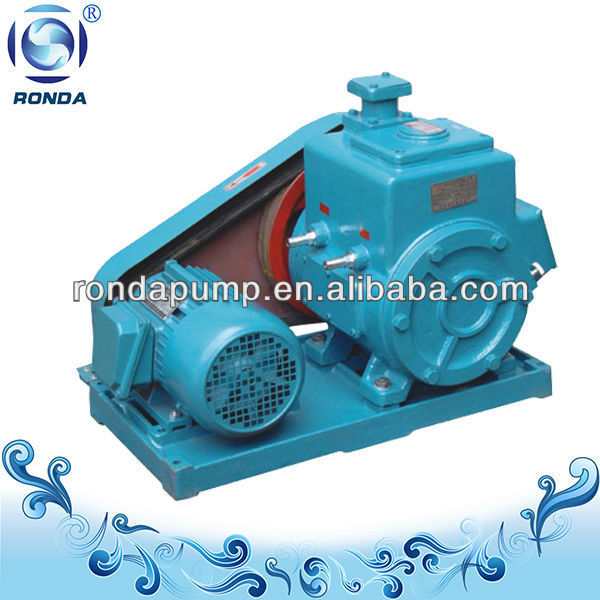

2X Double Stage Rotary Vane Vacuum Pump
2X rotary vane vacuum pump is mono-block pump with double vane, this series vacuum pump is to suck or compress air from or to container. Application is air or any other gas which is non-corrosive, non-soluble in water and without solids. Air or gas contains a small amount of liquid is allowed.
Pump has special structure to keep from the lubricating oil go into container. It is widely used in vacuum packaging of foodstuff, pharmaceutical, paper, printing machinery transport, glass, industrial conveyor, vacuum clamps, drying, and other units.
| Working Principle: | Slices vacuum pump |
| Main applications: | Air & Gas |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 220/240V 1phase; 50hz/60hz |
| Max. permissible fluid temperature: | 40°C |
| Type of connection: | Thread |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, aluminium/Cast iron, aluminium |
| Shaft seal type: | Mechanical seal, Packing seal |
| Free passage: | 0mm |
| Limited vacuum: | 0.6pa (6X10-7Mpa) |
| Maximum drive rating: | 5.5kW (7.38hp) |
| Maximum caliber: | 3inch (80mm) |
| Flow rate range: | 4-70 l/s |
Performance table on 380v/50hz/3ph, other power standard is available, pls contact us directly
| Model | 2X-2 | 2X-4A | 2X-8A | 2X-8 | 2X-15A | 2X-15 | 2X-30 | 2X-70 | ||
| Capacity | 2 | 4 | 8 | 15 | 30 | 70 | ||||
| Ultimate vacuum | Close | Pa(Torr) | 6×10-2(≤5×10-4)110 | |||||||
| Open | 6×10-1(5×10-3) | (≤1×10) | ||||||||
| Motor power(KW) | 0.37 | 0.55 | 1.1 | 1.5 | 3 | 5.5 | ||||
| Temperature (°C) | ≤40 | |||||||||
| Inlet caliber(mm) | 18 | 25 | 40 | 40 | 65 | 80 | ||||
| Speed(r/min) | 450 | 590 | 420 | |||||||
| Oil consumption(L) | 0.7 | 1 | 2 | 2.8 | 3 | 4.2 | ||||
| Noise dB(A) | 68 | ≤68 | ≤70 | ≤75 | ≤78(~70) | ≤80(~75) | ||||
| Outline dimensions(cm) | 56×31×39 | 56×34×37 | 79×43×54 | 79×53×54 | 78×50×56 | 91×65×70 | ||||
| Electromagnetic vale fitted | DDC-JQ25 | DDC-JQ40 | DDC-JQ65 | DDC-JQ80 | ||||||
| Weight(kg) | 58 | 55 | 80 | 110 | 232 | 330 | ||||
| Cooling way | Air cool | Water cool | Air cool | Water cool | ||||||
| Cooling water (L/min) | - | More than0.5 | - | More than0.8 | More than1 | |||||
