ISW horizontal inline pump
- US $5000.0
1 - 40000 set
- US $50.0
40001 - 999999 set
group nameCENTRIFUGAL WATER PUMP
-
Min Order1 set
brand nameRONDA
modelISW ISWR ISWH
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeSat, 06 Dec 2025 09:36:01 GMT
Paramtents
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure High Pressure
Application Multi-function
Working condition continous
Voltage, frequency can be changed or not Yes
Duty Heavy
Material by clients Yes
Working environment in or out door
Packging & Delivery
Min Order1 set
Briefing
Detailed

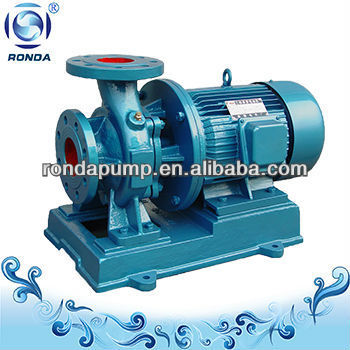

Inline Pump
ISW series centrifugal inline pump is the most common water pump.
ISW is common model for water with normal temperature under 80°C
ISWR is for hot water with temperature under 350°C
ISWH is made of stainless steel for chemical or corrosive water under 100°C
This pump is the most simple pump for water supply, irrigation working stable and efficiently.
| Centrifugal | |
| Main applications: | Water |
| Driver: | Electric motor |
| Power Specs: | 380/415 V 3phase; 50hz/60hz etc. |
| Max. permissible fluid temperature: | 80°C /150°C /100°C |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
| Shaft seal type: | Mechanical seal; Packing Seal |
| Free passage: | 0.2 mm |
| Maximum gravity: | 1.1 |
| Maximum drive rating: | 160kW (215hp) |
| Maximum caliber: | 20 inch (500mm) |
| Maximum head: | 150m |
| Flow rate range: | 1.5-1500 m³/h (25-25000l/m) |
Below specifications are based on 380v/50hz, or 220V/50hz. For other standards pls contact us directly.
We only show part of our parameters below, for full specifications, pls contact us.
| Model | Capacity | Head | Efficiency | Speed | Power | NPSHr | |
| (m 3 /h) | (l/s) | (m) | (%) | (r/min) | (kw) | (m) | |
| 15-80 | 1.5 | 0.42 | 8 | 34 | 2800 | 0.18 | 2.3 |
| 20-110 | 2.5 | 0.69 | 15 | 34 | 2800 | 0.37 | 2.3 |
| 20-160 | 2.5 | 0.69 | 32 | 25 | 2900 | 0.75 | 2.3 |
| 25-110 | 4 | 1.11 | 15 | 42 | 2900 | 0.55 | 2.3 |
| 25-125 | 4 | 1.11 | 20 | 36 | 2900 | 0.75 | 2.3 |
| 25 -125A | 3.6 | 1 | 16 | 35 | 2900 | 0.55 | 2.3 |
......
......
......
| 40-125(I)A | 11 | 3.05 | 16 | 57 | 2900 | 1.1 | 2.3 |
| 40-160(I) | 12.5 | 3.47 | 32 | 52 | 2900 | 3 | 2.3 |
| 40-160(I)A | 11.7 | 3.25 | 28 | 51 | 2900 | 2.2 | 2.3 |
| 40-160(I)B | 10.4 | 2.89 | 22 | 50 | 2900 | 1.5 | 2.3 |
......
......
......
| 300-390B | 540 | 150 | 12.5 | 77 | 980 | 37 | 5 |
| 300-400 | 600 | 166 | 50 | 78 | 1480 | 110 | 5 |
| 300-480 | 720 | 200 | 28 | 81 | 980 | 75 | 5 |
| 300-480A | 600 | 166 | 24 | 80 | 980 | 75 | 5 |
| 300-480B | 540 | 150 | 21 | 79 | 980 | 55 | 5 |
| 350-235 | 800 | 222 | 12.5 | 83 | 1480 | 37 | 4.5 |
| 350-300 | 800 | 222 | 20 | 82 | 1480 | 55 | 4.5 |
| 350-315 | 800 | 222 | 32 | 84 | 1480 | 90 | 4.5 |
| 350-400 | 800 | 222 | 50 | 83 | 1480 | 160 | 4.5 |
| 400-300 | 1080 | 300 | 20 | 78 | 1480 | 90 | 6 |
| 400-315 | 1080 | 300 | 32 | 76 | 1480 | 132 | 6 |
| 500-300 | 1200 | 333 | 20 | 80 | 1480 | 110 | 6 |
| 500-315 | 1200 | 222 | 32 | 78 | 1480 | 160 | 6 |
