PW PWF high efficiency centrifugal water pump manufacturers
- US $1,100.00
1 - 40,000 set
- US $200.00
40,001 - 999,999 set
group nameSEWAGE/SLURRY PUMP
-
Min Order1 set
brand nameRONDA
modelPW PWF
payment methodT/T, L/C, D/P D/A, Credit Card, PayPal, Westem Union, Cash, Escrow
-
update timeMon, 17 Mar 2014 16:44:12 GMT
Paramtents
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Sewage
Power Electric
Standard or Nonstandard Standard
Fuel Electric
Pressure Low Pressure
Application Sewage
Packging & Delivery
Min Order1 set
Briefing
2.Single-stage,end suction,non-clog
3.Double seal
4.Reliable performance
Detailed

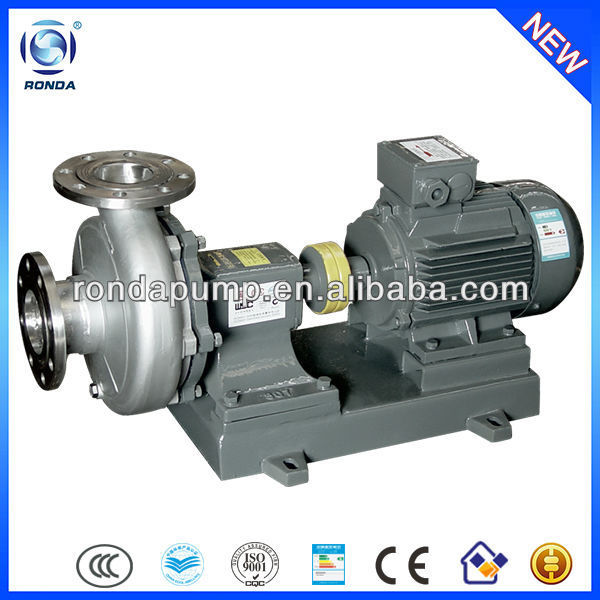

PW PWF high efficiency centrifugal water pump manufacturers
1. Introduction:
1. PW PWF high efficiency centrifugal water pump is single-stage,end suction, non-clog centrifugal pump.
2. The flow components of this type pumps are made of the high quality wearing resistance grey cast iron or stainless steel.
3. The pump has reliable performance, stable running, non-clogging, easy maintenance, etc .
4. It is widely used in the petroleum, chemical industry, steel, paper making. Applicable to pump liquids that contain fiber or other suspending substances but below 80 centigrade.
2. Product details:
| Working Principle: | Centrifugal, Single-stage |
| Main applications: | Sewage, pulp |
| Driver: | Electric motor |
| Power Specs: | 380/415V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Grey cast iron,stainless steel / Grey cast iron,stainless steel |
| Shaft seal type: | Mechanical sealing |
| Free passage: | 20% of caliber diameter |
| Maximum drive rating: | 7.5KW(10HP) |
| Maximum caliber: | 100mm(4inch) |
| Maximum discharge-side pressure: | 0.18MPa(1.8bar) |
| Maximum head: | 18m(59.0ft) |
| Flow rate range: | 10-125m3/h(44-550US.GPM) |
3. Performance data:
| Model | Capacity | Head | Speed | Power(KW) | Efficiency | (NPSH)r | ||
| (m3/h) | (L/s) | (m) | (r/min) | Shaft | Motor | (%) | (m) | |
| 50PWF-65 | 10 | 2.75 | 18 | 1440 | 2.35 | 4 | 20.5 | 5 |
| 14.5 | 4 | 16 | 2.47 | 25.5 | ||||
| 19 | 5.25 | 14.5 | 2.58 | 29 | ||||
| 80PWF-100 | 42 | 11.7 | 14 | 1440 | 3.5 | 5.5 | 45.5 | 4.5 |
| 56 | 15.5 | 13.5 | 4.1 | 50 | ||||
| 72 | 20 | 12.5 | 4.5 | 54.5 | ||||
| 100PWF-125 | 80 | 22.2 | 14 | 1440 | 5.5 | 7.5 | 50 | 4 |
| 100 | 27.8 | 12.5 | 5.7 | 60 | ||||
| 125 | 34.7 | 10 | 5.44 | 62.5 | ||||
4. FAQ:
5. Pictures:
Excellent product made of carefully selected high-quality materials:
