Vertical submersible slurry pump NL

FOB Price

US $600.00
1 - 999,999 set

group nameSEWAGE/SLURRY PUMP
Min Order1 set
brand nameRONDA
modelNL
payment methodL/C, D/A, D/P, T/T, Western Union, RMB is available
update timeMon, 29 Jul 2013 09:46:37 GMT

contact supplier

Paramtents

working principle centrifugal
installing method submersible-vertical

Packging & Delivery

Min Order1 set

Briefing

Vertical submersible slurry pump NL is for high viscosity and high density slurry with high efficiency.

Detailed

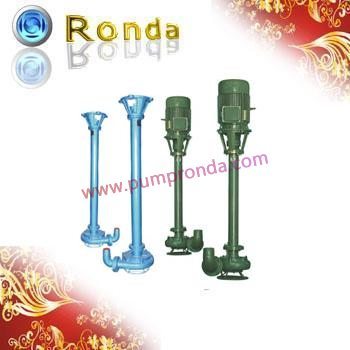

Vertical submersible slurry pump NL

NL and PNL slurry pump is half-submersible model. It can be used in rural or urban to pump slurry with solids. Or can be as a simple water pump or fire pump in rural. The submersible length of pump can be lengthened.

Working Principle:	Submersible, impeller on the bottom
Main applications:	Slurry
Driver:	Electric motor
Power Specs:	380/415 V 3phase; 220/240V 1phase; 50hz/60hz
Max. permissible fluid temperature:	80°C
Type of connection:	Flange
Installation position:	Vertical
Casing/Inner parts material:	Cast iron, Stainless steel/Cast iron, Stainless steel
Shaft seal type:	Mechanical seal
Free passage:	50% of caliber
Maximum gravity:	1.3
Maximum drive rating:	22kW (30hp)
Maximum caliber:	6 inch (150mm)
Maximum dischrage head:	20m
Flow rate range:	20-180 m³/h (333.3-3000 l/m)

	Speed	Capacity	Head	Efficiency	Power	Pump length	Pump weight
Model	n	Q	H	n	KW	mm	kg
	r/min	m3/h	m	%
NL50-8	1450	20-30	15-12	42	1.5	1310	63
NL50A-8
NL50-12	1450	25-38	15-13	41	3	1310	80
NL50A-12
NL76-9	1450	50-70	15-14	42	3	1350	90
NL76A-9
NL65-16	1450	50-60	15-15	42	5.5	1430	152
NL65A-16
NL80-12	1450	80-120	15-16	56	7.5	1430	145
NL80A-12
NL100-16	1450	80-100	15-17	61	15	1510	270
NL100A-16
NL150-12	1450	100-150	15-18	66	18.5	1690	350
NL150A-12
NL150-16	1450	120-180	15-19	68	22	1690	370
NL150A-16
