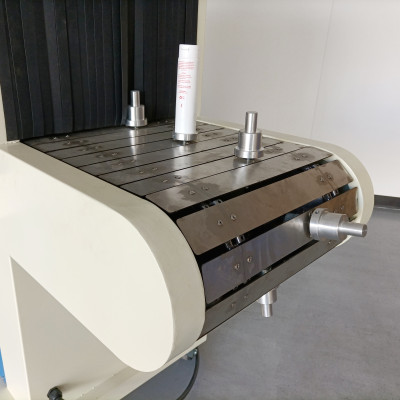

UV curing machine
Product(s)1 of 1
Min Order:1 set
Industry:Machinery
Fixture area: 250x460mm
Max printing area: 250 x 460mm
Maximum screen frame size: 600x1000mm
Scraper/ink knife adjustment angle: 0 ~ 45 ℃
Screen frame thickness: 25~40mm
Table fine-tuning range: ± 10mm
Height from the ground: 850 ±50 mm
Washing height: 220mm
Voltage/ Power: AC380V/ 3KW
Table suction: have
Air source pressure: 0.5~0.7 Bar
Print thickness: 1-50mm (servo adjustable)
Printing repeatability: ±0.1mm
Machine size: L2580xW1200xH1650mm
Region:Zhejiang/Huzhou
Port:Shanghai, Ningbo, Shenzhen, Yiwu
Payment Method:T/T, D/P D/A, Credit Card, PayPal, Westem Union
