group nameFlat End Mills
Min Order1 piece
brand nameMSUTOOLS
modelD1mm-20mm
payment methodMoneyGram, T/T, Paypal
update timeWed, 23 Feb 2022 14:52:17 GMT
Material Solid Carbide
Internal Cooling Without
No of Cutting Flute 4 Flute
Type Flattened
Coating TiAIN/Altin
Cutting Direction Right - Hand
Helix Angle 45°
Precision ±0.01
Workpiece Carbon Steel/ Alloy Steel/Grey Cast Iron
Application Milling
Cutting Diameter 1mm-20mm
Full Length 50mm/75mm/100mm/150mm
Min Order1 piece
Description
|

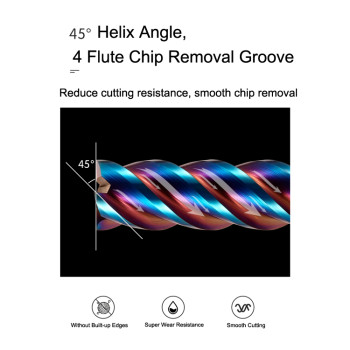

Solid Carbide 4F Square End Mill Cutter Nano Coating For Hardened Steel
|
||
Hardness
|
HRC65
|
||
Coating
|
nACo 3 Blue
|
||
Helix Angle
|
45° (Helix Angle can be produced per request)
|
||
Workpiece | Titanium Alloy/ High-temperature Alloy/ Hardened Steel | ||
Application | Profile milling, tracer milling, face milling, and plunging | ||
1. Superior grades of carbide like Ultrafine Micrograin Carbide. 2. 5 Axis CNC Machine grinded and Machining, the cutter with sharp cutting edge and smooth chip removal groove. 3. Nano Blue Coating, high heat resistance and wear resistance, long work life. 4. High Precision, Anti-Vibration. All End Mills are made by 5 Axis CNC machines such as ANCA/Walter, the end mills come to be high precision, long working life, high efficiency. |
