group nameFlat End Mills
Min Order1 piece
brand nameMSUTOOLS
modelD1mm-20mm
payment methodMoneyGram, T/T, Paypal
update timeWed, 23 Feb 2022 14:37:16 GMT
Material Solid Carbide
Internal Cooling Without
No of Cutting Flute 4 Flutes
Type Flattened
Coating Nano blue
Cutting Direction Right - Hand
Helix Angle 45°
Precision ±0.01
Workpiece Hardened Steel
Application Milling
Cutting Diameter 1mm-20mm
Full Length 50mm/75mm/100mm/150mm
Min Order1 piece
Description
|

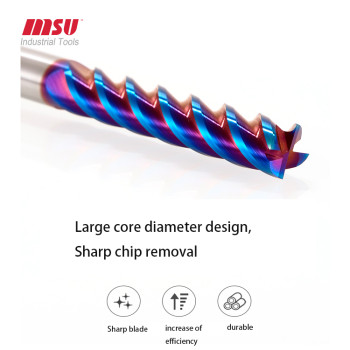

4 Flute Carbide End Mill HRC65 Nano Coating
|
||
Hardness
|
HRC65
|
||
Coating
|
Nano blue
|
||
Helix Angle
|
45°
|
||
Workpiece | Hardened Steel | ||
Application | Side Milling and Face Milling/Slotting | ||
1. MSU end mills are made of Tungsten Carbide Steel and 0.2um provides high hardness and heat resistance enabling the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality. 2. Applicable Materials: These Nano blue coating bits have an HRC rating of 65 and are optimal for milling a wide range of materials, including plastics, aluminum, circuit board, wood, etc. All End Mills are made by 5 Axis CNC machines such as ANCA/Walter, the end mills come to be high precision, long working life, high efficiency. |
