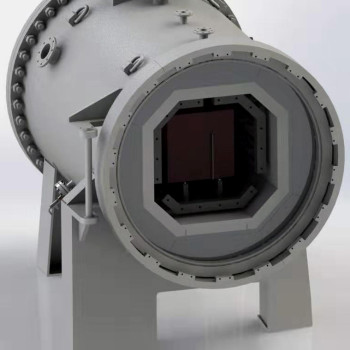

JVGQ series high pressure gas quenching vacuum furnace

  • group nameJVGQ series high pressure gas quenching vacuum furnace

  • Min Order1 set

  • brand nameBJVT Vacuum furnace equipment manufacture

  • modelJVGQ433; JVGQ644; JVGQ755; JVGQ966;JVGQ1288;

  • payment methodT/T

  • update timeMon, 27 Apr 2020 15:54:36 GMT

Paramtents

  • Max.temperature: 1320℃

  • Pressure rising rate: 0.65Pa/h

  • Air cooling pressure: 6Bar,10Bar,12Bar or more

  • Ulitmater vacuum : 4*10-1Pa or 8*10-4Pa

  • Temperature uniformity: ±5℃

  • Heating element: Graphite or Molybdenum

  • Gas quenching pressure 6bar,10bar,12bar,15bar,20bar

  • Size: Customized according to customer needs

Packging & Delivery

  • Min Order1 set

Briefing

JVGQ series gas quenching vacuum furnace is used for quenching high-speed tool steel, alloys, or bright annealing.

Detailed

Product features
High pressure vacuum gas quenching furnace is the best choice for die steel, tool steel, stainless steel, it values all the treated parts, no need to clean after quenching, the heat chamber has divided into three different types for different application, round, square,octagon. round chamber are suitable for batch process, the square chamber is good for big part to achieve isothermal quenching and convection heating, the cooling gas can go up and down seperately. the octagon chamber combined two type's advantage together
all the above mention furnace is one chamber, the heat to cool in one chamber, you can choose two chamber's furnace to improve the production. save the energy and decrease cycle time
1、Compact structure, highly-automatized operation,green and energy saving.
2、Friendly human machine interface.
3、Running safety and reliable , the control system can realize self-diagnosis,audible and visual alarm,interlock protection.
4、Visual display of components' motion and running status.
5、Vacuum gas quenching furnace will be suitable for vacuum gas quenching,tempering,annealing of dies&mould,tool steel ,alloy steel ,
stainless steel , Ti alloy etc.
Configuration option
1、High vacuum for heating chamber
2、Air filter to clean exhaust air
3、Use matalic chamber for some stainless steel,Ti alloy etc.
Customized furnace still avaiable according to different requirement.
 Product specification
Type
Hot zone (L*W*H,mm)
Loading capacity(Kg)
JVGQ433
450*300*300
100
JVGQ644
600*400*400
200
JVGQ755
700*500*500
300
JVGQ966
900*600*600
500
JVGQ1288
1200*800*800
1000
JVGQ1299
1200*900*900
1200
JVGQ1511
1500*1000*1000
1500
JVGQ series high pressure gas quenching vacuum furnace
JVGQ series high pressure gas quenching vacuum furnace
We can supply the vacuum furnace's maintenance service for different brands ,including routine maintenance,overhauling.
We also supplying of spare parts(graphite parts,molybdenum parts,ceramic parts,seal parts, thermocouples,elctronic instrument);Installation and commissioning;Maintenance and routine check;Training on operation and maintenance;Processing support.
Nearest port for product export
Tianjin, Shanghai, Ningbo, Dalian
