group nameEnclosed Track Chain
Min Order100 meter
brand nameZMIE Chain Manufacturer
payment methodL/C, Western Union, T/T, Paypal
update timeFri, 03 May 2024 13:04:32 GMT
Material: 40Cr
Heat Treatment: Through hardening
Color: Natural
Shipping: Support Sea freight.Express.Land freight.
Application: paint coating
Chain Pitch: 100mm
Min Order100 meter
Chain Size
|
Dimensions |
|||||||||
P | W | D1 | D2 | H | T |
L | A | d4 | t | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
7 Ton Chain | 100 | 200 | 57 | 60 | 19.05 | 4.5 | 38 | 65.5 | 10.3 | 4.5 |
B | C | |||||||||
25 | 72 |

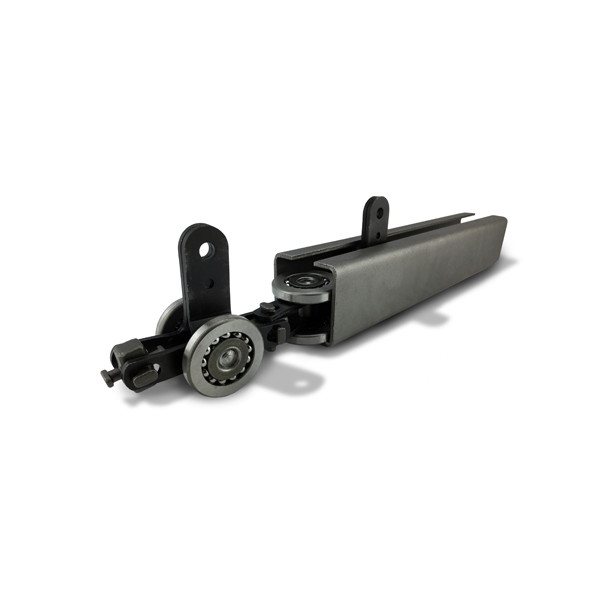

Cardan Chain employs
alternating vertical (load carrying) and horizontal (lateral guide) wheels with
a symmetrical pin located at each pitch. This provides maximum flexibility in
all directions, helping to reduce friction and promote long life. The use of
true “U-joints” also allows easy chain assembly/disassembly. Heat-treated, high
carbon steel components including stamped side links, drop-forged symmetrical
chain pins, and machined wheels enable our standard chain to excel in such
harsh environments as bake ovens and spray booths. And, for applications that
demand optimal performance with minimal operating noise, nylon wheel chain is
also available. Plus, all load and guide wheels feature a full complement of
ball bearings manufactured from alloy steels, including high-carbon 52100 alloy
steel and hardened races for years of dependable service
