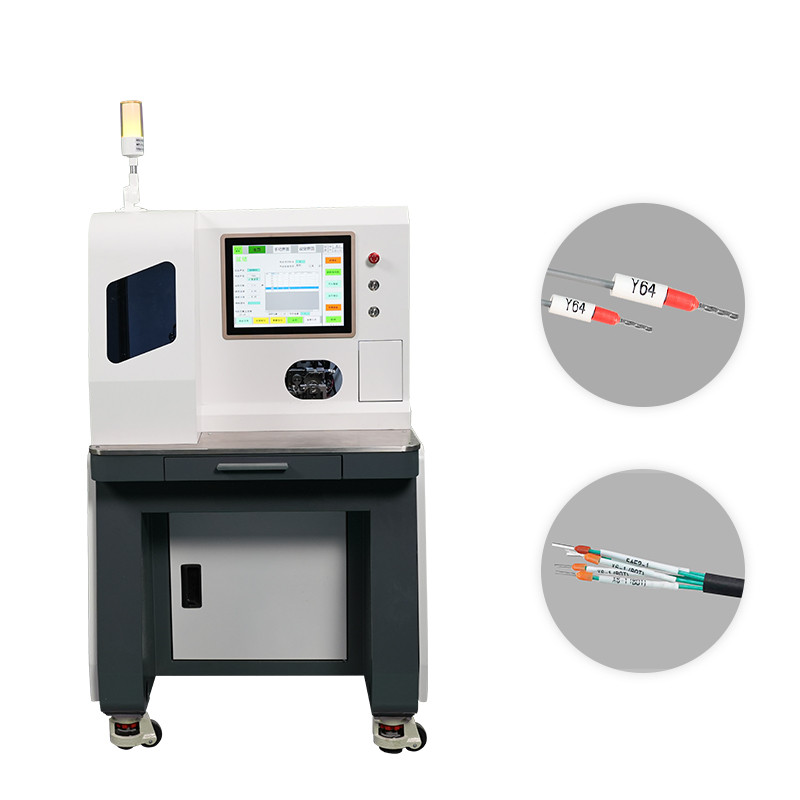

TR-GZ520 Semi-Auto Tube Type Number Tube Terminal Crimping Machine
group nameInserting Tube Terminal Crimping Machine
-
Min Order1 piece
brand nameTuring
modelTR-GZ520
payment methodWestern Union, MoneyGram, T/T
-
update timeFri, 17 May 2024 01:27:26 GMT
Paramtents
Power AC220V/50HZ,
Application Number Tube Terminal Machine
Feature Stable Performance
Warranty 1year
Contact Lily 0086-13715588365
Packging & Delivery
Min Order1 piece
Briefing
TR-GZ520 Semi-Auto Tube Type Number Tube Terminal Machine
Lily +8613715588365
Lily +8613715588365
Detailed
TR-GZ520 Semi-Auto Tube Type Number Tube Terminal Crimping Machine
Control method:Man-machine interface, electronic touch control, pneumaticcontrol
Operating mode:Auto-triggered run and manualoperation
Wires pecification:Suitable for BVR line 0.5, 075, 1.0, 1.5, 2.5, 4.0 square
Peeling length:Stripping length range 8-16mm
Terminal specification:Terminal insulator length within 7.5mm, conductor lengthwithin 12mm
Crimp shape:Quadrilateral crimp (imitation square)
Replacement product:Manually replace relevant fixtures and adjust the vibrating plateelectric memory stripping length and stripping skin depth.t takes about 3 minutes to replace a set of terminal fixtures
Test items:Terminal presence detection, safety door opening detection on the right side
Power supply:External input power AC220V /50H (single phase) 10A: internal External power supply DC24V
Air source:0.5-0.8Mpa (please use a stable clean and dry air source, connectThe air intake source should be kept not lower than 0.5Mpa)
Dimensions:L730*W760*H1400mm(excluding protrusions)
Weight:100KG
Number tube length:10-32mm
Sheath Peeling length:275mm(confirm with incoming samples)
Speed:About 650PCS/H
