group nameHeatless Desiccant Dryer
Min Order1 piece
brand nameKL
modelKXC
payment methodL/C, T/T, Western Union
update timeThu, 28 Nov 2019 15:36:01 GMT

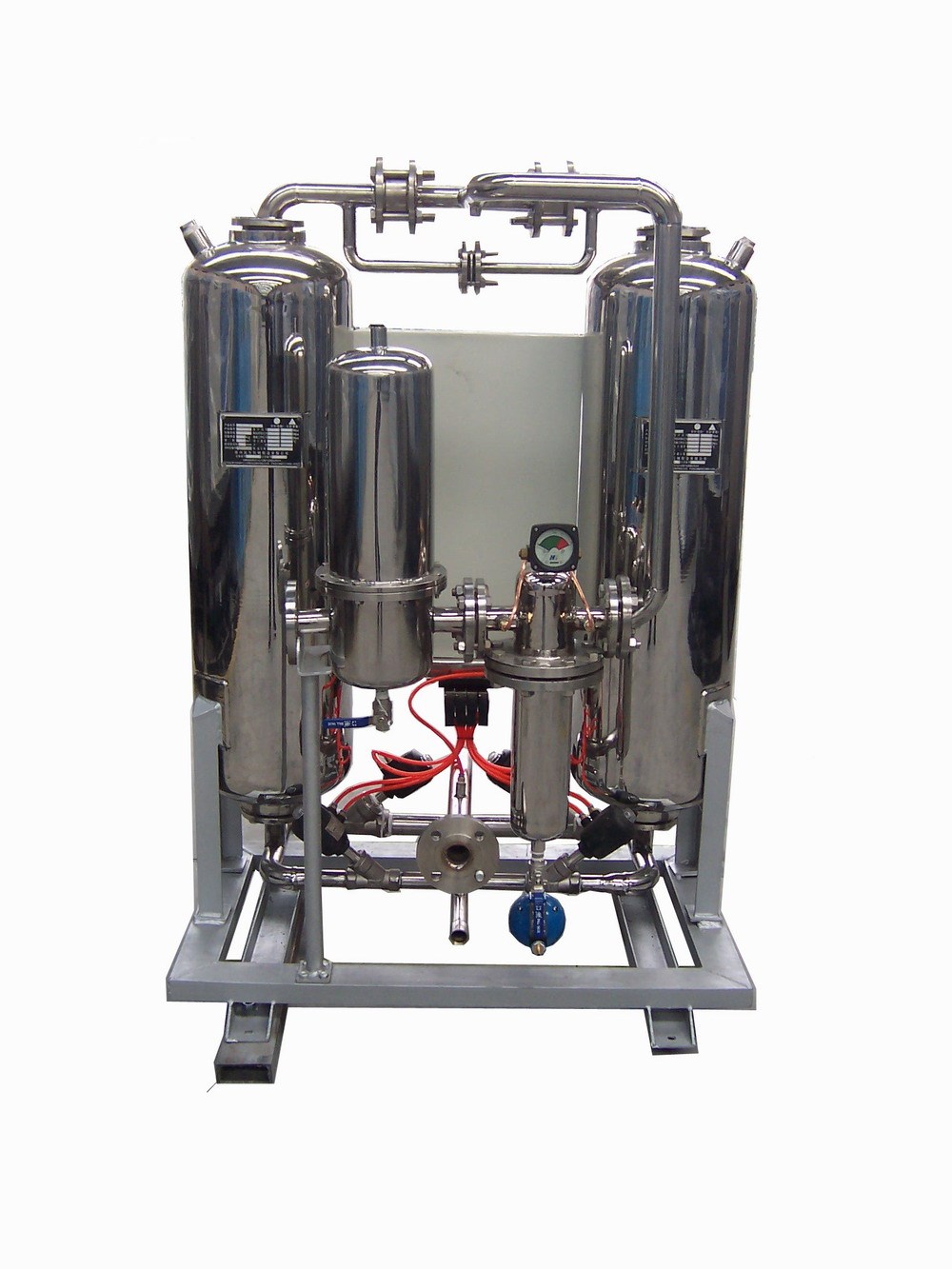

ITEM stainless steel desiccant air dryer
Air loss 15~18%
Inlet temperature less than 40Deg.C
Inlet pressure 7bar
Dew-point -40PDP
Min Order1 piece
KXD Series Heatless Regenerative Air Dryer isa kind of simple, reliable and economical method for removing water vapor fromcompressed air. The normal outlet pressure dew point is -40°C, lowest pressuredew point can be -70°C .the KXD Series air dryer is ideal for applicationswhere compressed air lines are exposed to blew zero ambient temperatures, orwhere special processes require air at an extremely low relative humidity. Thisunit provides instrument quality air and is designed for maximum reliabilityand long, trouble-free service.
Pressure vessel choose stainless steel, it's good for special gas, medical & food line.
Standard Operating Conditions
Normalinlet pressure: 7bar
Normalinlet temperature : 35°C
Pressure dew point: -40°C
Maximum inlet pressure: 10bar
Minimum inlet pressure: 4bar
Maximum inlet temperature: 50°C
Minimum inlet temperature: 10°C
Standard electrical supply: 220V/1Ph/50Hz
Specifications
Model | Capacity Nm3/min | Dimension | Connection | Weight kg | ||
L mm | W mm | H mm | ||||
KXD-5 | 0.7 | 690 | 500 | 915 | 1/2” | 120 |
KXD-10 | 1.6 | 690 | 500 | 1298 | 1” | 190 |
KXD-20 | 2.6 | 780 | 500 | 1250 | 1” | 280 |
KXD-30 | 3.8 | 840 | 540 | 1260 | 1” | 320 |
KXD-60 | 7.0 | 1010 | 700 | 1588 | 1-1/2” | 480 |
KXD-75 | 8.5 | 1010 | 700 | 1727 | 1-1/2” | 540 |
KXD-100 | 11.5 | 1240 | 800 | 1958 | 2” | 650 |
KXD-120 | 13.5 | 1240 | 800 | 2232 | 2” | 690 |
KXD-150 | 17 | 1280 | 860 | 2360 | DN65 | 780 |
KXD-200 | 23 | 1320 | 860 | 2477 | DN65 | 920 |
Inlet Air PressureCorrection- C1
bar g | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 | 10 | 11 | 12 | 13 | 14 |
Factor | 0.62 | 0.77 | 0.9 | 1.0 | 1.09 | 1.19 | 1.24 | 1.31 | 1.37 | 1.42 | 1.47 |
Inlet Air TemperatureCorrection- C2
bar g | 25 | 30 | 35 | 40 | 45 | 50 |
Factor | 1.12 | 1.06 | 1.0 | 0.93 | 0.86 | 0.78 |
