Briefing

Max line speed: 70cuts/min

Detailed

High speed Scroll Cutting Line

Model: HL-1200BS3

HL-1200BS3

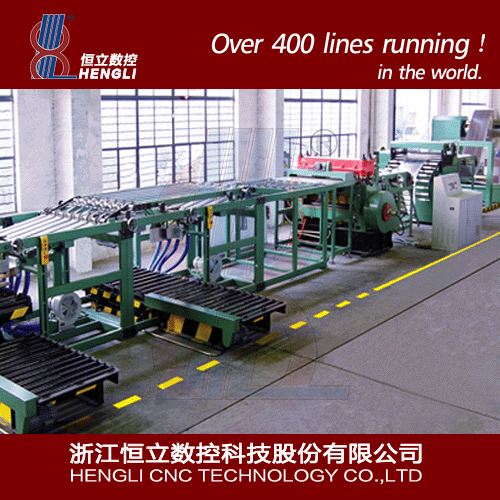

The maximum speed of the model is 70 SPM. The model is composed of uncoiler, buffering pitloop, flattener, cutter, stackers and etc. It is suitable for the customer who prefer economical model.

Technical Specifications

Name & Model	HL1200BS3 digital-controlled scroll cutting device
Use	For uncoiling, straightening, high-precise scroll cutting and stacking tinplate or aluminum. It is an important device for can-making or metal-printing companies to reduce tinplate loss and producing cost.
Electric control	The electric control components use whole set of Mitsubishi control system.
Material	Tinplate, Blackplate, TFS and Aluminum in tempers normally associated with standard can making material
Die set	Straight die / Scroll die
Shear type	Feed-to-stop
Technical parameters	1）Sheet width range：500-1200mm
	2）Sheet thickness range：0.125-0.525mm
	3）Sheet length range：500-1200mm
	4）Max coil weight：12T
	5）Nominal coil I.D.：420mm
	6）Mandrel expansion range：385-445mm
	7）Coil O.D.：915-1700mm
	8）Max line speed：56m/min
	9）Max cutting strokes：70 SPM
	10) Max bundle weight：2100kg
	11) Max bundle height：460mm (Including stander)
	12）Length tolerance range：≤±0.15mm
	13）Diagonal tolerance range：≤±0.18/1000mm
	14）Power consumption：about 37kw
	15）Air consumption：about 1m³/min
