COLO-660A Automatic Powder Coating Application System
group nameAutomatic Powder Coating Machine
-
Min Order1 piece
brand nameCOLO powder coating machine
modelCOLO-660A, COLO-2000D
payment methodT/T, L/C, MoneyGram
-
update timeFri, 05 Dec 2025 18:07:46 GMT
Paramtents
Delivery Time 7-15 Working Days
Shipping By Sea
Application Metal Finishing Industry
Stroke 1.5m, 1.8m, 2m , 2.5m
Packging & Delivery
Min Order1 piece
Briefing
Improves coating production and reduces downtime, including automatic powder guns and control, integrated cabinet, reciprocators.
Detailed
COLO-660A Automatic Powder Coating Application System
Application

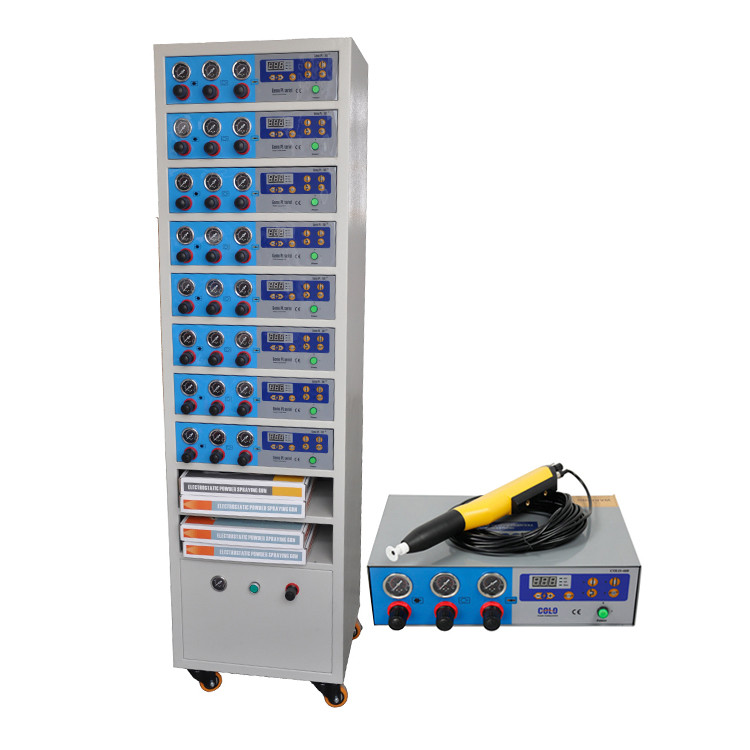

The Automatic Powder Coating System includes:
COLO-660A automatic powder coating gun and central control cabinet,
COLO-2000D powder coating reicprocator, multi controllers of automatic powder coating gun installed on a central cabinet, with compact design and simple operation, it is ideal for working in automatic powder coating line. A central cabinet simplifies the process of multiple powder guns working at the same time, increases operation efficiency significantly.
COLO-2000D Powder Spray Reicprocator
Excellent Features
1. A user-friendly panel interface offers you great flexibility to set parameters and control the whole process.
2. Heavy-loaded reciprocator with reliability to carry up to 24 pcs powder spray guns, making smooth movement.
3. Moving speed and stroke can be easily set at the touching screen with 20 storable programs.
4.carries a certain quantity of spray guns for up-and-down motion, delivers excellent uniformity and efficiency of powder coating.
5. Three stroke length sizes - 1.5m, 2m, 2.5m for choice.
|
Model |
COLO-2000D |
|
Power Supply
|
AC 220V/110V 50-60Hz
|
|
Motor Power
|
1.1kw
|
|
Speed Range
|
0-50m/min(0-0.8m/s)
|
Max. Loading Capacity | 25kgs |
Stroke Length | 1.5m/2m/2.5m |
Standard Size | 850*680*2970mm |
Qty of Spray Guns Loading | 2-24 pcs |
Central Control Cabinet
Excellent Features
1. The quantity of controller units can be tailored as customer's demands, maximum up to 24 sets.
2. A central control cabinet combines all gun controller for integrated operation, enbales to set parameters only at one host unit to control whole system.
3. Combination of a certain quanlity of automatic powder gun controllers, meet the requirements of serial production, ensures reliability and controllability in the automatic powder coating line.
4. It is the ideal entry into automatic series production offering quality finishes and great powder savings.
COLO-800D-A Automatic Powder Coating Gun
Excellent Features
COLO-660A Automatic Powder coating equipment is designed exclusively for automatic electrostatic coating for high output job. Specially with the Pulse function, a coating option that to penetrate tough Faraday Cage areas.
* Voltage can be easily set by buttons from 0-100kv, the voltage and amperage values will be shown on the digital display for accurate reading.
* Just press the 4 one-touch intelligent buttons, application programs switches automatically between panel coating, corner coating, recoating and pulse mode, giving easy access to powder coating beginners.
|
Model
|
COLO-660A
|
|
Power Range |
220V/110V |
|
Frequency
|
50HZ/60HZ |
Gun Weight | 500g |
|
Temperature range in use |
-10 ℃+50 ℃ |
Rated output voltage | 24VDC |
Input Voltage | 200kv |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV (adjustable) |
Maximum powder injection | 650g/min |
Polarity | negative (-) |
