Automobile tone line line detector line patrolmeter break breakpoint car test lamp car repair short circuit finder
- US $24.5
100 - 199 piece
- US $22.26
200 - 499 piece
- US $19.29
500 - 999999 piece
group nameCar Diagnostic Tools
-
Min Order100 piece
brand nameatliprime
modelDY25
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeSat, 06 Dec 2025 01:26:03 GMT
Paramtents
Product name Car Short Circuit Detector
Combination Car diagnostic
Warranty 12 Months
Application Car Repair Tool Tester
Voltage 9V
Packging & Delivery
Min Order100 piece
Briefing
Detailed
1.Identify and track lines to determine short-circuit and open-circuit points
2.3.5mm Headphone Interface Increases Hearing Recognition in Loud Environment
3.24.8cm long probe hose for easier operation

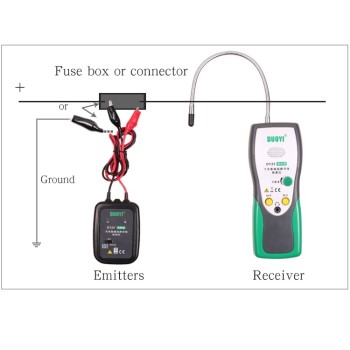

This instrument can check the cable break point without damaging the insulation layer Find the short-circuit cable, identify and track the wire, the instrument is issued by a Device and receiver components
sensitivity settings, the probe can be picked up in a certain range of cable The detection head is placed above or below the cable
vertical (90 degrees)
Receiver sensitivity adjustment
Adjusting the sensitivity knob clockwise will improve the sensitivity of the receiver
Adjusting the sensitivity knob counterclockwise will reduce the sensitivity of the receiver
How to use cable tracking
1. Disconnect all load and power in the line under test
2. Dial the switch to find the line position, connect the test wire to the tested cable or wire, and the green light will light up
when the line resistance is less than 10k ohm (indicates the short circuit of the tested circuit or wire)
3. After checking, disconnect the test wire and turn off the power
Check Line Breakpoint
Wire Alligator clip :750mm ultra-long test wire Easy to use High hardness Not easy to break Alligator clip Strong bite force
Insulation design
Battery replacement :9V Battery Power Remove the back screw Open the back cover and install the battery Available
1. It can only be used for DC voltage, and cannot be connected to a DC voltage greater than 42V in any environment
2. Not for AC voltage
3. Not for direct or indirect circuits connected to AC cables or any AC power supply
4. Can not be used with any ignition circuits and components
5. Before using this instrument to detect a car cable, disconnect any component or subsystem, such as air sac, that is sensitive
to voltage or current pulses
6. Any part or subsystem of a car must be disconnected in accordance with the relevant rules for the maintenance of the car and
the requirements of the car maintenance manual
7. Please read the instructions carefully before use
Use of headphones in noisy environments
Earphones with 3.5mm plugs for listening Judgment
Use Steps :Insert the receiver's sensitivity before inserting the headset Set to the minimum, then insert the headset to detect sensitivity Gradually increase to moderate volume
PACKING LIST
DY25 Receiver 1 pcs
User manual 1 pcs（in English）
Oxford handbag 1 pcs
