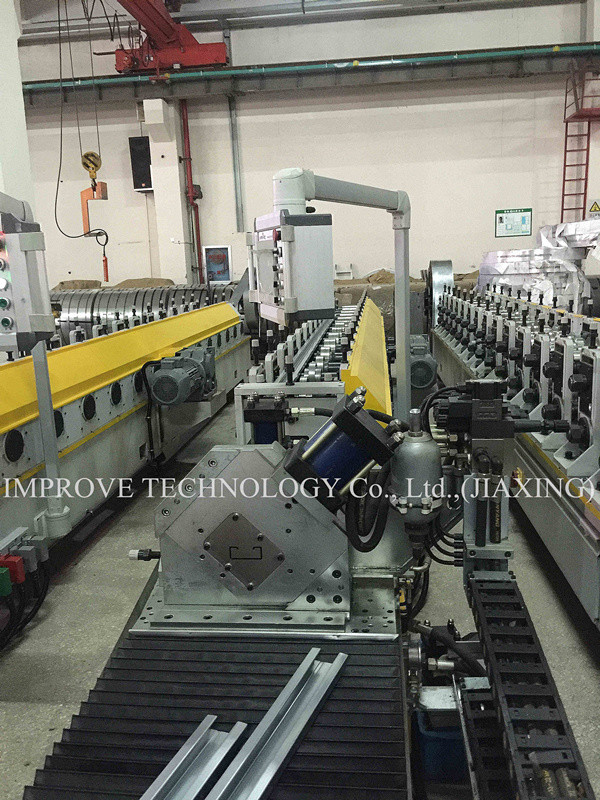

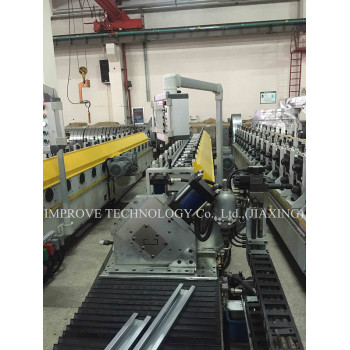

Garage Door Profile Roll Forming Machine

Requirements

Dimensional tolerances: +/- 1mm, +/- 1º angle

Bow: 1.5mm

Camber: 1.5mm

Twist: 1.0º

Working Speed

20 meter/Min

Technical Process我

Decoiler → Guided Feeding → Roll Forming → Punching → Cutting to Length (Serve fly shear cutting) → Collection Table

Main Motor

5.5KW (Brand: JIE made in China)

Sprocket

Tooth top high frequency quenching

C & U

Lining

1) Seamless Steel Tube       2) Single Surface Thickness >= 5mm

Rollers

1) Hardness Surface: GCr 15

2) Hardness Surface: HRC58℃-62℃

3) Chromate Treatment

Hydraulic Station Power

2.2KW, hoses to be fitted with JIC standard, brand : Aeroquip

VFD

SIEMENS OR SCHEIDER

PLC

SIEMENS

Collection Table

Normally 3 meter
