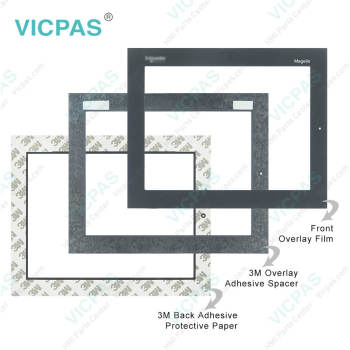

XBTOT5220 XBTOT5320 Touch Screen Panel Protective Film
group nameMagelis XBT G/GC/GH/OT
-
Min Order1 piece
brand nameVICPAS
modelSchneider XBTOT5220 XBTOT5320
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
-
update timeWed, 15 May 2024 13:17:49 GMT
Paramtents
Warranty 1 Year VICPAS Warranty
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Model Schneider XBTOT5220 XBTOT5320
Size 10.4 inch
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Magelis XBTOT5220 XBTOT5320 Touch Screen Panel Protective Film repair replacement
Order each part separately is available
The Magelis XBTOT5220 and XBTOT5320 are basis HMI panel of Schneider XBT OT series, which allows users to graphically view the machine status and to monitor and manage machine functions. Users can input and set the machine’s parameters through the 45K color trans-missive, thin-film transistor color active matrix, 10.4-inch LCD screen with a display dimension of 10.65in x 8.37in and a resolution of W640 X H480 pixels.
The Schneider XBTOT5220 and XBTOT5320 lithium battery’s lifetime is 10 years when the battery’s ambient temperature is 40°C [104°F] or less. 4.1 years when the battery’s ambient temperature is 50°C[122°F] or less. 1.5 years when the battery’s ambient temperature is 60°C[140°F] or less.
The XBTOT5220 interface Specifications connecting an external device to the OT using the SG terminal, be sure to check that no short-circuit loop is created when you setup the system. The same type of connector is used for the different signal types on COM1 and COM2 of the OT. Be careful not to mistake one for the other. Connecting them incorrectly disables communication.
Specifications:
The table below describes the parameters of the XBTOT5220 XBTOT5320 touch screen protective film.
| Part Number : | XBTOT5220 XBTOT5320 |
| Product Line: | Magelis XBTOT Series |
| Touchscreen Size: | 10.4 in. |
| Warranty: | 1-Year Warranty |
| Touch Technology: | Resistive Film (analog) |
| Resolution: | DC 5V 1mA |
| Operating Temp.: | 1024 X 1024 |
| Storage Temp.: | -20℃～+70℃ |
| lineation test: | ≥1.000.000 times |
| Input Type: | ≥100.000 times |
PDF Download:
Magelis XBTOT Series Part No.
| Magelis XBT OT | Description | Inventory status |
| XBTOT2110 | basis touch panel -5.7-inch | In Stock |
| XBTOT2210 | basis touch panel -5.7-inch | In Stock |
| XBTOT4310 | basis touchscreen -7.5-inch | Available Now |
| XBTOT4320 | basis touch screen -7.5-inch | Available Now |
| XBTOT5220 | basis touchscreen -10.4-inch | In Stock |
| XBTOT5320 | basis touchscreen -10.4-inch | Available Now |
| Schneider XBT OT | Description | Inventory status |
Common misspellings:
BTOT5220
XTOT5220
XBOT5220
XBTOT520
XBTOT530
XBTOT532
