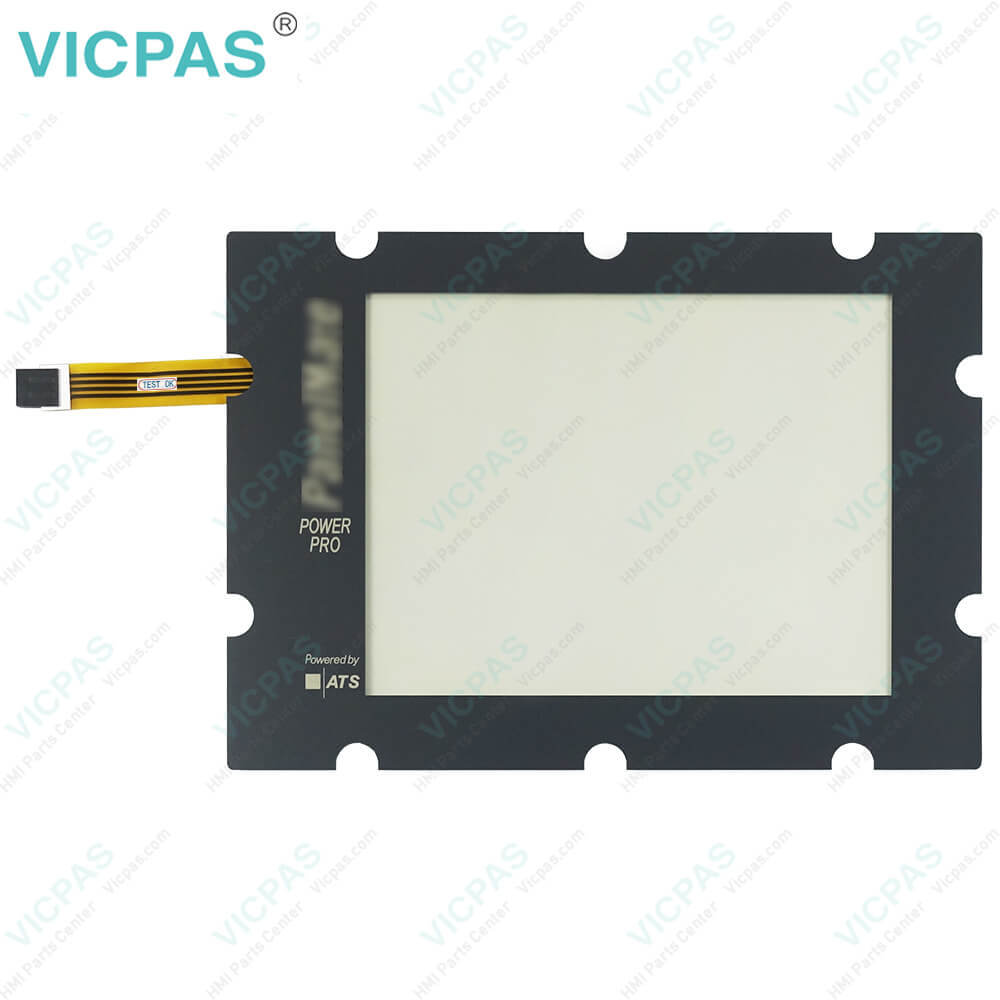

1785K Touch Membrane Replacement

Calibration is recommended when installing and using Eaton Panelmate Cutler Hammer 1785K Touch Digitizer Glass purchased from Vicpas. Once you start the calibration process, a crosshair on a red and white target appears in the upper-left corner of the display. While in your normal operating position, touch the crosshairs in the middle of the target. The crosshairs will move to the lower-right corner of the display. Touch the crosshairs again, and the crosshairs will move to the upper-right corner of the display. After touching the upper-right crosshairs, a Check Calibration dialog box will appear, informing you that you have 30 seconds to confirm the calibration. Touch points on the screen to confirm the arrow cursor is tracking as desired and then select YES (if the calibration does not look correct then select NO and re-calibrate the screen until you are satisfied). Once you select YES, you are returned to the Touchscreen Properties dialog box. Close the Touchscreen Properties dialog box by selecting the OK button. The calibration settings will be temporarily saved at this time.
If Cutler Hammer Panels Cutler Hammer 1785K Touchscreen is not accurate after calibration, please check the following possible causes: contamination such as dust, oil, or moisture on the touch surface may affect accuracy; any protective film should be removed before use; inaccurate operation during calibration may lead to deviation, so please ensure each target is touched precisely; loose or improper cable connections may also impact performance; in addition, strong electromagnetic interference or unstable power supply can affect touch response; finally, please confirm that the replacement Cutler Hammer Panelmate Cutler Hammer 1785K Touch Panel is fully compatible with your device. If the issue persists, please contact Vicpas for technical support.
