4Inch6Inch AC/DC&（3KW-7.5KW） BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM DIFFUL ＆WELLUP WATER PUMP | Agricultural irrigation, household water supply
group nameDIFFUL&WELLUP AC/DC SOLAR WELL PUMP
-
Min Order1 piece
brand nameDIFFUL
model4/6HJSC-A/D(HV)
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
-
update timeSat, 06 Dec 2025 20:15:59 GMT
Paramtents
type brushless solar water pump
material Stainless steel impeller
Warranty 4/6HJSC-A/D-2-year
Trademark/Brand DIFFUL
Packging & Delivery
Min Order1 piece
Briefing
4Inch6Inch AC/DC Brushless solar pump with stainless steel impeller
The max head range:42m-145m
The max flow range:30m³/h-95m³/h
The max head range:42m-145m
The max flow range:30m³/h-95m³/h
Detailed
4500 RPM DIFFUL&WELLUP WATER PUMP
Featuring a 4500 RPM permanent magnet synchronous motor,perfectly matched with the output characteristics of solar panels,this series delivers higher head and greater flow.
Whether for agricultural irrigation,livestock water supply,landscape projects,or domestic water use,our products provide anefficient,reliable,and economical green water solution.

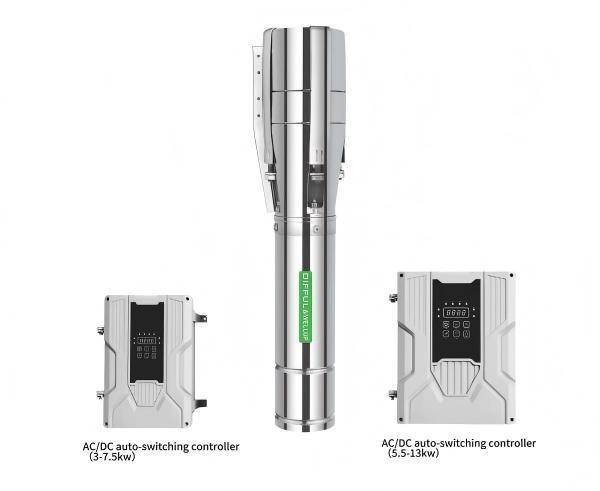

4/6"AC/DC BRUSHLESS SOLAR WATER PUMP WITH S/S IMPELLER
- 4Inch6Inch AC/DC brushless solar water pump - plastic impeller, MPPT controller, brushless motor,aims for farm livestock
Off-grid household water supply
irrigation.
- Features: Cost-effective,large flow and the preferred model for most customers.
- The max head range:42m-145m
-The max flow range:30m³/h-95m³/h
4/6"AC/DC BRUSHLESS SOLAR WATER PUMP WITH PLASTIC IMPELLER
Technical Data
Model | Voltage | Optimum input voltage(DC) | Power | Max.Flow | Max Head | Outlet | Cable | Open circuit voltage (VOC) | Solar panel Power |
4/6HJSC30-70-380/520-3000-A/D | AC380/DC520V | 520V-650V | 3000W | 30m³/h | 70m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC30-100-380/520-4000-A/D | AC380/DC520V | 520V-650V | 4000W | 30m³/h | 100m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC30-122-380/520-5500-A/D | AC380/DC520V | 520V-650V | 5500W | 30m³/h | 122m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC30-143-380/520-7500-A/D | AC380/DC520V | 520V-650V | 7500W | 30m³/h | 143m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC36-56-380/520-3000-A/D | AC380/DC520V | 520V-650V | 3000W | 36m³/h | 56m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC36-80-380/520-4000-A/D | AC380/DC520V | 520V-650V | 4000W | 36m³/h | 80m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC36-108-380/520-5500-A/D | AC380/DC520V | 520V-650V | 5500W | 36m³/h | 108m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC36-145-380/520-7500-A/D | AC380/DC520V | 520V-650V | 7500W | 36m³/h | 145m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC46-51-380/520-3000-A/D | AC380/DC520V | 520V-650V | 3000W | 46m³/h | 51m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC46-68-380/520-4000-A/D | AC380/DC520V | 520V-650V | 4000W | 46m³/h | 68m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC46-86-380/520-5500-A/D | AC380/DC520V | 520V-650V | 5500W | 46m³/h | 86m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC46-112-380/520-7500-A/D | AC380/DC520V | 520V-650V | 7500W | 46m³/h | 112m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC65-42-380/520-4000-A/D | AC380/DC520V | 520V-650V | 4000W | 42m³/h | 42m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC65-63-380/520-5500-A/D | AC380/DC520V | 520V-650V | 5500W | 65m³/h | 63m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC65-85-380/520-7500-A/D | AC380/DC520V | 520V-650V | 7500W | 65m³/h | 85m | 3" | 2m | <900V | ≥1.3*PUMP POWER |
4/6HJSC65-66-380/520-7500-A/D | AC380/DC520V | 520V-650V | 7500W | 65m³/h | 66m | 4" | 2m | <900V | ≥1.3*PUMP POWER |
4/6"AC/DC BRUSHLESS SOLAR WATER PUMP WITH PLASTIC IMPELLER
Hydraulic Performance Curve
How to choose a solar pump?
1.Confirm your technical requirements
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
2.Compare your requirement with our product
Calculate the "actual lift needed" and find an appropriate pump.
Then you can choose the most suitable pump according to different flow rates and prices as well as pump material.
How to calculate the head?
