6HJPC-A/D(5.5-37KW) +6/8HJPC-A/D（7.5-37kw）BRUSHLESS SOLAR PUMP WITH PLASTIC IMPELLER | 4000 RPM DIFFUL ＆WELLUP WATER PUMP | BEST SOLAR PUMP FOR SALES

group nameDIFFUL&WELLUP AC/DC SOLAR WELL PUMP
Min Order1 piece
brand nameDIFFUL
model6HJPC-A/D(5.5-37KW) +6/8HJPC-A/D(HV)（7.5-37kw）
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
update timeFri, 05 Dec 2025 18:52:05 GMT

contact supplier

Paramtents

type brushless solar water pump
material plastic impeller
Warranty 6HJPC-A/D,6/8HJPC-A/D-2-year
Trademark/Brand DIFFUL

Packging & Delivery

Min Order1 piece

Briefing

6HJPC-A/D(5.5-37KW) +6/8HJPC-A/D(HV)（7.5-37kw） Brushless solar pump with plastic impeller

Detailed

INTRODUCTION

WIRING INSTRUCTIONS

4500 RPM DIFFUL&WELLUP WATER PUMP

Featuring a 4500 RPM permanent magnet synchronous motor,perfectly matched with the output characteristics of solar panels,this series delivers higher head and greater flow.

Whether for agricultural irrigation,livestock water supply,landscape projects,or domestic water use,our products provide anefficient,reliable,and economical green water solution.

6HJPC-A/D(5.5-37KW) +6/8HJPC-A/D（7.5-37kw) BRUSHLESS SOLAR WATER PUMP WITH PLASTIC IMPELLER

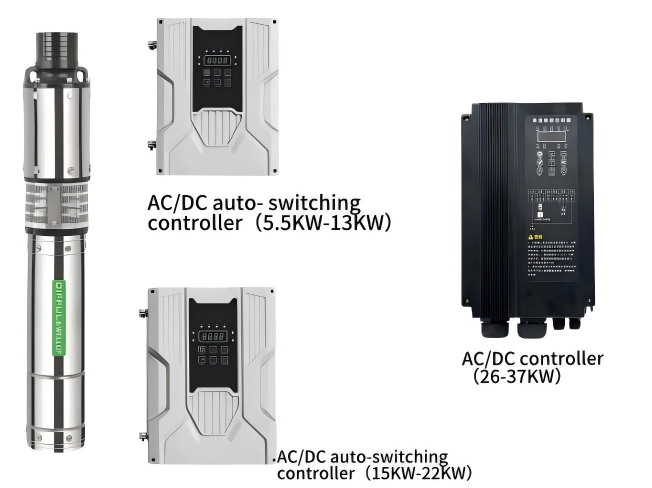

- 6HJPC-A/D(5.5-37KW) +6/8HJPC-A/D(HV)（7.5-37kw） :brushless solar water pump - plastic impeller, MPPT controller, brushless motor,aims for farm livestock Off-grid household water supply irrigation.

- Features: Cost-effective,large flow and the preferred model for most customers.

- Hot-selling market: Southeast Asia, Middle East, South America, Africa,etc.

6HJPC-A/D(5.5-37KW) +6/8HJPC-A/D（7.5-37kw) BRUSHLESS SOLAR WATER PUMP WITH PLASTIC IMPELLER

Technical Data

ITEM	Voltage	Optimum input voltage(DC)	Power	Max.Flow	Max Head	Outlet	Cable	Open circuit voltage (VOC)	Solar panel Power
6HJPC68-65-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	68m³/h	65m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC68-85-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	68m³/h	85m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC68-117-380/520-11000-A/D	AC380/DC520V	520V-650V	11000W	68m³/h	117m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC68-144-380/520-15000-A/D	AC380/DC520V	520V-650V	15000W	68m³/h	144m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC68-167-380/520-18500-A/D	AC380/DC520V	520V-650V	18500W	68m³/h	167m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC68-197-380/520-22000-A/D	AC380/DC520V	520V-650V	22000W	68m³/h	197m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC68-233-380/520-26000-A/D	AC380/DC520V	520V-650V	26000W	68m³/h	233m	3"	2.5m	<800V	≥1.3*PUMP POWER
6HJPC68-282-380/520-30000-A/D	AC380/DC520V	520V-650V	18500W	68m³/h	282m	3"	2.5m	<800V	≥1.3*PUMP POWER
6HJPC68-330-380/520-37000-A/D	AC380/DC520V	520V-650V	30000W	68m³/h	330m	3"	2.5m	<800V	≥1.3*PUMP POWER
6HJPC88-48-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	88m³/h	48m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC88-72-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	88m³/h	72m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC88-95-380/520-11000-A/D	AC380/DC520V	520V-650V	11000W	88m³/h	95m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC88-120-380/520-15000-A/D	AC380/DC520V	520V-650V	15000W	88m³/h	120m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC88-148-380/520-18500-A/D	AC380/DC520V	520V-650V	18500W	88m³/h	148m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC88-175-380/520-22000-A/D	AC380/DC520V	520V-650V	22000W	88m³/h	175m	3"	2m	<900V	≥1.3*PUMP POWER
6HJPC88-200-380/520-26000-A/D	AC380/DC520V	520V-650V	26000W	88m³/h	200m	3"	2.5m	<800V	≥1.3*PUMP POWER
6HJPC88-225-380/520-30000-A/D	AC380/DC520V	520V-650V	30000W	88m³/h	225m	3"	2.5m	<800V	≥1.3*PUMP POWER
6HJPC88-250-380/520-37000-A/D	AC380/DC520V	520V-650V	37000W	88m³/h	250m	3"	2.5m	<800V	≥1.3*PUMP POWER
6/8HJPC135-35-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	135m³/h	35m	4"	2m	<900V	≥1.3*PUMP POWER
6/8HJPC135-75-380/520-15000-A/D	AC380/DC520V	520V-650V	15000W	135m³/h	75m	4"	2m	<900V	≥1.3*PUMP POWER
6/8HJPC135-113-380/520-22000-A/D	AC380/DC520V	520V-650V	22000W	135m³/h	113m	4"	2m	<900V	≥1.3*PUMP POWER
6/8HJPC135-150-380/520-37000-A/D	AC380/DC520V	520V-650V	37000W	135m³/h	150m	4"	2.5m	<800V	≥1.3*PUMP POWER
