4"AC/DC&WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4500 RPM SOLAR PUMP| Irrigation&Off-grid life water supply
group nameDIFFUL&WELLUP AC/DC SOLAR WELL PUMP
-
Min Order1 piece
brand nameDIFFUL
model4HJSC-A/D(HV)
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
-
update timeFri, 05 Dec 2025 21:58:41 GMT
Paramtents
Material Stainless Steel
Type Brushless Solar Pump
Warranty 4HJSC-A/D(HV)-2 year;4HJSC-A/D(HV) -IN 1-year
MOQ 1set
Certificate CE, ISO9001
Packging & Delivery
Min Order1 piece
Briefing
4"AC/DC &Wide voltage brushless solar pump with stainless impeller, MPPT controller, brushless motor.
Brand-new typies of models in 4500RPM series
Brand-new typies of models in 4500RPM series
Detailed
4500 RPM DIFFUL&WELLUP WATER PUMP
Featuring a 4500 RPM permanent magnet synchronous motor,perfectly matched with the output characteristics of solar panels,this series delivers higher head and greater flow.
Whether for agricultural irrigation,livestock water supply,landscape projects,or domestic water use,our products provide anefficient,reliable,and economical green water solution.

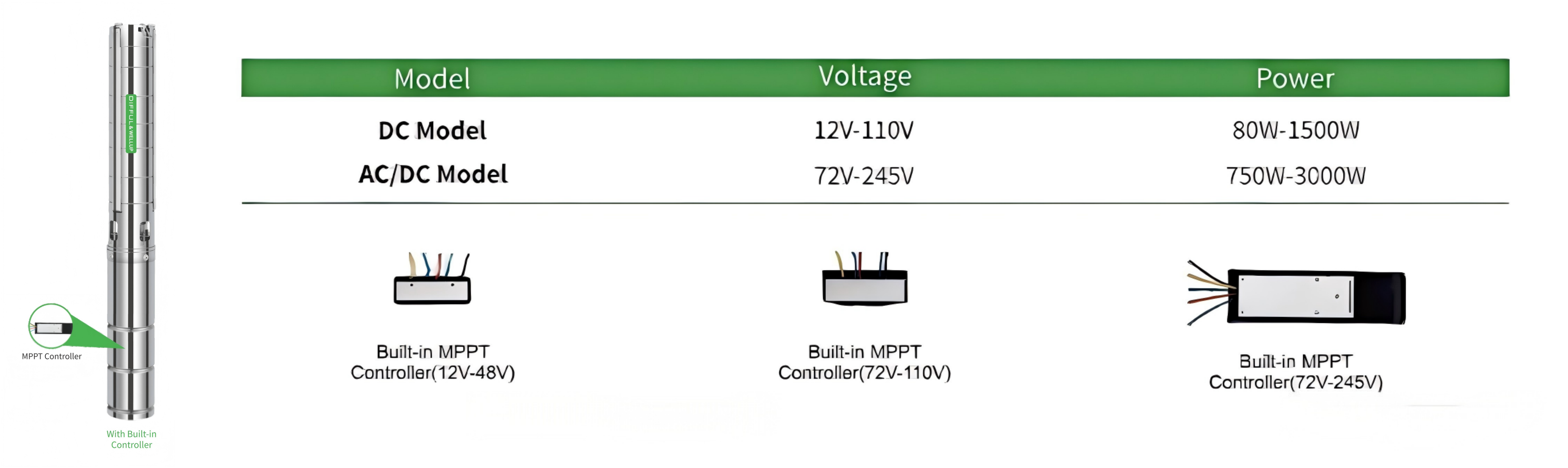

4500RPM SOLAR PUMPWITH BUILT-IN CONTROLLER
A system where the solar-specific controller is integrated within the pump,eliminating the need foradditional purchase and installation of a separate controller.It is simple,convenient,andsignificantly reduces installation difficulty and the probability of errors.
Integrated Design Smart Water Solution
1.All-in-One Design, Easy Installation.
2.Permanent magnet brushless synchronous motor,long working life and high working efficiency.
3.Stainless steel outlet/connector, with better corrosion resistance.
4.Silicon carbide-impregnated graphite mechanical seal, long service life and reliable operation.
5.180°C high temperature resistant copper wire, insulation class F.
6.Cold rolled 600 silicon steel sheet stator and rotor.
7.MPPT function, the solar power utilization rate is higher.
8.Automatically adjust the speed for operation according to the sunlight power.
9.Over-voltage/undervoltage/over-current/phase loss/short circuit/high temperature protection etc.
4"AC/DC&WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER
4"AC/DC &Wide voltage brushless solar pump with S/S impeller - stainless impeller, MPPT controller, brushless motor.
-Farm livestock ,off-grid household water supply and agricultural irrigation.
-Features:stable large flow, wide voltage and high resistance.

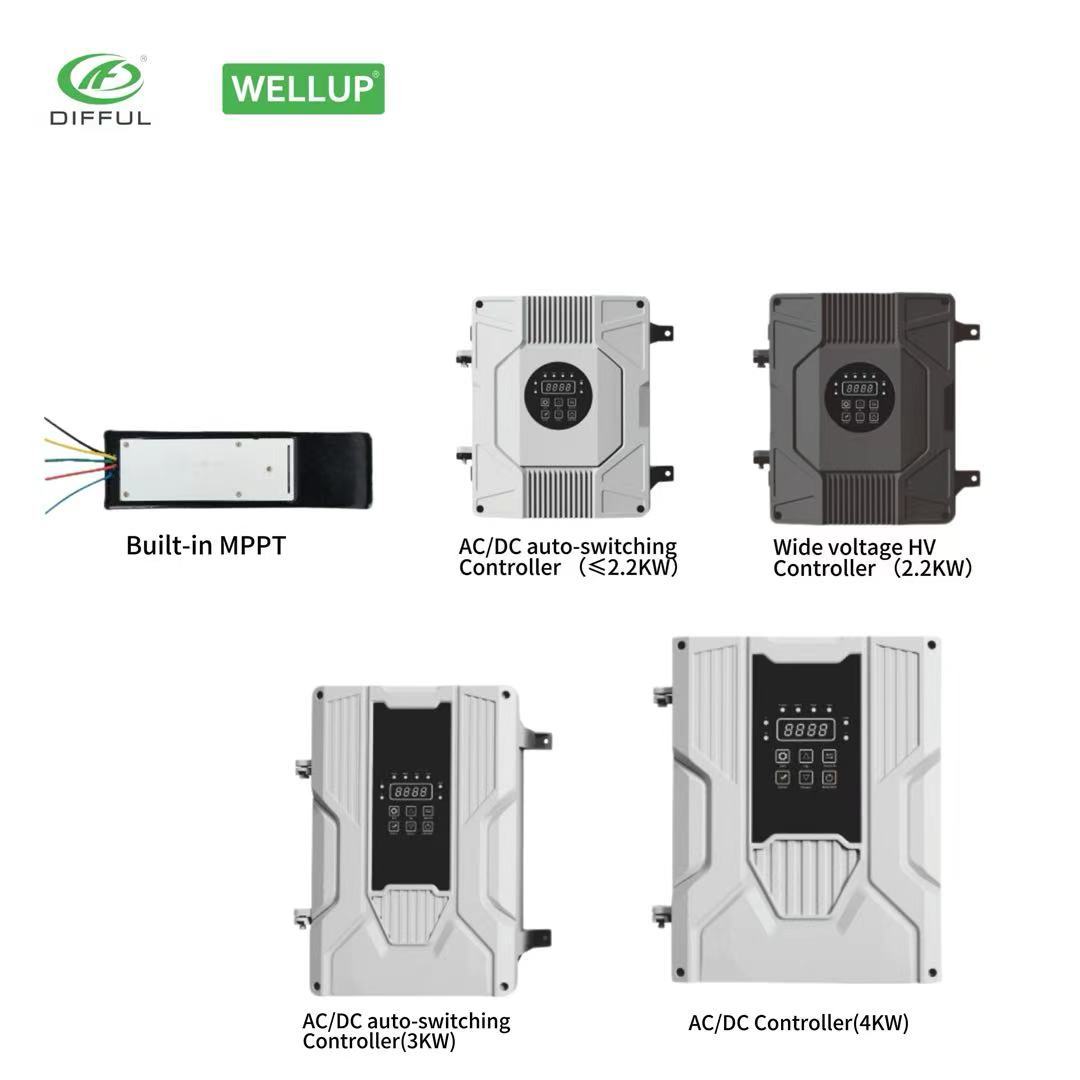

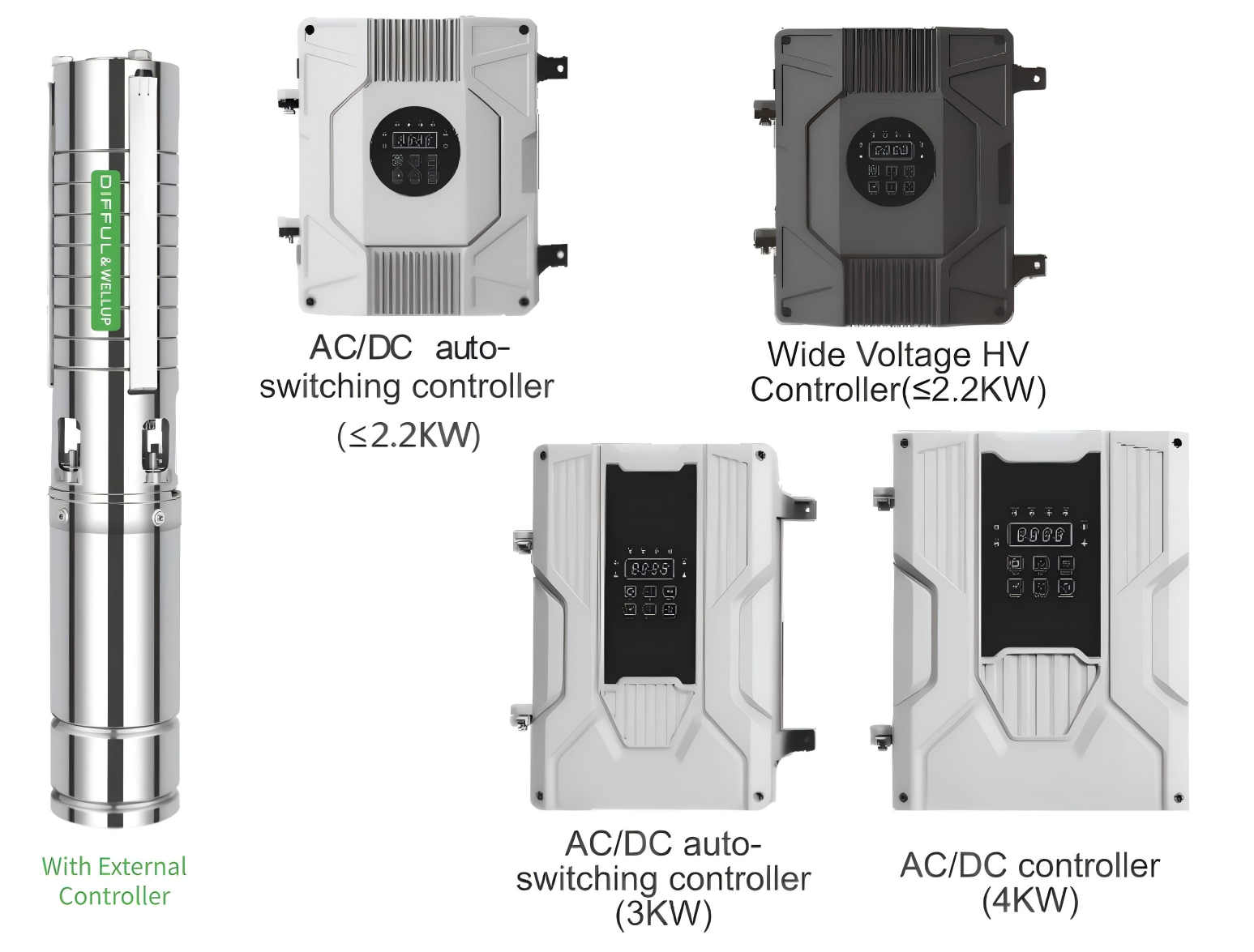

-Brand new typies of models and auto-switching controller of 2.2KW-3KW could selected by you in 4500RPM series.
4"AC/DC &WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER TECHNICAL DATA
| ITEM | Built-in Controller Model | Voltage(AC) | Optimum input voltage(DC) | Power | Max.Flow | Max. Head | Outlet | Cable | Open circuit voltage(VOC) | VOC(-IN Model) |
4HJSC3.5-105-110-750-A/D(HV) | A/D-IN | 85V-280V(/) | 110V-350V | 750W | 3.5m³/h | 105m | 1.25" | 2m | <450V | <430V |
4HJSC3.5-140-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 3.5m³/h | 140m | 1.25" | 2m | <450V | <430V | |
4HJSC4.8-203-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 4.8m³/h | 203m | 1.25" | 2m | <450V | <430V | |
4HJSC6-67-110-750-A/D(HV) | 85V-280V(/) | 110V-350V | 750W | 6m³/h | 67m | 1.25" | 2m | <450V | <430V | |
4HJSC6-101-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 6m³/h | 101m | 1.25" | 2m | <450V | <430V | |
4HJSC6-146-110-1300-A/D(HV) | 85V-280V(/) | 110V-350V | 1300W | 6m³/h | 146m | 1.25" | 2m | <450V | <430V | |
4HJSC9.5-50-110-750-A/D(HV) | 85V-280V(/) | 110V-350V | 750W | 9.5m³/h | 50m | 1.25" | 2m | <450V | <430V | |
| 4HJSC9.5-75-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 9.5m³/h | 75m | 1.25" | 2m | <450V | <430V | |
| 4HJSC9.5-90-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 9.5m³/h | 90m | 1.25" | 2m | <450V | <430V |
| 4HJSC15-45-110-750-A/D(HV) | A/D-IN | 85V-280V(/) | 110V-350V | 750W | 15m³/h | 45m | 2" | 2m | <450V | <430V |
| 4HJSC15-55-110-1100-A/D(HV) | 85V-280V(/) | 110V-350V | 1100W | 15m³/h | 55m | 2" | 2m | <450V | <430V | |
| 4HJSC16-70-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 16m³/h | 70m | 2" | 2m | <450V | <430V | |
| 4HJSC20-48-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 20m³/h | 48m | 2" | 2m | <450V | <430V | |
4HJSC25-26-150-1500-A/D(HV) | 85V-280V(/) | 150V-350V | 1500W | 25m³/h | 26m | 2" | 2m | <450V | <430V | |
4HJSC6-255-200-2200-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 2200W | 6m³/h | 255m | 1.25" | 2m | <450V | <430V | |
4HJSC6-300-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 6m³/h | 300m | 1.25" | 2m | <450V | <430V | |
4HJSC6-360-300-4000-A/D | 120V-280V | 120V-280V | 4000W | 6m³/h | 360m | 1.25" | 2m | <450V | ||
4HJSC9.5-136-200-2200-A/D(HV) | A/D-IN | 85V-280V(/) | 85V-280V(/) | 2200W | 9.5m³/h | 136m | 2" | 2m | <450V | <430V |
4HJSC9.5-220-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 9.5m³/h | 220m | 2" | 2m | <450V | <430V | |
4HJSC9.5-275-300-4000) | 120V-280V | 120V-280V | 4000W | 9.5m³/h | 275m | 2" | 2m | <450V | ||
4HJSC18-95-200-2200-A/D(HV) | A/D-IN | 85V-280V(/) | 85V-280V(/) | 2200W | 18m³/h | 95m | 2" | 2m | <450V | <430V |
4HJSC18-137-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 18m³/h | 137m | 2" | 2m | <450V | <430V | |
4HJSC18-168-300-4000-A/D | 120V-280V | 120V-280V | 4000W | 18m³/h | 168m | 2" | 2m | <450V | ||
4HJSC20-70-200-2200-A/D(HV) | A/D-IN | 85V-280V(/) | 85V-280V(/) | 2200W | 20m³/h | 70m | 2" | 2m | <450V | <430V |
4HJSC20-82-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 20m³/h | 82m | 2" | 2m | <450V | <430V | |
4HJSC22-115-300-4000-A/D | 120V-280V | 120V-280V | 4000W | 22m³/h | 115m | 2" | 2m | <450V | ||
4HJSC30-36-200-2200-A/D(HV) | A/D-IN | 85V-280V(/) | 85V-280V(/) | 2200W | 30m³/h | 36m | 2" | 2m | <450V | <430V |
4HJSC30-52-245-3000-A/D(HV) | 85V-280V(/) | 85V-280V(/) | 3000W | 30m³/h | 52m | 2" | 2m | <450V | <430V | |
4HJSC30-74-300-4000-A/D | 120V-280V | 120V-280V | 4000W | 30m³/h | 74m | 2" | 2m | <450V |
4"AC/DC &WIDE VOLTAGE BRUSHLESS SOLAR PUMP WITH S/S IMPELLER Performance Curve
HOW TO CHOOSE A PUMP
Confirm you technical requirement
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
Compare your requirement with our product
Calculate "Actual Pump Head" and find the proper pump with the right head.
Then you can choose the pump you want according to different flow and prices.
