6Inch/8Inch AC/DC BRUSHLESS SOLAR PUMP WITH S/S IMPELLER | 4000 RPM DIFFUL ＆WELLUP WATER PUMP | Household Water Supply

group nameDIFFUL&WELLUP AC/DC SOLAR WELL PUMP
Min Order1 piece
brand nameDIFFUL
model6HJSC-A/D
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
update timeFri, 05 Dec 2025 21:07:01 GMT

contact supplier

Paramtents

type brushless solar water pump
material Stainless steel impeller
Warranty 6HJSC/8HJSC-A/D-2-year
Trademark/Brand DIFFUL

Packging & Delivery

Min Order1 piece

Briefing

6/8Inch AC/DC Brushless solar pump with stainless steel impeller
The max head range:86m-467m
The max flow range:36m³/h-95m³/h

Detailed

INTRODUCTION

WIRING INSTRUCTIONS

4500 RPM DIFFUL&WELLUP WATER PUMP

Featuring a 4500 RPM permanent magnet synchronous motor,perfectly matched with the output characteristics of solar panels,this series delivers higher head and greater flow.

Whether for agricultural irrigation,livestock water supply,landscape projects,or domestic water use,our products provide anefficient,reliable,and economical green water solution.

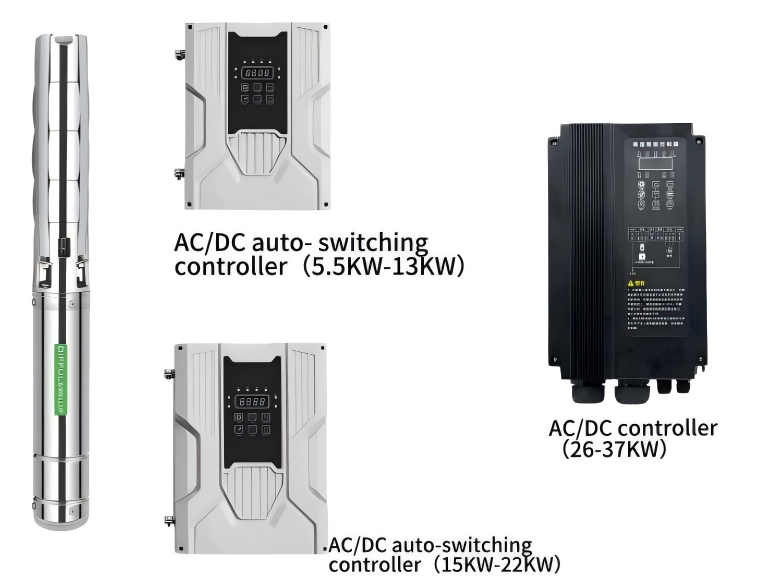

6/8"AC/DC BRUSHLESS SOLAR WATER PUMP WITH S/S IMPELLER

- 6Inch AC/DC brushless solar water pump - Stainless impeller, MPPT controller, brushless motor,aims for farm livestock Off-grid household water supply irrigation.

- Features: Cost-effective,large flow and the preferred model for most customers.

- Hot-selling market: Southeast Asia, Middle East, South America, Africa,etc.

6/8"AC/DC BRUSHLESS SOLAR WATER PUMP WITH PLASTIC IMPELLER

Technical Data

Model	Voltage	Optimum input voltage(DC)	Power	Max.Flow	Max Head	Outlet	Cable	Open circuit voltage (VOC)	Solar panel Power
6HJSC36-108-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	36m³/h	108m	3"	2m	<900V	≥1.3*PUMP POWER
6HJSC36-145-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	36m³/h	145m	3"	2m	<900V	≥1.3*PUMP POWER
6HJSC36-175-380/520-9200-A/D	AC380/DC520V	520V-650V	9200W	36m³/h	175m	3"	2m	<900V	≥1.3*PUMP POWER
6HJSC36-210-380/520-11000-A/D	AC380/DC520V	520V-650V	11000W	36m³/h	210m	3"	2m	<900V	≥1.3*PUMP POWER
6HJSC36-270-380/520-15000-A/D	AC380/DC520V	520V-650V	15000W	36m³/h	270m	3"	2m	<900V	≥1.3*PUMP POWER
6HJSC36-310-380/520-18500-A/D	AC380/DC520V	520V-650V	18500W	36m³/h	310m	3"	2m	<900V	≥1.3*PUMP POWER
6HJSC46-86-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	46m³/h	86m	3"	2m	<900V	≥1.3*PUMP POWER
6HJSC46-112-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	46m³/h	112m	3"	2m	<900V	≥1.3*PUMP POWER
6HJSC46-135-380/520-9200-A/D	AC380/DC520V	520V-650V	9200W	46m³/h	135m	3"	2m	<900V	≥1.3*PUMP POWER
6HJSC46-160-380/520-11000-A/D	AC380/DC520V	520V-650V	11000W	46m³/h	160m	3"	2m	<900V	≥1.3*PUMP POWER
6HJSC46-204-380/520-15000-A/D	AC380/DC520V	520V-650V	15000W	46m³/h	204m	3"	2m	<900V	≥1.3*PUMP POWER
6HJSC46-252-380/520-18500-A/D	AC380/DC520V	520V-650V	18500W	46m³/h	252m	3"	2m	<900V	≥1.3*PUMP POWER
6HJSC46-350-380/520-26000-A/D	AC380/DC520V	520V-650V	26000W	46m³/h	350m	3"	2.5m	<800V	≥1.3*PUMP POWER
6HJSC46-398-380/520-30000-A/D	AC380/DC520V	520V-650V	30000W	22m³/h	398m	3"	2.5m	<800V	≥1.3*PUMP POWER
6HJSC46-467-380/520-37000-A/D	AC380/DC520V	520V-650V	37000W	46m³/h	467m	3"	2.5m	<800V	≥1.3*PUMP POWER
6HJSC65-63-380/520-5500-A/D	AC380/DC520V	520V-650V	5500W	65m³/h	63m	4"	2m	<900V	≥1.3*PUMP POWER
6HJSC65-85-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	65m³/h	85m	4"	2m	<900V	≥1.3*PUMP POWER
6HJSC65-100-380/520-9200-A/D	AC380/DC520V	520V-650V	9200W	65m³/h	65m	4"	2m	<900V	≥1.3*PUMP POWER
6HJSC65-120-380/520-11000-A/D	AC380/DC520V	520V-650V	11000W	65m³/h	120m	4"	2m	<900V	≥1.3*PUMP POWER
6HJSC65-160-380/520-15000-A/D	AC380/DC520V	520V-650V	15000W	65m³/h	160m	4"	2m	<900V	≥1.3*PUMP POWER
6HJSC65-200-380/520-18500-A/D	AC380/DC520V	520V-650V	18500W	65m³/h	200m	4"	2m	<900V	≥1.3*PUMP POWER
6HJSC65-237-380/520-26000-A/D	AC380/DC520V	520V-650V	26000W	65m³/h	237m	4"	2.5m	<800V	≥1.3*PUMP POWER
6HJSC65-280-380/520-30000-A/D	AC380/DC520V	520V-650V	30000W	65m³/h	280m	4"	2.5m	<800V	≥1.3*PUMP POWER
6HJSC65-324-380/520-37000-A/D	AC380/DC520V	520V-650V	37000W	65m³/h	324m	4"	2.5m	<800V	≥1.3*PUMP POWER
6HJSC95-66-380/520-7500-A/D	AC380/DC520V	520V-650V	7500W	95m³/h	66m	4"	2m	<900V	≥1.3*PUMP POWER
6HJSC95-88-380/520-11000-A/D	AC380/DC520V	520V-650V	11000W	95m³/h	88m	4"	2m	<900V	≥1.3*PUMP POWER
6HJSC95-126-380/520-15000-A/D	AC380/DC520V	520V-650V	15000W	95m³/h	126m	4"	2m	<900V	≥1.3*PUMP POWER
6HJSC95-153-380/520-18500-A/D	AC380/DC520V	520V-650V	18500W	95m³/h	153m	4"	2m	<900V	≥1.3*PUMP POWER
6HJSC95-180-380/520-22000-A/D	AC380/DC520V	520V-650V	22000W	95m³/h	180m	4"	2m	<900V	≥1.3*PUMP POWER
6HJSC95-195-380/520-26000-A/D	AC380/DC520V	520V-650V	26000W	95m³/h	195m	4"	2.5m	<800V	≥1.3*PUMP POWER
6HJSC95-210-380/520-30000-A/D	AC380/DC520V	520V-650V	30000W	95m³/h	210m	4"	2.5m	<800V	≥1.3*PUMP POWER
6HJSC95-237-380/520-37000-A/D	AC380/DC520V	520V-650V	37000W	95m³/h	237m	4"	2.5m	<800V	≥1.3*PUMP POWER
6HJSC110-75-380/520-15000-A/D	AC380/DC520V	520V-650V	15000W	110m³/h	75m	4"	2m	<900V	≥1.3*PUMP POWER
6HJSC110-105-380/520-18500-A/D	AC380/DC520V	520V-650V	18500W	110m³/h	105m	4"	2m	<900V	≥1.3*PUMP POWER
6HJSC110-130-380/520-22000-A/D	AC380/DC520V	520V-650V	22000W	110m³/h	130m	4"	2m	<900V	≥1.3*PUMP POWER
6HJSC110-168-380/520-26000-A/D	AC380/DC520V	520V-650V	26000W	110m³/h	168m	4"	2.5m	<800V	≥1.3*PUMP POWER
6HJSC110-200-380/520-30000-A/D	AC380/DC520V	520V-650V	30000W	110m³/h	200m	4"	2.5m	<800V	≥1.3*PUMP POWER
6HJSC110-225-380/520-37000-A/D	AC380/DC520V	520V-650V	37000W	110m³/h	225m	4"	2.5m	<800V	≥1.3*PUMP POWER
6/8HJSC150-37-380/520-11000-A/D	AC380/DC520V	520V-650V	11000W	150m³/h	37m	4"	2m	<900V	≥1.3*PUMP POWER
6/8HJSC150-77-380/520-22000-A/D	AC380/DC520V	520V-650V	22000W	150m³/h	77m	4"	2m	<900V	≥1.3*PUMP POWER
6/8HJSC150-125-380/520-30000-A/D	AC380/DC520V	520V-650V	30000W	150m³/h	125m	4"	2.5m	<800V	≥1.3*PUMP POWER
